Warmup StickMat Heated Floor Mat - 120 VAC

The StickyMat floor heating mats are comprised of a low-profile twin conductor cable applied to a sturdy fiberglass mesh. The mats are self-adhesive on both sides and allow freedom of design and speed of installation thanks to the pre-spaced format of the heating cable.

The Mat System is ideal for installations within regularly shaped areas, where the 20 or 36 inch wide mats can be quickly rolled out across the floor in parallel runs. If you intend on using vinyl, carpet, timber, tiles or any other underfloor heating compatible floor finish, the system can (and should, in some cases like for carpet) be embedded within a self-leveling compound to provide a flat and level floor surface to lay over.

The NADWM mats have been specifically designed to provide Primary Heating under a variety of floors. The cable has been preassembled onto the mat to allow for an easy ’tape-down’ installation. At 132°F peak cable temperature, the NADWM system heats up fast and has been tested and proven to provide 70°F ambient temperature at 4ft in height in 1 hour. The system is fully grounded with a 10ft lead cable for connection to power.

Using the 4iE® Programmable Thermostat, the product can be programmed to suit the user’s needs. The 4iE® monitors the systems’ power usage and will optimize comfort and consumption costs. The 4iE® controller combines the efficiency of built in floor and room sensors.

FEATURES:

• Operating voltage: 120V
• Width: 20 or 36 inch
• Mat thickness: 1/8”
• Inner / Outer Insulation: Advanced fluoropolymer (ETFE)
• Output rating: 14W/sq ft
• Lifetime limited warranty

model description usually ships price QTY
DWM-09-120 Warmup StickyMat. 120V, 126 Watt, 3 ft x 3 ft (WxL), 1.05 amps. Covers 9 sq. ft. 2-3 Days $204.30
DWM-15-120 Warmup StickyMat. 120V, 210 Watt, 3 ftx 5 ft (WxL), 1.75 amps. Covers 15 sq. ft. 2-3 Days $262.20
DWM-18-120 Warmup StickyMat. 120V, 252 Watt, 3 ft x 6 ft (WxL), 2.10 amps. Covers 18 sq. ft. 2-3 Days $311.60
DWM-24-120 Warmup StickyMat. 120V, 336 Watt, 3 ft x 8 ft (WxL), 2.80 amps. Covers 24 sq. ft. 2-3 Days $362.90
DWM-30-120 Warmup StickyMat. 120V, 420 Watt, 3 ft x 10 ft (WxL), 3.50 amps. Covers 30 sq. ft. 2-3 Days $415.20
DWM-120-140 Warmup StickyMat. 120V, 140 Watt, 20 inch x 6 ft (WxL), 1.2 amps. Covers 10 sq. ft. 1 Day. In-stock $215.70
DWM-120-210 Warmup StickyMat. 120V, 210 Watt, 20 inch x 9 ft (WxL), 1.8 amps. Covers 15 sq. ft. 1 Day. In-stock $261.30
DWM-120-280 Warmup StickyMat. 120V, 280 Watt, 20 inch x 12 ft (WxL), 2.3 amps. Covers 20 sq. ft. 2-3 Days $318.30
DWM-120-350 Warmup StickyMat. 120V, 350 Watt, 20 inch x 15 ft (WxL), 2.9 amps. Covers 25 sq. ft. 1 Day. In-stock $368.60
DWM-120-420 Warmup StickyMat. 120V, 420 Watt, 20 inch x 18 ft (WxL), 3.5 amps. Covers 30 sq. ft. 1 Day. In-stock $415.20
DWM-120-560 Warmup StickyMat. 120V, 560 Watt, 20 inch x 24 ft (WxL), 4.7 amps. Covers 40 sq. ft. 1 Day. In-stock $485.50
DWM-120-700 Warmup StickyMat. 120V, 700 Watt, 20 inch x 30 ft (WxL), 5.8 amps. Covers 50 sq. ft. 1 Day. In-stock $585.20
DWM-120-840 Warmup StickyMat. 120V, 840 Watt, 20 inch x 37 ft (WxL), 7.0 amps. Covers 60 sq. ft. 1 Day. In-stock $676.40
DWM-120-1050 Warmup StickyMat. 120V, 1050 Watt, 20 inch x 46 ft (WxL), 8.7 amps. Covers 75 sq. ft. 2-3 Days $823.70
DWM-120-1260 Warmup StickyMat. 120V, 1260 Watt, 20 inch x 55 ft (WxL), 10.5 amps. Covers 90 sq. ft. 2-3 Days $964.30
DWM-120-1540 Warmup StickyMat. 120V, 1540 Watt, 20 inch x 67 ft (WxL), 12.8 amps. Covers 110 sq. ft. 2-3 Days $1100.10
DWM-120-1620 Warmup StickyMat. 120V, 1620 Watt, 20 inch x 72 ft (WxL), 13.5 amps. Covers 120 sq. ft. 2-3 Days $1183.70
6iE-04-CW Warmup 6iE Portrait Smart WiFi Thermostat. 120V/240V with sensor probe and instructions. 15A. White with GFCI. 2-3 Days $283.10
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

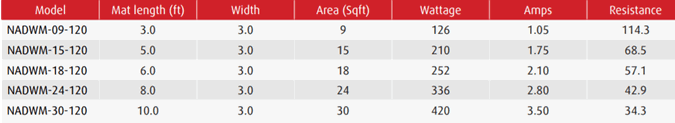

warmup stickymat sizing

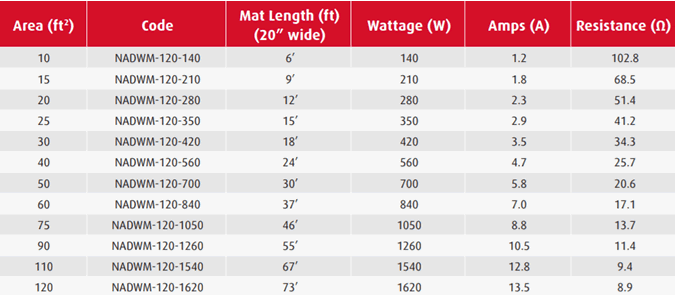

warmup stickymat large sizing

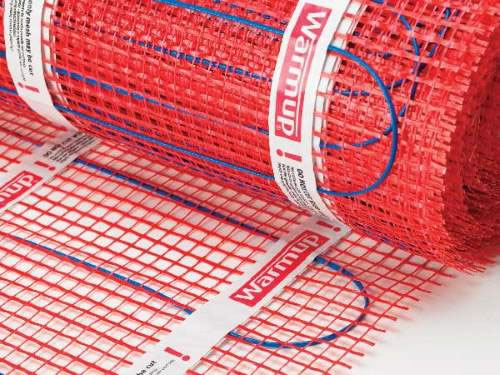

warmup stickymat roll

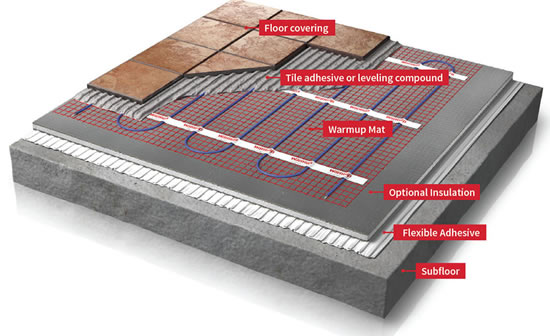

warmup stickymat features

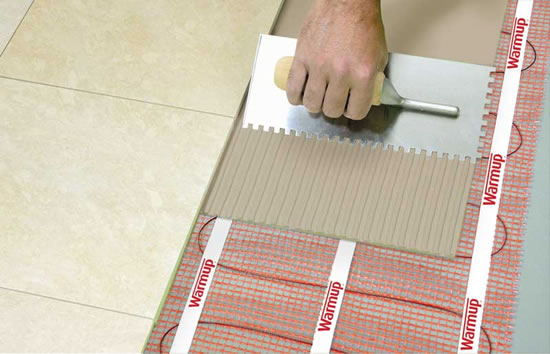

warmup stickymat under tile

warmup stickymat in a bathroom

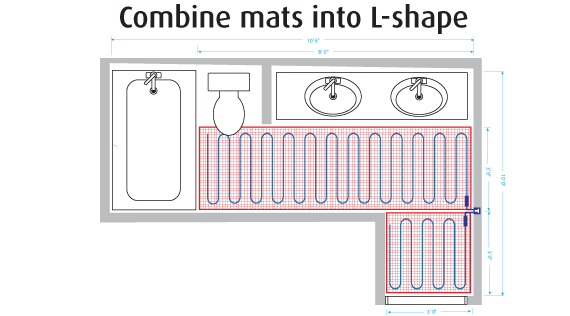

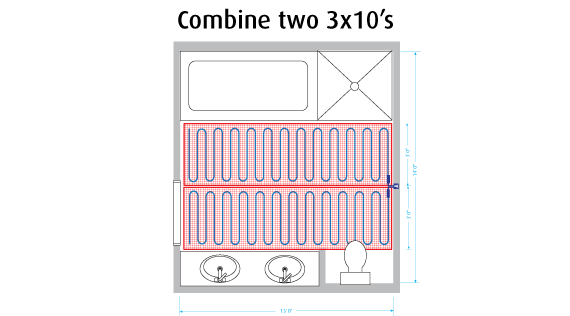

warmup stickymat sample layout

warmup 4iE thermostat
