Warmup DCM-PRO Uncoupled Floor Heating System - 120 VAC

Warmup DCM-PRO Uncoupled Floor Heating System - 120 VAC

The Warmup DCM-PRO Cable is a custom designed cable compatible with all uncoupling membranes. It can be installed at 2, 3 or 4 pegs. The cable itself allows primary heating thanks to the twin-core ETFE cable, for highest output. It is guaranteed 30-years. Even better results when used with Warmup 4iE® Smart Thermostat.

The DCM-PRO Heating Cable is durable and flexible. It’s ETFE inner jacket allows for high heat output while it’s PVC outer sleeve protects for a smooth installation. The DCM-PRO Heating cable is suitable for use with both Membrane options.

The DCM-PRO Membrane’s innovative uncoupling design results in significant protection for tiled flooring by creating a new layer between the subfloor and the floor finish. The Membrane is available in two options, fleece-backed or peel-and-stick, offering great versatility for your installation preference. Both membranes can be used with the DCM-PRO Heating Cable for efficient underfloor heating.

CABLE FEATURES:

• Operating voltage - 120V
• Thickness - 3/16 inch
• Output - Approx. 4W/lin foot (varies with spacing)
• Construction - Multi-stranded, dual wire
• Cold lead - 10ft long, 2 core braided
• 30-year manufacturer warranty on DCM-PRO Cable

model description usually ships price QTY
DCM-120-65 Warmup DCM Pro electric heating cable. 65 Watts, 120 Volts, 5 sq. ft., 17 ft length. 2-3 Days $142.50
DCM-120-130 Warmup DCM Pro electric heating cable. 130 Watts, 120 Volts, 10 sq. ft., 34 ft length. 2-3 Days $167.20
DCM-120-195 Warmup DCM Pro electric heating cable. 195 Watts, 120 Volts, 15 sq. ft., 50 ft length. 1 Day. In-stock $202.40
DCM-120-260 Warmup DCM Pro electric heating cable. 260 Watts, 120 Volts, 20 sq. ft., 67 ft length. 1 Day. In-stock $233.70
DCM-120-325 Warmup DCM Pro electric heating cable. 325 Watts, 120 Volts, 25 sq. ft., 84 ft length. 1 Day. In-stock $265.10
DCM-120-390 Warmup DCM Pro electric heating cable. 390 Watts, 120 Volts, 30 sq. ft., 100 ft length. 1 Day. In-stock $289.80
DCM-120-525 Warmup DCM Pro electric heating cable. 525 Watts, 120 Volts, 40 sq. ft., 133 ft length. 1 Day. In-stock $347.70
DCM-120-655 Warmup DCM Pro electric heating cable. 655 Watts, 120 Volts, 50 sq. ft., 166 ft length. 1 Day. In-stock $388.60
DCM-120-785 Warmup DCM Pro electric heating cable. 785 Watts, 120 Volts, 60 sq. ft., 200 ft length. 1 Day. In-stock $424.70
DCM-120-920 Warmup DCM Pro electric heating cable. 920 Watts, 120 Volts, 70 sq. ft., 233 ft length. 1 Day. In-stock $466.50
DCM-120-1050 Warmup DCM Pro electric heating cable. 1050 Watts, 120 Volts, 80 sq. ft., 266 ft length. 2-3 Days $516.80
DCM-120-1180 Warmup DCM Pro electric heating cable. 1180 Watts, 120 Volts, 90 sq. ft., 299 ft length. 2-3 Days $558.60
DCM-120-1315 Warmup DCM Pro electric heating cable. 1315 Watts, 120 Volts, 100 sq. ft., 332 ft length. 2-3 Days $590.00
DCM-120-1445 Warmup DCM Pro electric heating cable. 1445 Watts, 120 Volts, 110 sq. ft., 365 ft length. 2-3 Days $646.00
DCM-120-1575 Warmup DCM Pro electric heating cable. 1575 Watts, 120 Volts, 120 sq. ft., 398 ft length. 2-3 Days $684.00
6iE-04-CW Warmup 6iE Portrait Smart WiFi Thermostat. 120V/240V with sensor probe and instructions. 15A. White with GFCI. 2-3 Days $283.10
DCM-MW-80 Warmup fleece backed uncoupling membrane for NADCM cable. Box of 10 sheets (each sheet 30x39 inches). 80 sq. ft. 1 Day. In-stock $216.60
DCM-MW-150 Warmup fleece backed uncoupling membrane for NADCM cable. Roll of 150 sq. ft. (39 inches x 47 feet). 1 Day. In-stock $378.10
DCM-PSW-80 Warmup DCM Pro peel-and-stick membrane. Box of 10 sheets (each sheet 30x39 inches). 80 sq. ft. 1 Day. In-stock $242.30
DCM-PSW-150 Warmup DCM Pro peel-and-stick membrane. Roll of 150 sq. ft. (39 inches x 47 feet). 1 Day. In-stock $388.60
DCM-PLG-12 Warmup plastic fixing strip for NADCM cable system. Strips are 12 inch long, 3/16 inch thick. Box of 50 strips. 1 Day. In-stock $43.20
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

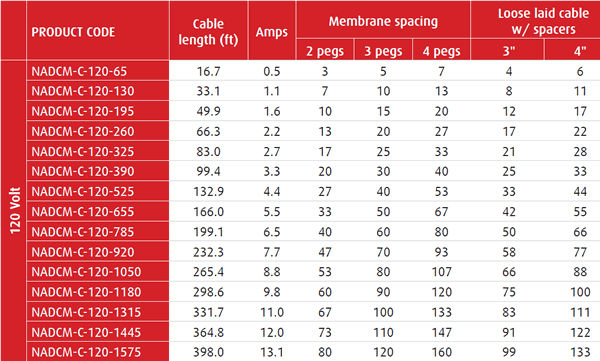

warmup DCM-PRO wire sizing



warmup DCM-PRO wire bundle

warmup DCM-PRO wire on membrane

warmup DCM-PRO membrane closeup

warmup 4iE thermostat

Items marked "In-Stock" will ship from Oregon. All other items ship from Warmup in CT.
