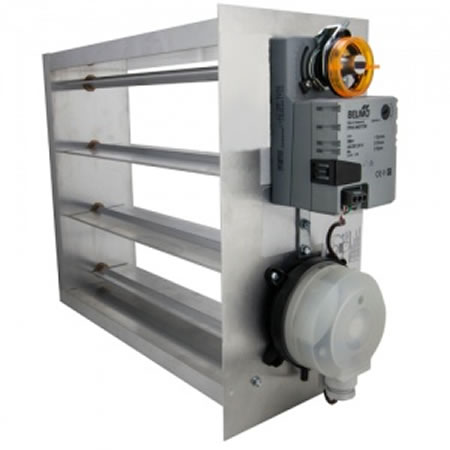

iO Controls EB Rectangular Electronic Bypass Dampers

iO Controls EB Rectangular Electronic Bypass Dampers

EB Series rectangular electronic bypass dampers are used to automatically bypass excess air when increases in duct static pressure occur due to closing of zone dampers. The EB series dampers utilize a floating-type motorized actuator along with the iO-SPC-800 static pressure control. The iO-SPC-800 has a fully calibrated setpoint dial for easy set-up and adjustment. The iO-SPC-800 maintains the system static pressure by modulating the bypass damper. EB series electronic bypass dampers are recommended for systems from 0.08" WC up to 1.20" WC of static pressure.

Features and Benefits:
• Easy adjustment
• Factory-calibrated
• Installation flexibility
• Reduces system noise
• 5 year warranty

model description usually ships price QTY
EB-0808 iO HVAC Controls 8x8" heavy duty motorized bypass damper. 3-4 Days $327.10
EB-1008 iO HVAC Controls 10x8" heavy duty motorized bypass damper. 3-4 Days $330.30
EB-1008-BM iO HVAC Controls 10x8" heavy duty motorized bypass damper. Bottom mounted. 3-4 Days $330.30
EB-1010 iO HVAC Controls 10x10" heavy duty motorized bypass damper. 3-4 Days $337.33
EB-1208 iO HVAC Controls 12x8" heavy duty motorized bypass damper. 3-4 Days $331.91
EB-1208-BM iO HVAC Controls 12x8" heavy duty motorized bypass damper. Bottom mounted. 3-4 Days $331.91
EB-1210 iO HVAC Controls 12x10" heavy duty motorized bypass damper. 3-4 Days $342.88
EB-1210-BM iO HVAC Controls 12x10" heavy duty motorized bypass damper. Bottom mounted. 3-4 Days $342.88
EB-1212 iO HVAC Controls 12x12" heavy duty motorized bypass damper. 3-4 Days $349.12
EB-1408 iO HVAC Controls 14x8" heavy duty motorized bypass damper. 3-4 Days $337.37
EB-1410 iO HVAC Controls 14x10" heavy duty motorized bypass damper. 3-4 Days $346.79
EB-1410-BM iO HVAC Controls 14x10" heavy duty motorized bypass damper. Bottom mounted. 3-4 Days $346.79
EB-1412 iO HVAC Controls 14x12" heavy duty motorized bypass damper. 3-4 Days $350.82
EB-1414 iO HVAC Controls 14x14" heavy duty motorized bypass damper. 3-4 Days $358.62
EB-1608 iO HVAC Controls 16x8" heavy duty motorized bypass damper. 3-4 Days $342.88
EB-1608-BM iO HVAC Controls 16x8" heavy duty motorized bypass damper. Bottom mounted. 3-4 Days $342.88
EB-1610 iO HVAC Controls 16x10" heavy duty motorized bypass damper. 3-4 Days $349.20
EB-1612 iO HVAC Controls 16x12" heavy duty motorized bypass damper. 3-4 Days $360.17
EB-1614 iO HVAC Controls 16x14" heavy duty motorized bypass damper. 3-4 Days $368.03
EB-1616 iO HVAC Controls 16x16" heavy duty motorized bypass damper. 3-4 Days $371.80
EB-1808 iO HVAC Controls 18x8" heavy duty motorized bypass damper. 3-4 Days $347.57
EB-1810 iO HVAC Controls 18x10" heavy duty motorized bypass damper. 3-4 Days $358.58
EB-1812 iO HVAC Controls 18x12" heavy duty motorized bypass damper. 3-4 Days $366.47
EB-1812-BM iO HVAC Controls 18x12" heavy duty motorized bypass damper. Bottom mounted. 3-4 Days $366.47
EB-1814 iO HVAC Controls 18x14" heavy duty motorized bypass damper. 3-4 Days $375.90
EB-1816 iO HVAC Controls 18x16" heavy duty motorized bypass damper. 3-4 Days $387.32
EB-1818 iO HVAC Controls 18x18" heavy duty motorized bypass damper. 3-4 Days $407.68
EB-2006 iO HVAC Controls 20x6" heavy duty motorized bypass damper. 3-4 Days $355.40
EB-2008 iO HVAC Controls 20x8" heavy duty motorized bypass damper. 3-4 Days $356.89
EB-2010 iO HVAC Controls 20x10" heavy duty motorized bypass damper. 3-4 Days $366.38
EB-2012 iO HVAC Controls 20x12" heavy duty motorized bypass damper. 3-4 Days $371.17
EB-2014 iO HVAC Controls 20x14" heavy duty motorized bypass damper. 3-4 Days $375.97
EB-2016 iO HVAC Controls 20x16" heavy duty motorized bypass damper. 3-4 Days $390.58
EB-2018 iO HVAC Controls 20x18" heavy duty motorized bypass damper. 3-4 Days $398.45
EB-2020 iO HVAC Controls 20x20" heavy duty motorized bypass damper. 3-4 Days $403.18
EB-2206 iO HVAC Controls 22x6" heavy duty motorized bypass damper. 3-4 Days $339.94
EB-2208 iO HVAC Controls 22x8" heavy duty motorized bypass damper. 3-4 Days $355.46
EB-2210 iO HVAC Controls 22x10" heavy duty motorized bypass damper. 3-4 Days $377.32
EB-2212 iO HVAC Controls 22x12" heavy duty motorized bypass damper. 3-4 Days $380.58
EB-2214 iO HVAC Controls 22x14" heavy duty motorized bypass damper. 3-4 Days $382.24
EB-2216 iO HVAC Controls 22x16" heavy duty motorized bypass damper. 3-4 Days $400.03
EB-2218 iO HVAC Controls 22x18" heavy duty motorized bypass damper. 3-4 Days $415.71
EB-2220 iO HVAC Controls 22x20" heavy duty motorized bypass damper. 3-4 Days $425.18
EB-2222 iO HVAC Controls 22x22" heavy duty motorized bypass damper. 3-4 Days $465.84
EB-2408 iO HVAC Controls 24x8" heavy duty motorized bypass damper. 3-4 Days $366.36
EB-2410 iO HVAC Controls 24x10" heavy duty motorized bypass damper. 3-4 Days $380.47
EB-2412 iO HVAC Controls 24x12" heavy duty motorized bypass damper. 3-4 Days $383.76
EB-2414 iO HVAC Controls 24x14" heavy duty motorized bypass damper. 3-4 Days $394.81
EB-2416 iO HVAC Controls 24x16" heavy duty motorized bypass damper. 3-4 Days $411.03
EB-2418 iO HVAC Controls 24x18" heavy duty motorized bypass damper. 3-4 Days $426.69
EB-2420 iO HVAC Controls 24x20" heavy duty motorized bypass damper. 3-4 Days $497.07
EB-2422 iO HVAC Controls 24x22" heavy duty motorized bypass damper. 3-4 Days $501.90
EB-2424 iO HVAC Controls 24x24" heavy duty motorized bypass damper. 3-4 Days $497.35
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

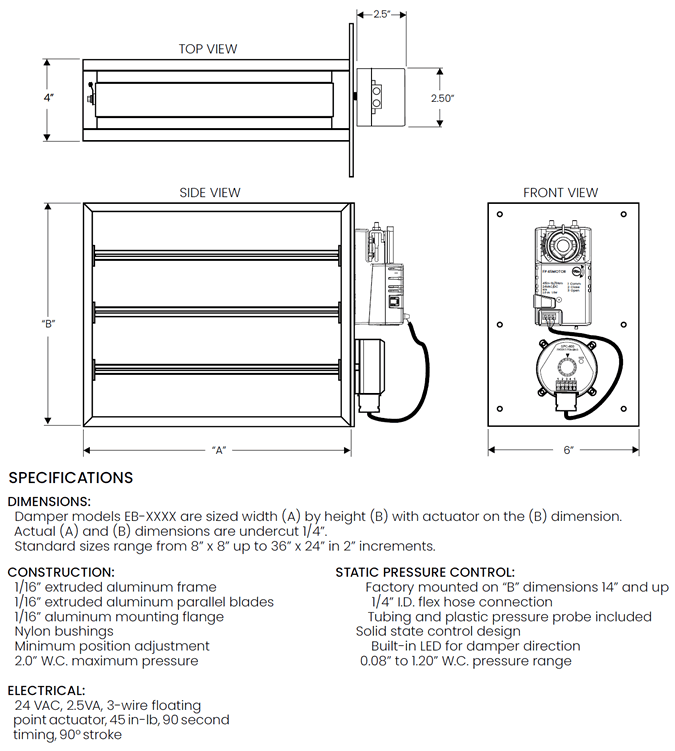

iO HVAC Controls EB Damper Specs

iO HVAC Controls EB Dampers
