iO Controls ZP-ESP Zone Control Panels With Pressure Control

iO Controls ZP-ESP Zone Control Panels With Pressure Control

These forced air zoning systems represent the most contractor-friendly solution today.  Panels can handle 2 to 6 zones with varying heating and cooling stages.  See each zone panel description for the number of zones and stages available.

All ESP zone panels are equipped with electronic static pressure control technology. As zone dampers open and close, the static pressure sensor continuously monitors the system static pressure. If the static pressure goes above the static pressure setpoint, the panel will open the non-calling zones just enough to relieve the excess pressure and bring the system below the desired setpoint. This eliminates the need for a bypass damper. The static pressure sensor is included.

Features:
• Auto changeover
• First call priority with time share
• LED status indication
• Independent fan control by zone
• Short cycle protection
• 2 to 6 zones depending on panel
• 10-year warranty

model description usually ships price QTY
ZP2-HC-ESP iO HVAC Controls 2-zone, single stage (1H/1C) zone panel with ESP electronic static pressure control. No bypass required. 3-4 Days $300.81
ZP2-HC-ESP-KIT iO HVAC Controls 2-zone, single stage (1H/1C) zone panel with ESP electronic static pressure control, transformer and duct temp sensor. No bypass required. 3-4 Days $334.17
ZP3-HCMS-ESP iO HVAC Controls 3-zone, multi stage (2H/2C) zone panel with ESP electronic static pressure control. No bypass required. 3-4 Days $341.95
ZP3-HCMS-ESP-KIT iO HVAC Controls 3-zone, multi stage (2H/2C) zone panel with ESP electronic static pressure control, transformer and duct temp sensor. No bypass required. 3-4 Days $375.50
ZP3-HPS-ESP iO HVAC Controls 3-zone, multi stage (3H/2C) zone panel with ESP electronic static pressure control. No bypass required. 3-4 Days $340.19
ZP3-HPS-ESP-KIT iO HVAC Controls 3-zone, multi stage (3H/2C) zone panel with ESP electronic static pressure control, transformer and duct temp sensor. No bypass required. 3-4 Days $373.98
ZP4-ESP iO HVAC Controls 4-zone, multi stage (3H/2C) zone panel with ESP electronic static pressure control. No bypass required. 3-4 Days $506.88
ZP4-ESP-KIT iO HVAC Controls 4-zone, multi stage (3H/2C) zone panel with ESP electronic static pressure control, transformer and duct temp sensor. No bypass required. 3-4 Days $552.93
ZP6-ESP iO HVAC Controls 6-zone, multi stage (4H/2C) zone panel with ESP electronic static pressure control. No bypass required. 3-4 Days $675.68
ZP6-ESP-KIT iO HVAC Controls 6-zone, multi stage (4H/2C) zone panel with ESP electronic static pressure control, transformer and duct temp sensor. No bypass required. 3-4 Days $720.72
ZP6-ESP-EP iO HVAC Controls 3-zone expansion panel for the ZP6-ESP zone panel. 3-4 Days $323.81
ZPA-OTS iO HVAC Controls outdoor temperature sensor for the ZP3-HPS-ESP, ZP6 & ZP6-ESP. 3-4 Days $29.94
ZPA-DTS iO HVAC Controls duct temperature sensor. Used to measure discharge and or return air temperature. 3-4 Days $19.04
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

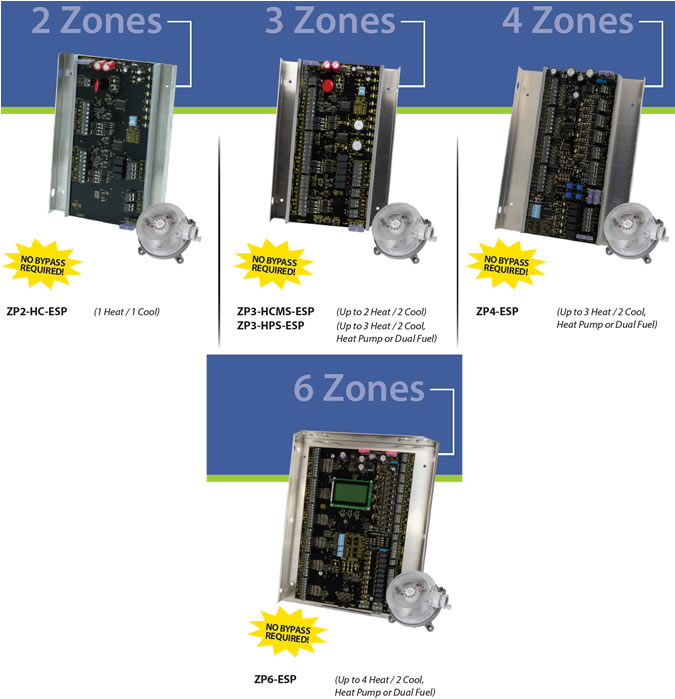

iO HVAC Controls ZP Zone Panels

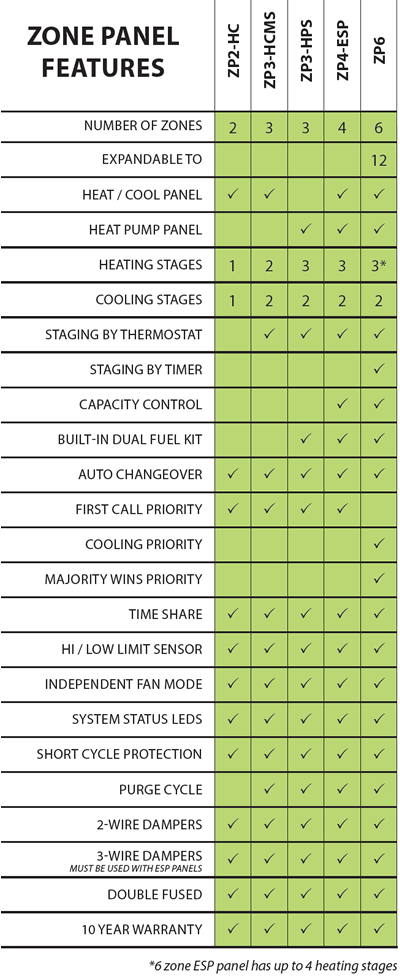

iO HVAC Controls ZP Zone Panel Specs
