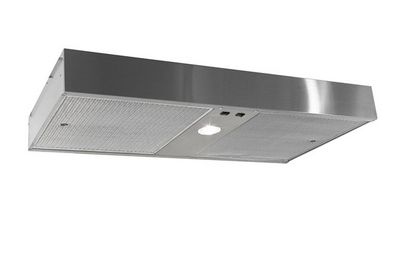

Imperial C2000 SD2 Air Ring Mesh Series Stainless Powered Liners 18-1/8 Inch Deep

Imperial C2000 SD2 Mesh Filter Series inserts. 360 CFM motor built-in.  Rocker switch for high and low fan settings.  Inserts are easy to install with all inclusive liners and blowers.

  • 18-1/8" depth, 6" height
  • 30, 36 and 42 nominal widths
  • "Air-Ring" fan motor with 360 CFM (2.5 - 4.9 Sones)
  • Rocker switch controls for fan and light
  • One 38 watt halogen light
  • Stainless steel constuction and mesh filters (included)
  • Built-in backdraft damper
  • 7" round duct opening
  • Made in the USA
  • Limited 7 year in-home warranty covering parts and labor
model description usually ships price QTY
C2030SD2-SS Imperial C2000 Air Ring Fan Mesh Series. 18-1/8" depth, 6" high, 30" wide. 360 nominal CFM @ 2.5 to 4.9 Sones, 7" Duct 3-4 Days $342.90
C2036SD2-SS Imperial C2000 Air Ring Fan Mesh Series. 18-1/8" depth, 6" high, 36" wide. 360 nominal CFM @ 2.5 to 4.9 Sones, 7" Duct 3-4 Days $371.40
C2042SD2-SS Imperial C2000 Air Ring Fan Mesh Series. 18-1/8" depth, 6" high, 42" wide. 360 nominal CFM @ 2.5 to 4.9 Sones, 7" Duct 3-4 Days $400.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

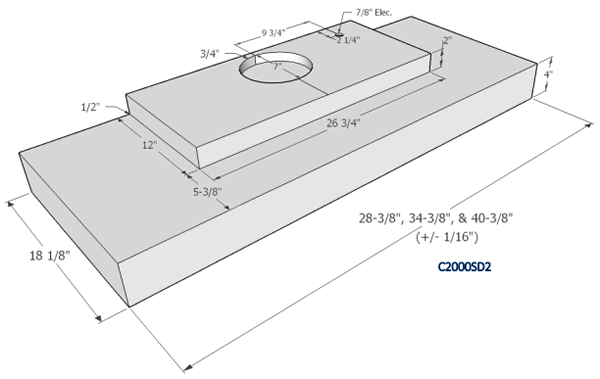

Imperial SD2 liner specs

Imperial SD2 liner

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can the filter be cleaned in the dishwasher? What is the noise level of the fan in dB? Can a LED light be used in place of the halogen light?
A:   Per Imperial: Filters may be used in the dishwasher through the RINSE cycle ONLY. Some detergents may discolor filters. Yes, you can get other bulbs that are LED. Imperial lists sones only for sound levels.

       Asked on 2019-11-21 by Christy
