Imperial C2000 Mesh Series Stainless Powered Liners 22-1/8 Inch Deep

Imperial C2000 Mesh Series Stainless Powered Liners 22-1/8 Inch Deep

Imperial C2000 Mesh Filter Series inserts include options with either one or two motors ranging from 750-1520 CFM.  All models feature variable control motors and dimmable halogen lighting. Inserts are easy to install with all inclusive liners and blowers. Safety heat sensors on all blower models.

  • 22-1/8" depth, 6" height
  • 30, 36, 42, 48, 54 and 60 nominal widths
  • 1.5 to 4.6 sones (on high)
  • Variable switches for control of fan and lights
  • Two 38 watt halogen bulbs
  • Stainless steel constuction and mesh filters (included)
  • Fire safety thermostat activates at 130 degrees
  • 7", 8" or 10" round duct opening (depends on model)
  • Made in the USA
  • Limited 7 year in-home warranty covering parts and labor
model description usually ships price QTY
C2030PS-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 30" wide. 750 nominal CFM, 7" Duct 1-2 Weeks $1253.40
C2036PS-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 36" wide. 750 nominal CFM, 7" Duct 1-2 Weeks $1287.70
C2042PS-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 42" wide. 750 nominal CFM, 7" Duct 1-2 Weeks $1315.10
C2048PS-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 48" wide. 750 nominal CFM, 7" Duct 1-2 Weeks $1390.40
C2030PS-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 30" wide. 900 nominal CFM, 8" Transition 1-2 Weeks $1294.50
C2036PS-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 36" wide. 900 nominal CFM, 8" Transition 1-2 Weeks $1328.80
C2042PS-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 42" wide. 900 nominal CFM, 8" Transition 1-2 Weeks $1356.20
C2048PS-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 48" wide. 900 nominal CFM, 8" Transition 1-2 Weeks $1445.20
C2030PS-K-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 30" wide. 1000 nominal CFM, 10" Transition 1-2 Weeks $1335.60
C2042PS-K-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 42" wide. 1000 nominal CFM, 10" Transition 1-2 Weeks $1397.30
C2036PS-K-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 36" wide. 1000 nominal CFM, 10" Transition 1-2 Weeks $1369.90
C2048PS-K-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 48" wide. 1000 nominal CFM, 10" Transition 1-2 Weeks $1486.30
C2036PS1-TW-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 36" wide. 1270 nominal CFM, Two 7" Ducts 1-2 Weeks $1547.90
C2042PS1-TW-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 42" wide. 1270 nominal CFM, Two 7" Ducts 1-2 Weeks $1589.00
C2048PS1-TW-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 48" wide. 1270 nominal CFM, Two 7" Ducts 1-2 Weeks $1657.50
C2054PS1-TW-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 54" wide. 1270 nominal CFM, Two 7" Ducts 1-2 Weeks $1794.50
C2060PS1-TW-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 60" wide. 1270 nominal CFM, Two 7" Ducts 1-2 Weeks $1924.70
C2036PS1-TW-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 36" wide. 1520 nominal CFM, Two 8" Transitions 1-2 Weeks $1650.70
C2042PS1-TW-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 42" wide. 1520 nominal CFM, Two 8" Transitions 1-2 Weeks $1691.80
C2048PS1-TW-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 48" wide. 1520 nominal CFM, Two 8" Transitions 1-2 Weeks $1760.30
C2054PS1-TW-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 54" wide. 1520 nominal CFM, Two 8" Transitions 1-2 Weeks $1897.30
C2060PS1-TW-8-SS Imperial C2000 Mesh Series. 22-1/8" depth, 6" high, 60" wide. 1520 nominal CFM, Two 8" Transitions 1-2 Weeks $2047.90
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

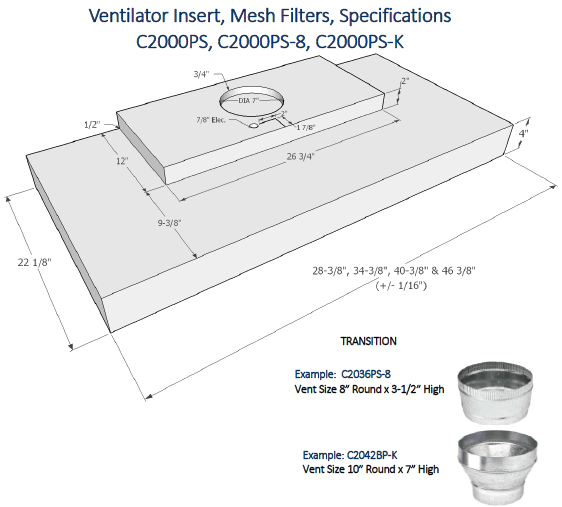

Imperial PS liner specs

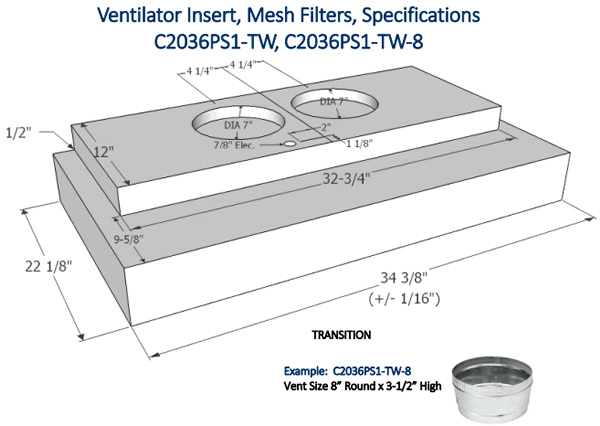

Imperial 36 inch PS1-TW liner specs

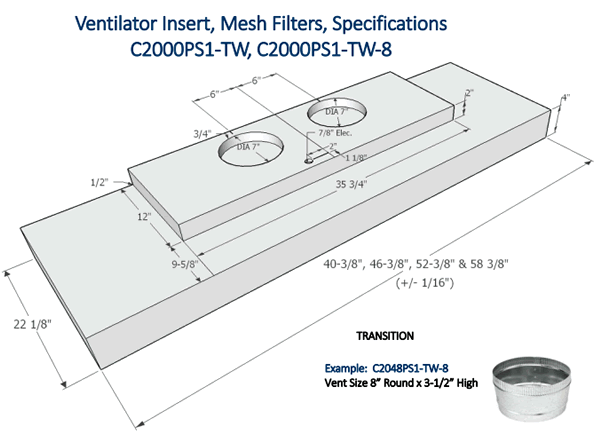

Imperial PS1-TW liner specs

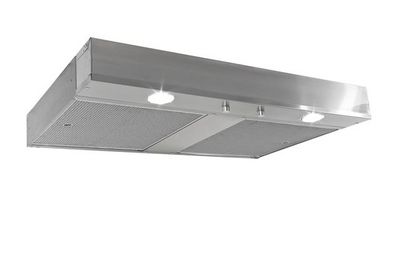

Imperial PS liner

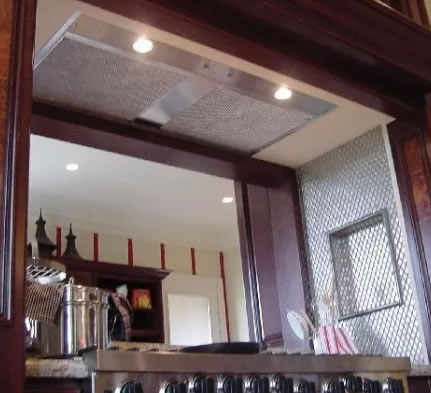

Imperial PS liner installed

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Do any of your hood inserts have rear ducting capability versus vertical?
A:   Top ducting only. Sorry.

       Asked on 2022-01-10 by Stacy
