Imperial C2000 Baffle Series Stainless Powered Liners 18-1/8 Inch Deep

Imperial C2000 Baffle Series inserts include options with either one or two motors ranging from 540-1275 CFM.  All models feature variable control motors and dimmable halogen lighting. Inserts are easy to install with all inclusive liners and blowers. Safety heat sensors on all blower models.

  • 18-1/8" depth, 10" height
  • 30, 36, 42, 48 nominal widths
  • Variable switches for control of fan and lights
  • Two 38 watt halogen bulbs
  • Stainless steel constuction and baffle filters (included)
  • Fire safety thermostat activates at 130 degrees
  • 7", 8" or 10" round duct opening (depends on model)
  • Made in the USA
  • Limited 7 year in-home warranty covering parts and labor
model description usually ships price QTY
C2030BP1B-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 30" wide. 540 nominal CFM, 7" Duct, 4.25" Off Center 1-2 Weeks $972.60
C2036BP1B-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 36" wide. 540 nominal CFM, 7" Duct, 4.25" Off Center 1-2 Weeks $1020.50
C2042BP1B-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 42" wide. 540 nominal CFM, 7" Duct, 4.25" Off Center 1-2 Weeks $1075.30
C2030BPB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 30" wide. 625 nominal CFM, 7" Duct 1-2 Weeks $1184.90
C2036BPB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 36" wide. 625 nominal CFM, 7" Duct 1-2 Weeks $1219.20
C2042BPB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 42" wide. 625 nominal CFM, 7" Duct 1-2 Weeks $1260.30
C2048BPB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 48" wide. 625 nominal CFM, 7" Duct 1-2 Weeks $1301.40
C2030BPB-8-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 30" wide. 750 nominal CFM, 8" Transition 1-2 Weeks $1253.40
C2036BPB-8-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 36" wide. 750 nominal CFM, 8" Transition 1-2 Weeks $1287.70
C2042BPB-8-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 42" wide. 750 nominal CFM, 8" Transition 1-2 Weeks $1328.80
C2048BPB-8-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 48" wide. 750 nominal CFM, 8" Transition 1-2 Weeks $1369.90
C2030BPB-K-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 30" wide. 840 nominal CFM, 10" Transition 1-2 Weeks $1280.80
C2036BPB-K-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 36" wide. 840 nominal CFM, 10" Transition 1-2 Weeks $1315.10
C2042BPB-K-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 42" wide. 840 nominal CFM, 10" Transition 1-2 Weeks $1356.20
C2048BPB-K-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 48" wide. 840 nominal CFM, 10" Transition 1-2 Weeks $1397.30
C2036BP1-TWB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 36" wide. 1065 nominal CFM, Two 7" Ducts 1-2 Weeks $1363.00
C2042BP1-TWB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 42" wide. 1065 nominal CFM, Two 7" Ducts 1-2 Weeks $1424.70
C2048BP1-TWB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 48" wide. 1065 nominal CFM, Two 7" Ducts 1-2 Weeks $1472.60
C2054BP1-TWB-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 54" wide. 1065 nominal CFM, Two 7" Ducts 1-2 Weeks $1630.10
C2060PS1-TWB-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 60" wide. 1080 nominal CFM, Two 7" Ducts 1-2 Weeks $2174.00
C2036BP1-TWB-8-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 36" wide. 1275 nominal CFM, Two 8" Transitions 1-2 Weeks $1465.80
C2042BP1-TWB-8-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 42" wide. 1275 nominal CFM, Two 8" Transitions 1-2 Weeks $1527.40
C2048BP1-TWB-8-SS Imperial C2000 Baffle Series. 18-1/8" depth, 10" high, 48" wide. 1275 nominal CFM, Two 8" Transitions 1-2 Weeks $1575.30
C2054PS1-TWB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 54" wide. 1290 nominal CFM, Two 8" Transitions 1-2 Weeks $1979.50
C2060PS1-TWB-8-SS Imperial C2000 Baffle Series. 22-1/8" depth, 10" high, 60" wide. 1290 nominal CFM, Two 8" Transitions 1-2 Weeks $2276.70
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

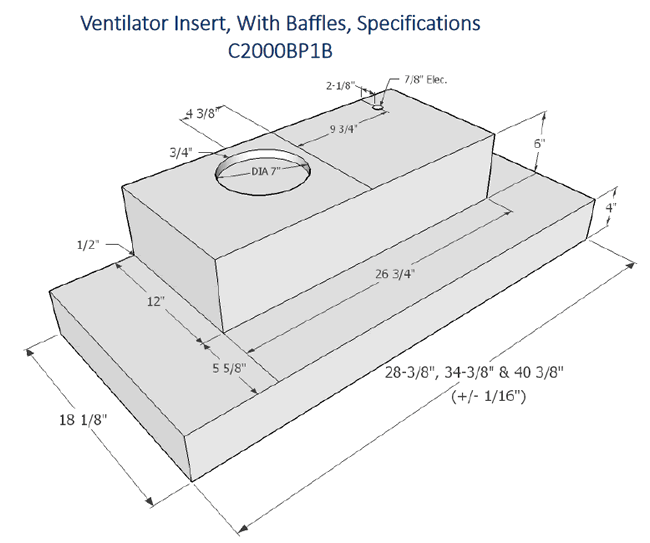

Imperial BP1B liner specs

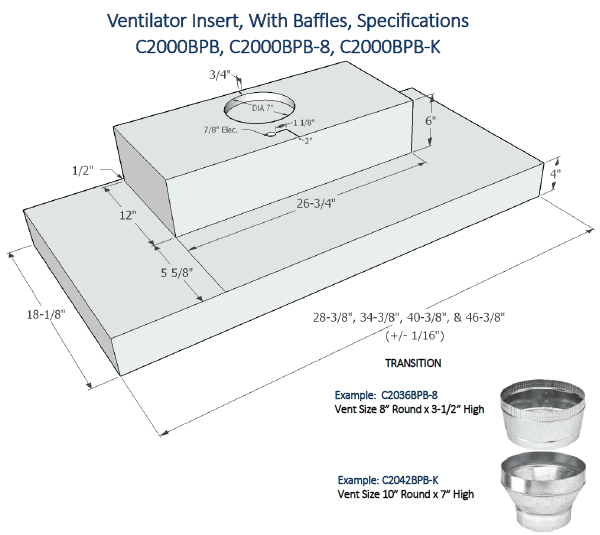

Imperial BPB  liner specs

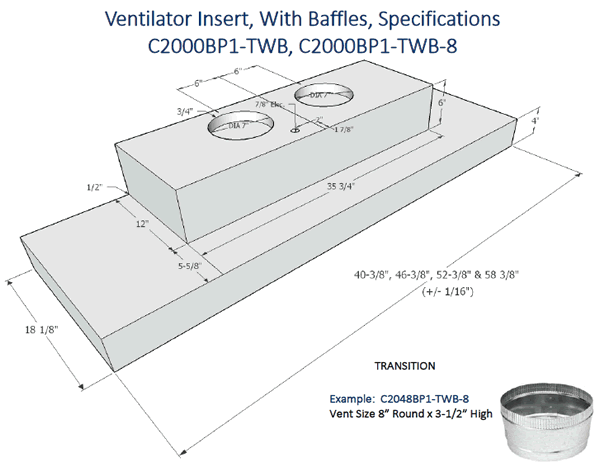

Imperial BP1-TWB  liner specs

Imperial BP1B  liner

Imperial BP1B liner installed
