Ruck Air Movement Prime Evo EC Mixed Flow Fans
Ruck Prime Evo EC fans are a mixed flow design that maximizes airflow performance with a low noise level. Their compact design makes them great for bathroom, kitchen and general venting applications. The EC motors in these fans are invinitely controllable using the MTP 21 (153407) or any other 0-10 V controller.
- Highest aerodynamic efficiency through computer optimized, three dimensionally shaped impeller and guide vanes
- Steplessly controllable, energy saving EC motors
- Protected motor in the hub area, does not influence the airflow
- Corrosion resistant, injection molded plastic housing
- IP rated X4 for high humidity environments
- 5.5 foot power cord included
- 3 year warranty

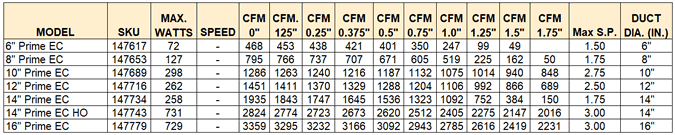

SPECIFICATIONS:
Ruck EC Product Catalog (PDF file)
Ruck Prime EVO EC Installation Manual (PDF file)
Prime EVO EC 6 Data Sheet (PDF file)
Prime EVO EC 6 Dimensions (PDF file)
Prime EVO EC 8 Data Sheet (PDF file)
Prime EVO EC 8 Dimensions (PDF file)
Prime EVO EC 10 Data Sheet (PDF file)
Prime EVO EC 10 Dimensions (PDF file)
Prime EVO EC 12 Data Sheet (PDF file)
Prime EVO EC 12 Dimensions (PDF file)
Prime EVO EC 14 Data Sheet (PDF file)
Prime EVO EC 14 Dimensions (PDF file)
Prime EVO HO EC 14 Data Sheet (PDF file)
Prime EVO HO EC 14 Dimensions (PDF file)
Prime EVO EC 16 Data Sheet (PDF file)
PRODUCTS MARKED 'IN-STOCK' SHIP FROM OREGON (TOP MAP) OR FOR LARGER QUANTITIES FROM NORTH CAROLINA (BOTTOM MAP). ALL OTHER ITEMS SHIP FROM NC.
 |
Do you have questions about the products on this page? Click on the ? image on the left or this link to ask us your questions! |
| #1 | Q: Can this be controlled with a 10v PWM controller? A: These are 0-10VDC controlled. Asked on 2023-03-03 by Evan |
|---|---|

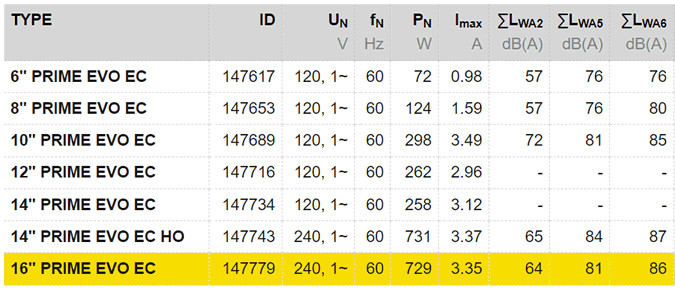

| #2 | Q: The spec sheet includes 3 columns of noise info. What are the locations and conditions of these 3 sets of data?thanks A: Those are measured at the inlet, outlet and on the side by the housing. My guess is these samples are taken from 1 meter as is standard on most of these guys. Asked on 2022-12-05 by Dave |
| #3 | Q: Hi, is this fan suitable for a kitchen exhaust? It looks like its rated to 60 degrees C A: Per Ruck, this fan is fine for residential kitchen exhaust. The 140F (60C) is typical among inline fan manufacturers. The kitchen air being exhausted is well bellow that temperature since its a blend of hot air above the stove and room temperature air. Asked on 2022-10-08 by Dale |
