Canarm ALX-UB Upblast Belt Drive Spun Alum Exhausters

Canarm ALX-UB Upblast Belt Drive Spun Alum Exhausters

ALX-UB: Ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount (up to 24") exhaust fan.

• Spun aluminum housing will not rust, chip or peel
• Aluminum backward inclined wheel is non-overloading
• Belt drive, upblast configuration
• Available with a variety of field or factory installed 1 phase & 3 phase motors
• Units up to 24” can be wall mounted
• Quick release latches for easy motor access

model description usually ships price QTY
ALX135UBT10025 Canarm ALX 13.5 upblast belt drive fan. 1/4Hp, 1 Phase, 120/240V motor. 3-5 Days $912.40
ALX135UBT10033 Canarm ALX 13.5 upblast belt drive fan. 1/3 Hp, 1 Phase, 120/240V motor. 3-5 Days $922.50
ALX135UBT10050 Canarm ALX 13.5 upblast belt drive fan. 1/2 Hp, 1 Phase, 120/240V motor. 3-5 Days $984.70
ALX150UBT10050 Canarm ALX 15 upblast belt drive fan. 1/2 Hp, 1 Phase, 120/240V motor. 3-5 Days $966.90
ALX150UBT10075 Canarm ALX 15 upblast belt drive fan. 3/4 Hp, 1 Phase, 120/240V motor. 3-5 Days $995.30
ALX150UBT10100 Canarm ALX 15 upblast belt drive fan. 1 Hp, 1 Phase, 120/240V motor. 3-5 Days $1027.30
ALX150UBT30100 Canarm ALX 15 upblast belt drive fan. 1 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $949.70
ALX165UBT10100 Canarm ALX 16.5 upblast belt drive fan. 1 Hp, 1 Phase, 120/240V motor. 3-5 Days $1183.00
ALX165UBT10150 Canarm ALX 16.5 upblast belt drive fan. 1-1/2 Hp, 1 Phase, 120/240V motor. 3-5 Days $1218.00
ALX165UBT30100 Canarm ALX 16.5 upblast belt drive fan. 1 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1080.00
ALX165UBT30150 Canarm ALX 16.5 upblast belt drive fan. 1-1/2 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1087.70
ALX180UBT10100 Canarm ALX 18 upblast belt drive fan. 1 Hp, 1 Phase, 120/240V motor. 3-5 Days $1312.10
ALX180UBT10200 Canarm ALX 18 upblast belt drive fan. 2 Hp, 1 Phase, 120/240V motor. 3-5 Days $1321.60
ALX180UBT30100 Canarm ALX 18 upblast belt drive fan. 1 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1143.90
ALX180UBT30200 Canarm ALX 18 upblast belt drive fan. 2 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1292.60
ALX210UBT10150 Canarm ALX 21 upblast belt drive fan. 1-1/2Hp, 1 Phase, 120/240V motor. 3-5 Days $1531.80
ALX210UBT30150 Canarm ALX 21 upblast belt drive fan. 1-1/2 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1353.00
ALX245UBT10150 Canarm ALX 24.5 upblast belt drive fan. 1-1/2 Hp, 1 Phase, 120/240V motor. 3-5 Days $1574.40
ALX245UBT10200 Canarm ALX 24.5 upblast belt drive fan. 2 Hp, 1 Phase, 120/240V motor. 3-5 Days $1893.60
ALX245UBT10300 Canarm ALX 24.5 upblast belt drive fan. 3 Hp, 1 Phase, 120/240V motor. 3-5 Days $1740.80
ALX245UBT30150 Canarm ALX 24.5 upblast belt drive fan. 1-1/2 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1469.00
ALX245UBT30200 Canarm ALX 24.5 upblast belt drive fan. 2 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1541.80
ALX245UBT30300 Canarm ALX 24.5 upblast belt drive fan. 3 Hp, 3 Phase, 208-230/460V motor. 3-5 Days $1773.40
RCG19.5 Canarm non-vented curb for ALX135, ALX150, SD-SDUB-30, SD-SDUB-33, SD-SDUB-50 fans. 18 inch high. 19.5 inch OD square. 3-5 Days $100.70
RCGI19.5 Canarm non-vented curb for ALX135, ALX150, SD-SDUB-30, SD-SDUB-33, SD-SDUB-50 fans. 18 inch high. 19.5 inch OD square. INSULATED. 3-5 Days $152.80
RCG23.25 Canarm non-vented curb for ALX165, ALX180, SD-SDUB-85 fans. 18 inch high. 23.25 inch OD square. 3-5 Days $118.40
RCGI23.25 Canarm non-vented curb for ALX165, ALX180, SD-SDUB-85 fans. 18 inch high. 23.25 inch OD square. INSULATED. 3-5 Days $180.00
RCG31.5 Canarm non-vented curb for ALX210, ALX245 fans. 18 inch high. 31.5 inch OD square. 3-5 Days $162.20
RCGI31.5 Canarm non-vented curb for ALX210, ALX245 fans. 18 inch high. 31.5 inch OD square. INSULATED. 3-5 Days $244.50
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

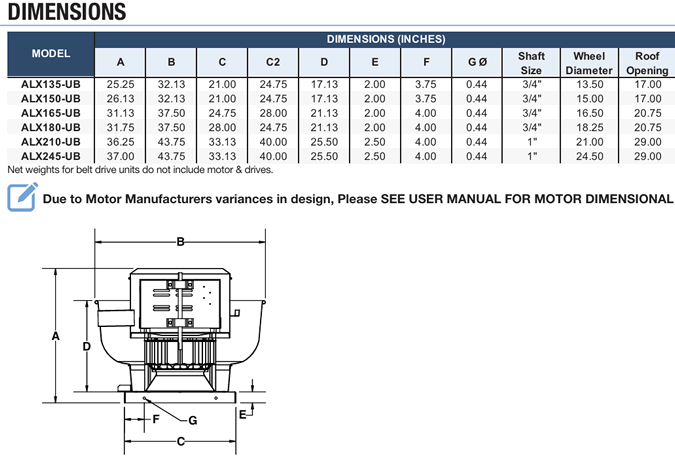

canarm leader ALX-UB series dimensions

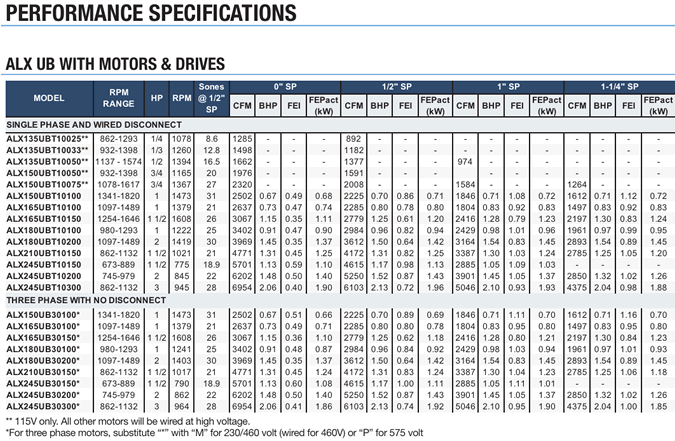

canarm leader ALX-UB series specs
