AquaMotion AMH1K-RODRN ON DEMAND Tankless Pump and Valve Hot Water Recirculation System

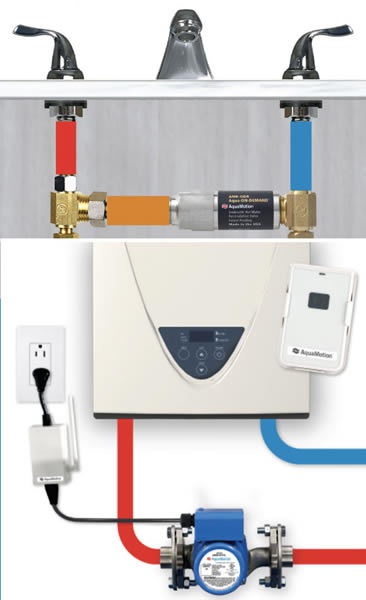

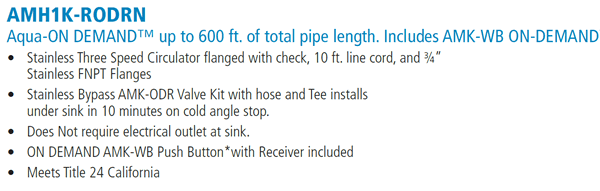

The AMH1K-RODRN is an ON-DEMAND kit for TANKLESS HEATERS WITHOUT A BUILT-IN PUMP on standard single pipe plumbing. Kit contains the AMR-SFVL1 flanged stainless high speed circulator with a 10 ft. line cord, 3/4" stainless female NPT flange kit, AMK-ODR valve kit with valve, hose, tee. Valve on/off is 95-105F. The pump is installed at the water heater and the valve at a remote fixture.

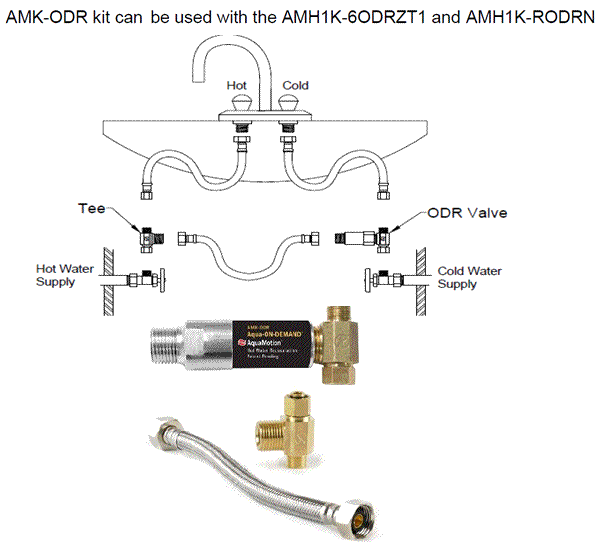

The AquaMotion AMK-ODR valve is a small, quiet, lead free stainless/brass hot water recirculation valve for single pipe systems. It installs at the fixture furthest from the tankless hot water heater. When hot water is called by the on-demand controls, the circulator forces the cooled hot water in the hot water line into the cold supply line which returns it to the hot water heater. As hotter water reaches the ODR valve, it closes until a 95°F temperature is reached at which point the valve automatically adjusts to maintain this temperature. Up to 5 AMK-ODR valves per pump.
 |
Do you have questions about the products on this page? Click on the ? image on the left or this link to ask us your questions! |
| #1 | Q: Is it possible to set there pump to run continuously but turn the pump on/off Using a smart plug like Kasa Smart Plug? This way I can operate the pump when I need it from anywhere using my phone. A: Yes, you can plug the pump into your smart plug and schedule the pump to run when you want it to. Asked on 2023-02-20 by Rahul |
|---|---|
| #2 | Q: The answer to question below states that the pump shuts off when hot water reaches it. This cant be right. If the pump is mounted at the heater it would see hot water instantly and shut-off? Does it shutoff when the ODR sees hot water? A: You are correct. That last part was applicable only on pumps are are mounted at the furthest fixture. Here is the operation per AquaMotion: The valve installs under the furthest fixture from the tankless hot water heater. The valve works in conjunction with the circulator to supply hot water. When hot water is called for with an On-Demand AMK-WB device the circulator forces the cooled water in the hot water line into the cold water supply line, at the fixture where the under sink valve is installed, which returns the water to the tankless hot water heater. As hotter water reaches the valve under the fixture the valve closes until a 95 F temperature is reached at which point the valve automatically adjusts to maintain this temperature as long as the circulator is operating. The AMK-WB receiver that the circulator is plugged into comes factory set to run the circulator for 5 min. Asked on 2022-11-08 by Errol |
| #3 | Q: How does the wireless remote work? How does it connect or communicate with the pump? A: The remote sends and RF signal to the receiver on the pump to start. Asked on 2021-05-13 by Troy |
Related Products
AquaMotion AMH1K-6ODRZT1 Tankless Pump and Valve Hot Water Recirculation System
Split pump and bypass valve kit. Pump installs at water heater and valve under sink. For single pipe systems with a TANKLESS water heater with no pump. With timer.
AquaMotion AMH3K-R Tankless Under Sink Hot Water Recirculation System
Under sink recirc system for standard single pipe plumbing with a TANKLESS water heater. Timer or on-demand models. Up to 600 ft. total pipe length.
