SteelCrest Pro-Vertical Custom Metal Grilles and Registers

SteelCrest Pro-Vertical Custom Metal Grilles and Registers

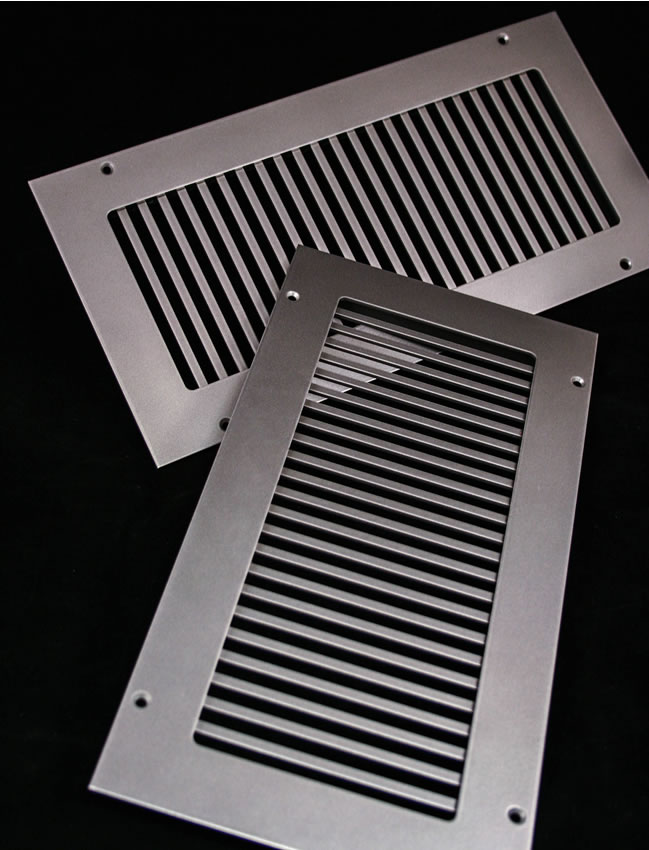

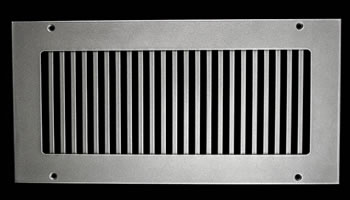

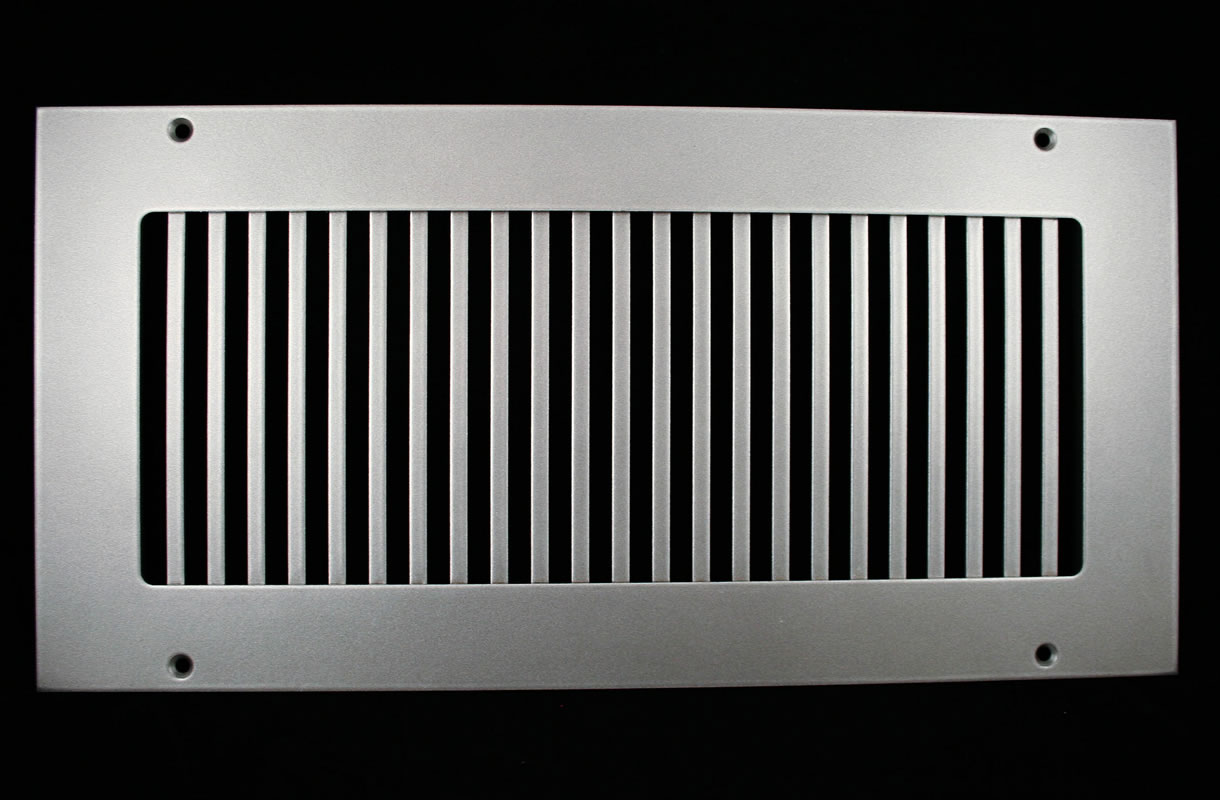

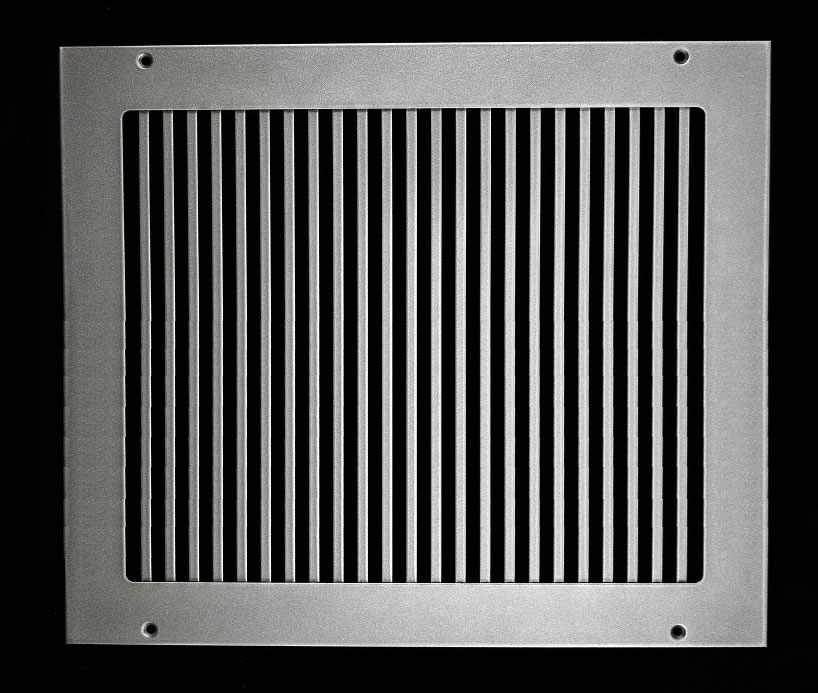

The Pro-Vertical Series is a significant step up from standard linear bar registers. It brings considerable refinement, and conveys a clear sense of style. 1/8-inch thick laser cut steel is used on all supply registers and return grilles and they are available in 5 finishes plus STAINLESS STEEL. Supplies come standard with an attached air control damper.  Dampers and accessories are not stainless steel.  Vertical linear bars.

NOTE THAT THE STAINLESS STEEL PRO-VERTICAL IS NOT FOR USE AS A FLOOR GRILLE.

4 WEEK STANDARD PRODUCTION.  2-week and 3-week expedited production is available.

1
Adjust Grille Parameters

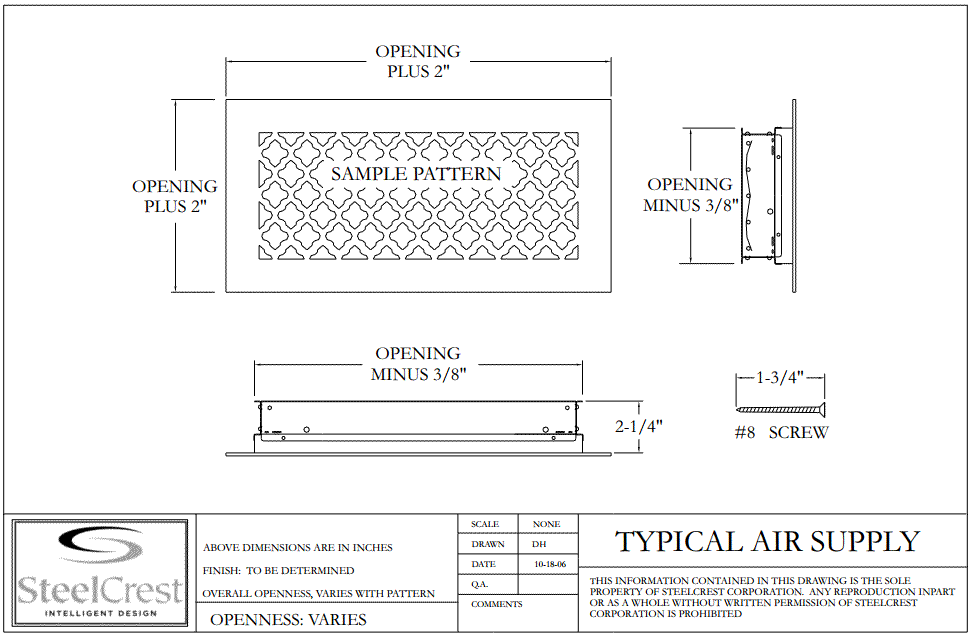

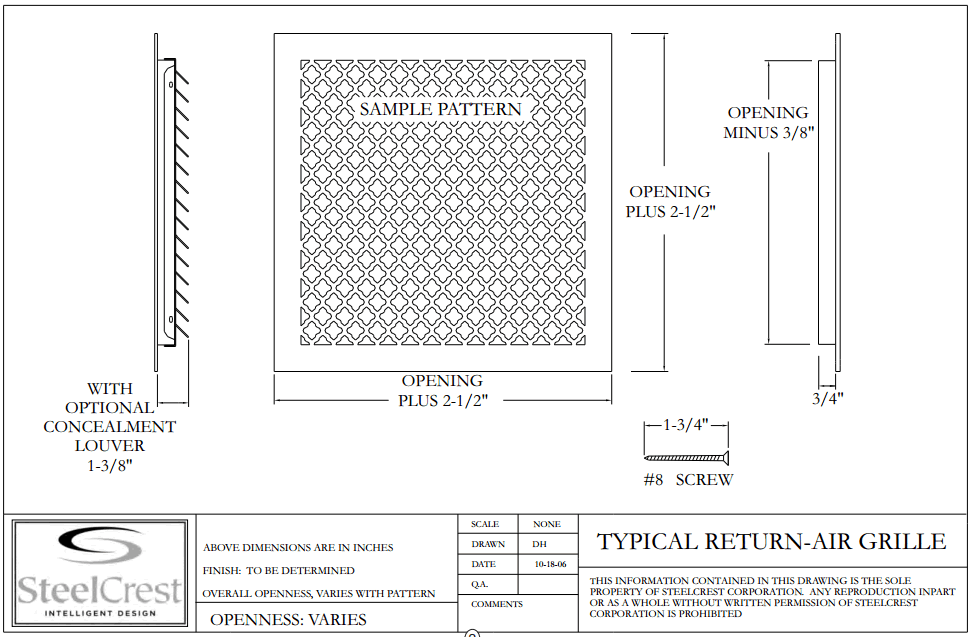

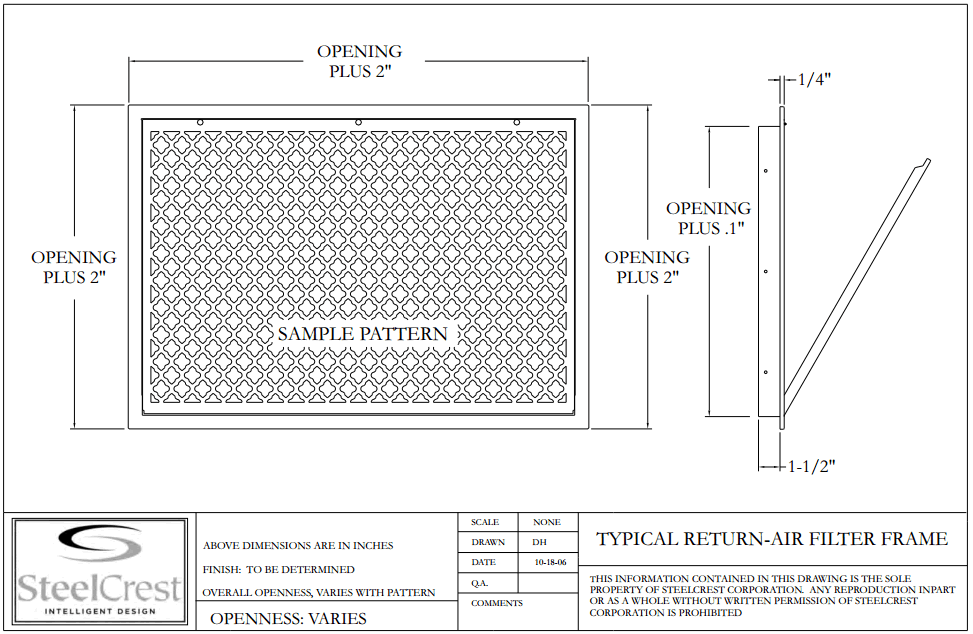

  ** The LIST length and width (height) are the size of the OPENING. The actual overall dimensions will be 2" larger in both length and width (1.5" larger for list size less than 4.25" and 2.5" larger if both sides are bigger than 13.75" list).








Selected Design: SteelCrest Grille Design Selected Color:
2
Pricing and Model#
3
Purchase
Note: SteelCrest products are made-to-order. They are NON-RETURNABLE. If you have questions, please call us at 877-711-4822 before ordering.
 Quantity:



Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   If its 1/4 inch bar and 1/4 inch open, does this mean its 50% net free air?
A:   Not quite but close. You can assume you will loose another 3-5% for frame/supports.

       Asked on 2022-03-29 by jim
#2 Q:   Image shows a 4 screw hole pattern. Can I order a 2 screw hole pattern. 1 hole on left and 1 on the right to match a standard 10x6 duct with receiving holes in the flange of the duct?
A:   Absolutely. When checking out, there is a customer notes section where you can express your desire, or call in just prior to, or just after placing the order and we can pass along your preferred hole pattern.

       Asked on 2021-06-18 by Stan
#3 Q:   What is width and spacing of bars?
A:   The bars are 1/4in with a spacing of 1/4in.

       Asked on 2016-12-17 by Jerome
