S&P Series EASB & EASW PVC Blade Rear Flanged Shutter

S&P Series EASB & EASW PVC Blade Rear Flanged Shutter

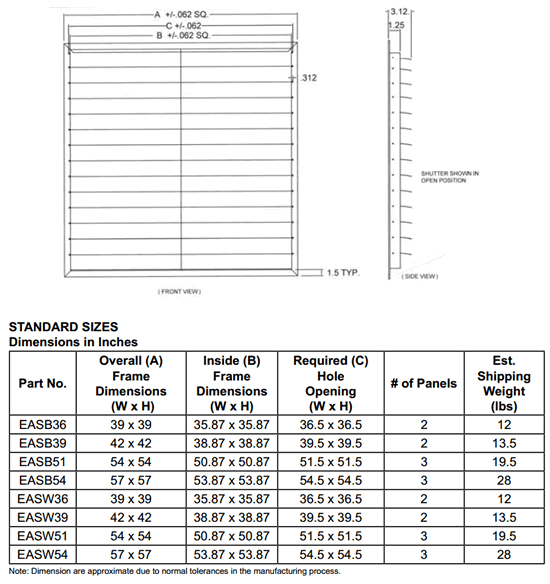

The Models EASB & EASW are rear flanged exhaust shutters for areas where corrosion is a known problem. The frame is painted extruded aluminum with UV stabilized PVC blades with yellow zinc dichromate rods running the full length of the blades. Ideal for direct-drive or belt-driven cone or slant-wall exhaust fans in poultry or swine confinement operations. Recommended for vertical mount exhaust applications only. Available in white or black.

FEATURES:
• .080 extruded aluminum frame painted black or white
• Staked corners provide rigidity and durability.
• Maximum recommended velocity is 1,500 FPM
• Temperature: -40 F to 180 F
• 3" wide black or white PVC blades
• Yellow zinc dichromate rods connect blades for uniform opening and closing

model description usually ships price QTY
EASB36 S&P 36" X 36" series EASB BLACK PVC wall shutter. Max velocity of 1500 FPM. 2 panels. 5-6 Weeks $227.40
EASB39 S&P 39" X 39" series EASB BLACK PVC wall shutter. Max velocity of 1500 FPM. 2 panels. 5-6 Weeks $262.90
EASB51 S&P 51" X 51" series EASB BLACK PVC wall shutter. Max velocity of 1500 FPM. 3 panels. 5-6 Weeks $404.20
EASB54 S&P 54" X 54" series EASB BLACK PVC wall shutter. Max velocity of 1500 FPM. 3 panels. 5-6 Weeks $427.90
EASW36 S&P 36" X 36" series EASW WHITE PVC wall shutter. Max velocity of 1500 FPM. 2 panels. 5-6 Weeks $227.40
EASW39 S&P 39" X 39" series EASW WHITE PVC wall shutter. Max velocity of 1500 FPM. 2 panels. 5-6 Weeks $262.90
EASW51 S&P 51" X 51" series EASW WHITE PVC wall shutter. Max velocity of 1500 FPM. 3 panels. 5-6 Weeks $404.20
EASW54 S&P 54" X 54" series EASW WHITE PVC wall shutter. Max velocity of 1500 FPM. 3 panels. 5-6 Weeks $427.90
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

S&P EASB Shutters
