S&P Series EAS-HDGS Rear Flanged Shutter For Higher Velocity Applications

The Model EAS-HDGS is a rear flanged exhaust shutter for applications that require higher velocities. The frame and blades are mill finish extruded aluminum with stainless steel tie rods. Ideal for use with direct drive or belt-driven exhaust fans. Recommended for vertical mount exhaust applications only.

FEATURES:
• .062 mill finish 6063T5/6 extruded aluminum.
• Staked corners provide rigidity and durability.
• .080 mill finish 6063T5/6 extruded aluminum blades.
• Stainless steel tie-rod connects blades for uniform opening and closing.
Maximum recommended velocity is 3,250 FPM
• Temperature: -40 F to 180 F

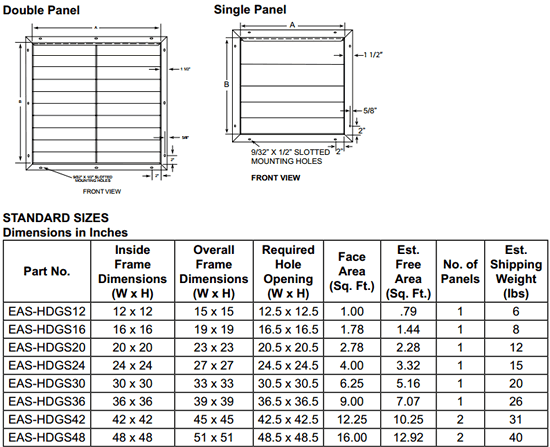

model description usually ships price QTY
EAS-HDGS12 S&P 12" x 12" series EAS-HDGS alum wall shutter (high velocity). Max velocity of 3250 FPM. 1 panel. 2 Weeks $78.90
EAS-HDGS16 S&P 16" x 16" series EAS-HDGS alum wall shutter (high velocity). Max velocity of 3250 FPM. 1 panel. 2 Weeks $104.20
EAS-HDGS20 S&P 20" x 20" series EAS-HDGS alum wall shutter (high velocity). Max velocity of 3250 FPM. 1 panel. 2 Weeks $127.40
EAS-HDGS24 S&P 24" x 24" series EAS-HDGS alum wall shutter (high velocity). Max velocity of 3250 FPM. 1 panel. 2 Weeks $156.30
EAS-HDGS36 S&P 36" x 36" series EAS-HDGS alum wall shutter (high velocity). Max velocity of 3250 FPM. 1 panel. 2 Weeks $249.70
EAS-HDGS42 S&P 42" x 42" series EAS-HDGS alum wall shutter (high velocity). Max velocity of 3250 FPM. 2 panels. 2 Weeks $382.10
EAS-HDGS48 S&P 48" x 48" series EAS-HDGS alum wall shutter (high velocity). Max velocity of 3250 FPM. 2 panels. 2 Weeks $451.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

S&P EAS-HDGS Shutters

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

S&P Series EAS-RF Rear Flanged Shutter For Corrosion Prone Installations

Rear flanged shutter for high corrosion areas. The frame and blades are aluminum. Vertical mount exhaust only. 2,500 fpm max.

S&P Series FGS Rear Flanged FIBREGLASS Shutter

Rear flanged exhaust shutter for areas where corrosion is a problem. Heavy duty fiberglass pultrusion with stainless steel tie rods. 2,500 fpm max.

S&P Series 502 Rear Flanged Low Velocity Gravity Shutters

Fear flanged low velocity gravity exhaust shutter. Galvanized steel frame with aluminum blades. Vertical mount exhaust only. 2,000 fpm max.

S&P Series 556 Rear Flanged General Purpose Shutters

Rear flanged general purpose exhaust shutter. Galvanized steel frame with aluminum blades. Vertical mount exhaust only. 2,500 fpm max.
