Dayus DAPH and DAPHD FLOOR Bar Linear Grilles

Heavy duty bar linear grilles and registers for FLOOR and general use

  • DAPH grilles have no damper
  • DAPHD registers come complete with a damper
  • Reinforced heavy duty core with supports every 2"
  • Fully extruded, high quality aluminum construction for a stylish appearance
  • Fixed blades parallel to the LENGTH dimension
  • Designed for floor or reinforced sidewall, sill and ceiling installation
  • Available on 1/2" increments as standard. Custom sizes available down to 1/16" increments
  • Available with durable powder coat finish

Any available size in 3 days! Call us at 877-711-4822 if you do not see the size you need listed.

Type/Style:
  Dayus Grilles   DAPH Style
(click on picture for a larger view or spec drawing)

Click here to download the grille cut-sheet (info sheet).
LIST* Length:
LIST* Width (Height): Please select LENGTH above first

*NOTE: The LIST Length and Width are the size of the OPENING. See cut-sheet for undercut and sizing info. Blades are in direction of Length.
Blade Options: 0 Degree, 13/64" Blades on 1/2" Centers ('-00')
0 Degree, 1/4" Blades on 1/2" Centers ('-01')
15 Degree, 13/64" Blades on 1/2" Centers ('-15')
30 Degree, 13/64" Blades on 1/2" Centers ('-30')
0 Degree, 1/8" Blades on 1/2" Centers ('-82')
Heel Proof, 1/8" Blades on 1/4" Centers ('-84')
Mounting: Screws '-A' (for ceiling, wall, and sill applications)
Spring Clips '-B' (for sill and floor applications)
Concealed '-C' (for ceiling, wall, floor, and sill applications)
No Mounting '-TB' For Custom Applications (not typically used)
Finish:      Dayus Color Chart

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.
Production: Standard Production (3-4 Weeks)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production - NOT available for BLACK finish



Model Number:
DAPH-00-B-x-White-STD

Total Price (each): $ 0.00
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket).
Quantity:

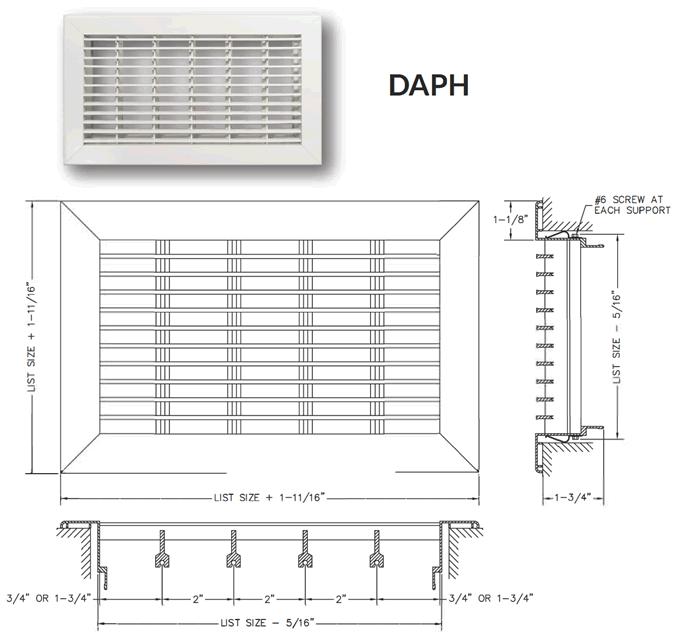

Dayus daph grille specifications

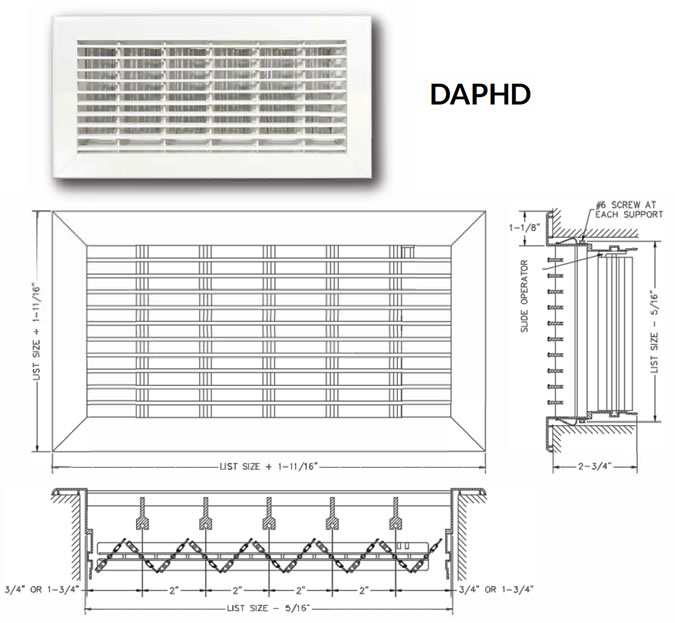

Dayus daphd grille specifications



Finish Colors:

   White    Silver    Mill    Brown Black (Flat Black)
