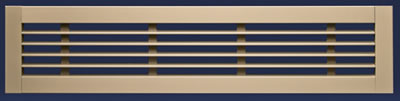

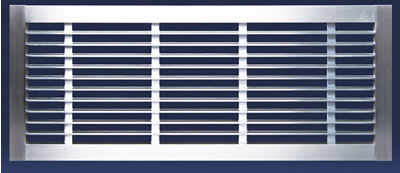

Dayus DABLS Shallow Bar Linear Grilles

· 1/2 inch ultra shallow depth
· Fixed blades designed for long straight air throw
· Sections joined together for continuous appearance. When longer than 96”, aligning pins are provided.
· End caps are included. Open ends can be specified when required.
· Available on 1/2" increments as standard
· Durable powdercoat painted finish

Any available size in 3 days! Call us at 877-711-4822 if you do not see the size you need listed.

Type/Style:
Dayus Grilles
(click on picture for a larger view or spec)

Click here to download the grille cut-sheet (info sheet).
LIST* Width:
LIST* Length: Please select WIDTH above first

*NOTE: The LIST width and length are the size of the OPENING. See cut-sheet for undercut and sizing info. Blades are in direction of Length.
Finish:      Dayus Color Chart

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.

Painted DABLS grilles have a minimum order amount of $250 to $350 depending on color and production selected. Any order below that amount will have a $40 paint surcharge applied per color in the basket.
Production: Standard Production (3-4 Weeks)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production - Available in MILL finish only




Model Number:
DABLS~B

Total Price (each): $ 0.00
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket).
Quantity:

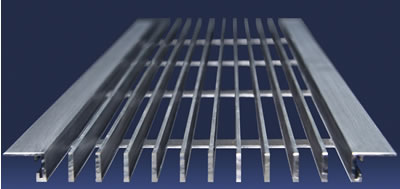

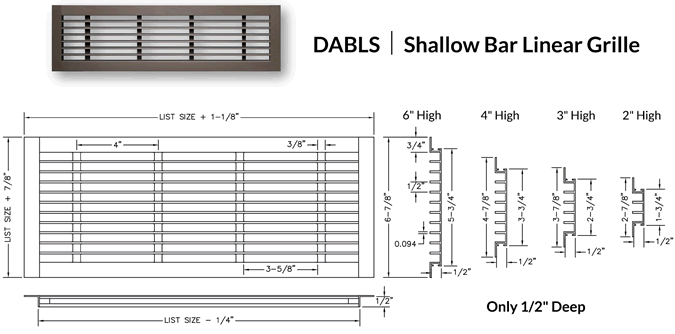

dayus dabls grille specifications

dayus dabls

dayus dabls

dayus dabls



Finish Colors:

   White    Silver    Mill    Brown Black (Flat Black)

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Where are the screw holes located on the flange?
A:   Here is the typical hole pattern chart for Dayus: https://grilles.hvacquick.com/catalog_files/Dayus_Hole_Chart.pdf

       Asked on 2020-10-12 by Alex
#2 Q:   Wondering if this grille can be used vertically to vent the side of a cabinet?
A:   Sure. You probably want the DABLS-A version with screw holes in the flanges for attaching it securely to the cabinet.

       Asked on 2017-09-12 by Betty
#3 Q:   I would like to use these in my kitchen ceiling, two bedrooms, foyer, and two baths. Do they come with an adjustable option? this is new construction; i like the sleek narrow look of these bar grilles, probably in a 24 x 6 size.
A:   Have a look at the DABLD series (D at the end means a damper is included) which includes dampers for adjustment of airflow: http://www.hvacquick.com/products/commercial/Grilles-Registers/Grilles/Dayus-Bar-Linear-Grilles

       Asked on 2017-07-04 by RW
#4 Q:   Im pricing 10x6 floor grilles. Are these suitable for floor applications?
A:   No, the shallow bar linear should not be used for floor applications. You need the DAF or DABLF styles which have extra re-reinforcement for floor use. Feel free to call with any questions 877-711-4822. http://grilles.hvacquick.com/products/residential/Bar-Linear-Grilles/Floor-Bar-Linear

       Asked on 2017-05-15 by Landon
#5 Q:   my grille size is 2x48. that is opening size. What is actual size of grille going to be?
A:   If the selected list size is 2x48 (opening size), then the overall size with the flange will be 2-7/8 x 49-1/8. Check out the info sheet link for more into.

       Asked on 2015-10-22 by Gen
#6 Q:   The hole for my vent is 5 by 45. Is it possible to get a custom height of 5? The options in the drop down are 4 and 6 only.
A:   They are only available in the listed sizes. Only custom dim on these is the length. Try the standard DABL/DABLD for that width.

       Asked on 2015-01-27 by CSR
#7 Q:   How much larger is the overall grill than the opening dimension?
A:   One would add 7/8 inch to the size to get the overall footprint.

       Asked on 2014-04-08 by KWO
#8 Q:   this is a kick vent under theckitchen counter . Is it possible to have upper and lower flanges removed and only have the side flanges ? The horizontal hole clearance is only 4 inches .
A:   We would need to use a standard DABL bar linear, which can be ordered with no flanges at all. The Shallow is and extrusion and available in limited sizes.

       Asked on 2013-09-09 by Stuart
#9 Q:   Is there a trim for the ends of this grill to finish the sheetrock opening
A:   Yes, there is a flange all the way round to cover any indiscretions in the sheetrock.

       Asked on 2013-07-24 by k
#10 Q:   I was looking to order 2, silver but legnth to be 41.5 Inches long by 6 inches tall if possible
A:   You may call in and place the order as that is a standard size, or check the site in a day or 2 as we are going to add the 1/2 options on the site.

       Asked on 2013-07-23 by Joe
