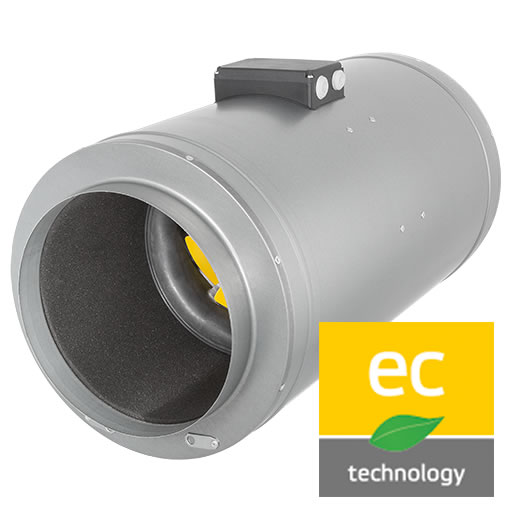

Ruck Air Movement S-Prime Evo EC Mixed Flow Fans

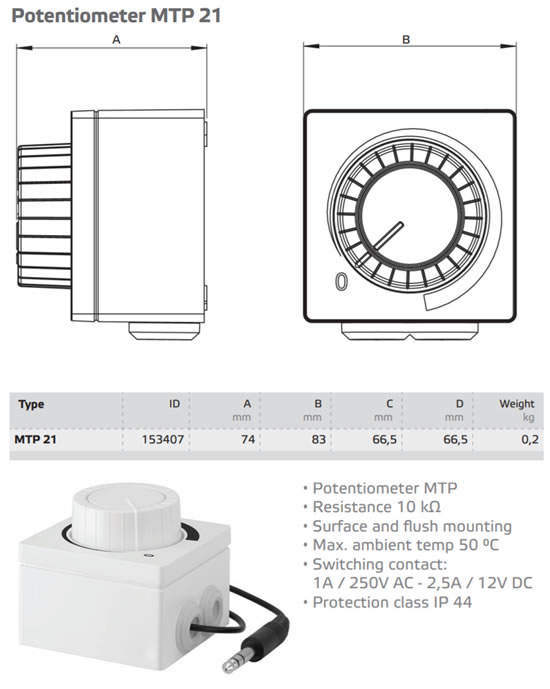

Ruck S-Prime Evo EC fans are a mixed flow design that maximizes airflow performance with a low noise level. The sound insulated casing makes for silent operation and makes them great for bathroom, kitchen and general venting applications. The EC motors in these fans are infinitely controllable using the MTP 21 (153407) 0-10 V controller.
- Sound insulated mixed flow fan for silent operation

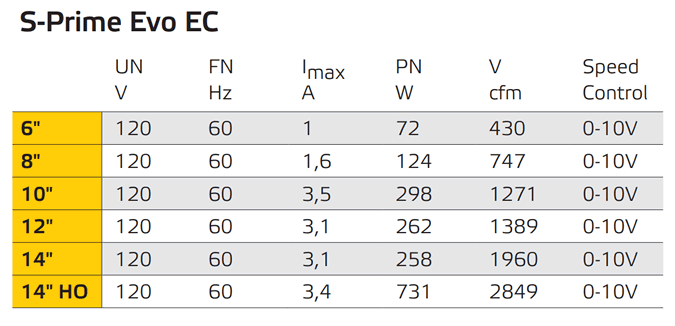

- Steplessly controllable, energy saving powerful EC motor
- Protected motor in the hub area, does not influence the airflow
- Galvanized steel casing

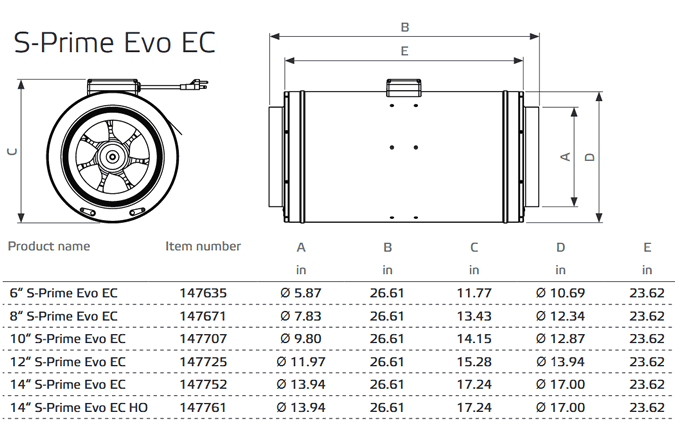

- Available from 6“ to 14“
Ruck EC Product Catalog (PDF file)
S-Prime EVO EC Air Flow Curves (PDF file)
S-Prime EVO EC 6 Data Sheet (PDF file)
S-Prime EVO EC 8 Data Sheet (PDF file)
S-Prime EVO EC 10 Data Sheet (PDF file)
S-Prime EVO EC 12 Data Sheet (PDF file)
S-Prime EVO EC 14 Data Sheet (PDF file)
PRODUCTS MARKED 'IN-STOCK' SHIP FROM OREGON (TOP MAP) OR FOR LARGER QUANTITIES FROM NORTH CAROLINA (BOTTOM MAP). ALL OTHER ITEMS SHIP FROM NC.
