Ruck Air Movement Prime Mixed Flow Fans

Ruck Air Movement Prime Mixed Flow Fans

Ruck Prime fans are a mixed flow design that maximizes airflow performance with a low noise level.  Their compact design makes them great for bathroom, kitchen and general venting applications.  A built-in 3 speed switch (except 12 inch fan) allows easy tailoring for airflow requirements.

  • Mixed flow fan with high efficiency rates
  • 3D shaped impeller blades
  • Integrated 3-speed switch (except 12 inch fan)
  • One-phase AC motor
  • Mounting bracket and 5.5 foot power cord
  • 3 year warranty

The 14" Prime HO is not able to be speed controlled through an external controller.  The 12, 16, and 18" Prime fans require a voltage control for external speed control.

model description usually ships price QTY
Ruck 6" Prime Ruck 6 inch Prime series fan. SKU 147473. 234 CFM. 120 VAC. 3 speed. 1-2 Days $151.70
Ruck 8" Prime Ruck 8 inch Prime series fan. SKU 147482. 656 CFM. 120 VAC. 3 speed. 1-2 Days $181.30
Ruck 8" Prime HO Ruck 8 inch Prime HO series fan. SKU 147590. 946 CFM. 120 VAC. 3 speed. 1-2 Days $256.00
Ruck 10" Prime Ruck 10 inch Prime series fan. SKU 147491. 1015 CFM. 120 VAC. 3 speed. 1-2 Days $202.90
Ruck 12" Prime Ruck 12 inch Prime series fan. SKU 147509. 1684 CFM. 120 VAC. 1-2 Days $358.10
Ruck 14" Prime Ruck 14 inch Prime series fan. SKU 147527. 1758 CFM. 120 VAC. 3 speed. 1-2 Days $553.00
Ruck 14" Prime HO Ruck 14 inch Prime HO series fan. SKU 147536. 3340 CFM. 240VAC. 3 speed. 1-2 Days $673.70
Ruck 16" Prime Ruck 16 inch Prime series fan. SKU 147545. 2429 CFM. 240VAC. 3 speed. 1-2 Days $903.80
Ruck 18" Prime Ruck 18 inch Prime series fan. SKU 147554. 3634 CFM. 240VAC. 3 speed. 1-2 Days $1148.70
Ruck 20" Prime Ruck 20 inch Prime series fan. SKU 147563. 4595 CFM. 240VAC. 3 speed. 1-2 Days $1293.10
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

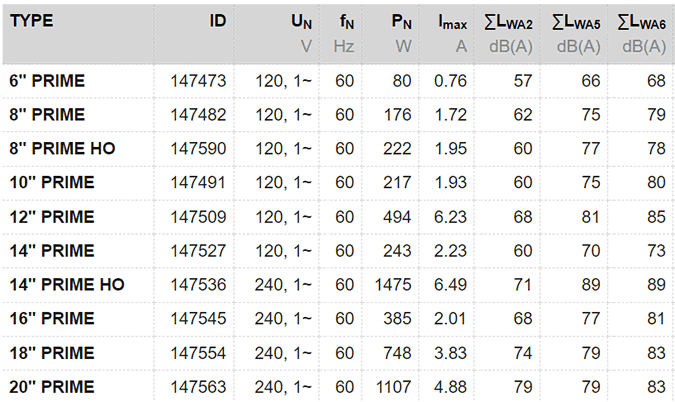

SPECIFICATIONS:

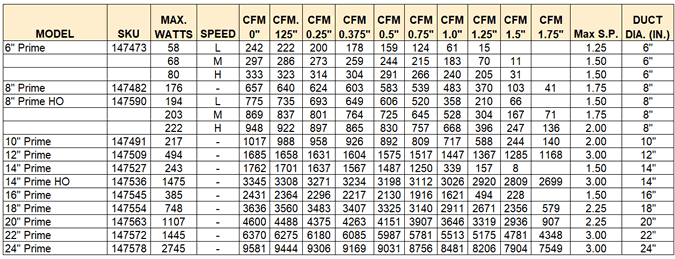

ruck prime fan cfm

ruck prime fan specifications



ruck prime fan

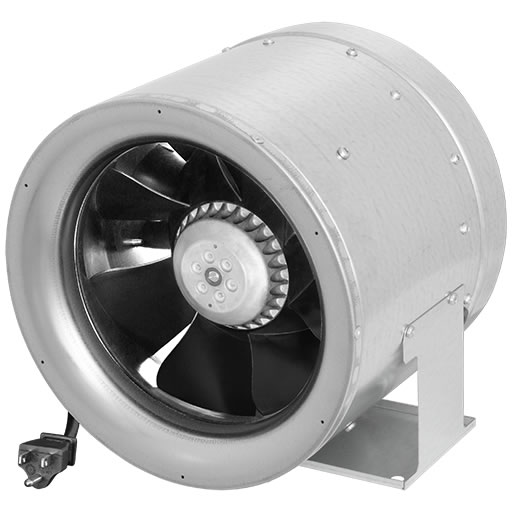

RUCK PRIME 8 INCH FAN SHOW IN PICTURE. FAN DESIGN VARIES WITH MODELS.  SEE SPEC SHEETS.



PRODUCTS MARKED 'IN-STOCK' SHIP FROM OREGON (TOP MAP) OR FOR LARGER QUANTITIES FROM NORTH CAROLINA (BOTTOM MAP).  ALL OTHER ITEMS SHIP FROM NC.

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!
