Fantech prioAir AC and EC Inline Duct Fans

The prioAir series is designed for installation in ducts. Extremely efficient, prioAir fans are perfect for a wide assortment of quiet air-moving applications. Compact size, low noise, very high efficiency and air tight casing.

The prioAir EC fan motor's speed is controlled via a 0-10Vdc signal (MTP 10 controller)The motor can also be controlled by an externally-provided 0-10Vdc signal that can comefrom any device or a Building Management System (BMS). The fan's motor also provides operational speed (tachometer pulse) output that can be used to verify fan operation.

The prioAir standard AC motor models may be controlled via a solid state speed controller such as the WC 15 rotary switch.

model description usually ships price QTY
prioAir 6 Fantech prioAir inline duct fan. 295 CFM, 115/1/60. 6 inch duct connections. 1 Day. In Stock $139.00
prioAir 6 EC Fantech prioAir inline duct fan. 443 CFM, 115/1/60 EC MOTOR. 6 inch duct connections. 1 Day. In Stock $189.00
prioAir 8 Fantech prioAir inline duct fan. 646 CFM, 115/1/60. 8 inch duct connections. 1 Day. In-stock $179.00
prioAir 8 EC Fantech prioAir inline duct fan. 791 CFM, 115/1/60. 8 inch duct connections. 1 Day. In Stock $259.00
prioAir 10 Fantech prioAir inline duct fan. 1380 CFM, 115/1/60. 10 inch duct connections. 1 Day. In Stock $364.00
prioAir 10 EC Fantech prioAir inline duct fan. 1237 CFM, 115/1/60. 10 inch duct connections. 1 Day. In Stock $458.00
MTP 10 Fantech potentiometer (10k Ohm) for speed controlling EC fans. Can be used for inset mounting as well as for surface mounting. 1 Day. In-stock $53.10
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

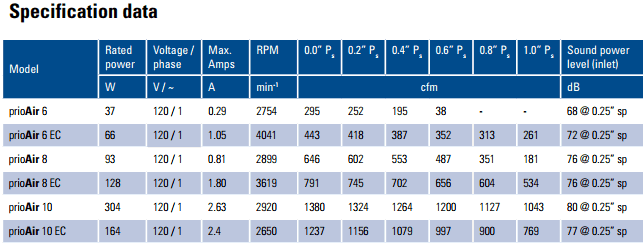

fantech prioair fan specifications

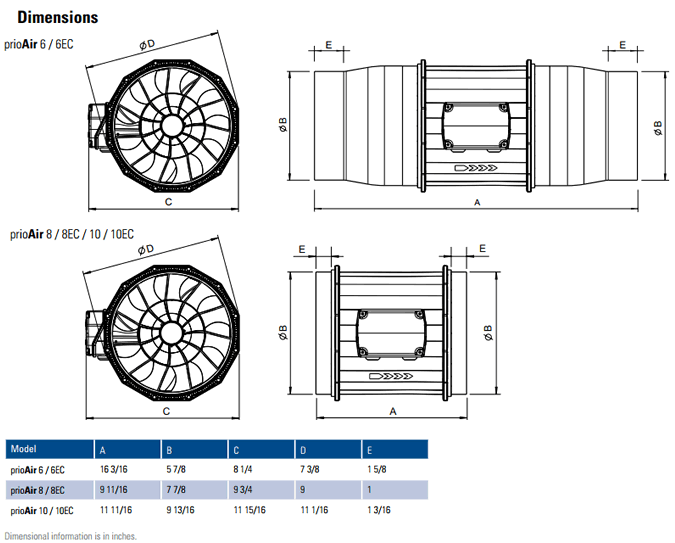

fantech prioair fan dimensions

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Does the fan have any steel in it?
A:   Yes, motor and shaft components will have steel content.

       Asked on 2018-07-10 by Pam
