Primex SV Series Low Profile Soffit Vents

The Primex Soffit Vent Series (SV Series) consists of low-profile, durable exhaust solutions for a range of applications. The UV-stabilized, one-piece design eliminates leaky seams. A one-way damper prevents rodents and debris from entering the home while effectively exhausting moisture. The SV Series offers three models for standard 4, 5 or 6-inch ducting and an aesthetically-pleasing termination.

FEATURES

• Low profile, one-piece design is less obtrusive than traditional vents.
• Choose from three different models for either 4", 5" or 6" ducting.
• Can be used in new or retrofit applications.
• No leaky seams on the vent hood.
• Made from durable, UV-stabilized Polymer resin.
• Lightweight and easy to install.
• Available in Snow White (-01) and Taupe (-23).

model description usually ships price QTY
SV4-01 Primex soffit vent. 4 inch collar. NO screen. With backdraft damper. WHITE color. 1 Day. In-stock $11.90
SV4-23 Primex soffit vent. 4 inch collar. NO screen. With backdraft damper. TAUPE color. 1 Day. In-stock $11.90
SV4-25 Primex soffit vent. 4 inch collar. NO screen. With backdraft damper. BLACK color. 1 Day. In-stock $11.90
SV5-01 Primex soffit vent. 5 inch collar. NO screen. With backdraft damper. WHITE color. 1 Day. In-stock $12.00
SV5-23 Primex soffit vent. 5 inch collar. NO screen. With backdraft damper. TAUPE color. 1 Day. In-stock $12.00
SV5-25 Primex soffit vent. 5 inch collar. NO screen. With backdraft damper. BLACK color. 1 Day. In-stock $12.00
SV6-01 Primex soffit vent. 6 inch collar. NO screen. With backdraft damper. WHITE color. 1 Day. In-stock $17.10
SV6-23 Primex soffit vent. 6 inch collar. NO screen. With backdraft damper. TAUPE color. 1 Day. In-stock $17.10
SV6-25 Primex soffit vent. 6 inch collar. NO screen. With backdraft damper. BLACK color. 1 Day. In-stock $17.10
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

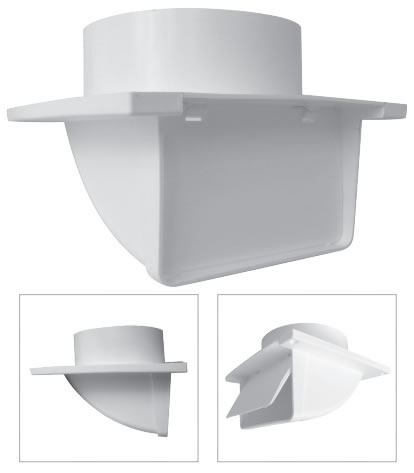

Primex SV soffit vent

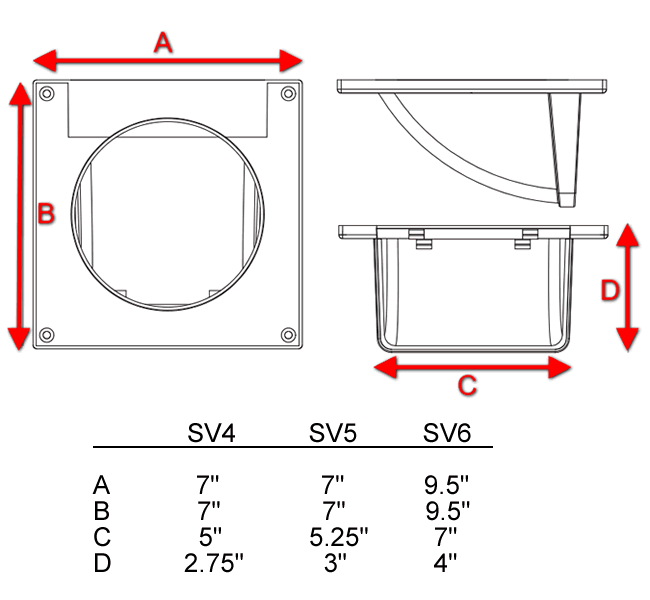

Primex SV soffit vent dimensions



Stocked in both Oregon and New York state. See transit maps below.

Some products might ship from multiple warehouses.

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can these be painted?
A:   Yes they can. Quite good texture to accept paint very well.

       Asked on 2022-12-03 by Rob
#2 Q:   Do you guys have 4 duct size with 4 opening? My codes require a 4 opening on dryers
A:   For soffit vents only the round 4 inch inlet and rectangular outlet are available. You might want to check again with your code people as these are commonly used.

       Asked on 2022-07-25 by North carolina
#3 Q:   what is the SV4-01 square inch opening my building code in florida requires 12.5 square inch
A:   12.6 square inches free area per their spec sheet. https://www.hvacquick.com/catalog_files/Primex_SV_Specs.pdf

       Asked on 2021-09-09 by ryan
#4 Q:   Would the 6 version of this be sufficient to vent a 400 cfm range hood? Or would the larger version be recommended?
A:   Yes. The recommended max for the 6 inch caps is around 425 cfm.

       Asked on 2021-08-15 by Cory
#5 Q:   Can it handle 350 cfm of air?
A:   Yes, but you would definitely have to use the biggest 6 inch version for that cfm.

       Asked on 2019-12-20 by Paul
#6 Q:   Can this device be installed vertically?
A:   The backdraft damper on this cap closes via gravity. It would not close if you install the cap vertically with the opening downwards.

       Asked on 2019-10-22 by Chris
#7 Q:   Is the sv4-01 good for 4 bathroom exhaust and how large is the diameter?
A:   The SV4 has a 4 inch collar slightly undersized so you can standard fit duct over it. Its often used for bath exhaust.

       Asked on 2019-10-19 by Gary
#8 Q:   Are these used for dryer vents?
A:   Yes, these can be used as dryer vents.

       Asked on 2019-07-12 by John
#9 Q:   In a retrofit, is this screwed to a soffit panel? Is it light enough to be screwed to the typical thin aluminum? Thanks.
A:   It is screwed to soffit panel and is plenty light enough to hang so it will not be a problem.

       Asked on 2019-05-28 by Lew
#10 Q:   Is there a spring or other mechanism to close the door or does it use gravity only?
A:   Gravity only.

       Asked on 2019-03-12 by H
#11 Q:   What are the dimensions for the SV4/5/6-01?
A:   We added the dimensions under the Pictures/Specs tab on the page.

       Asked on 2018-05-24 by Rick Toppa
#12 Q:   Can this vent be used as a dryer vent
A:   Yes, it can.

       Asked on 2018-02-15 by jack
#13 Q:   Is there a bird screen for this vent?
A:   No. The units are available with the flapper damper only.

       Asked on 2017-08-08 by Louisville
#14 Q:   Can this vent be used for kitchen range vent application?
A:   Yes, its fine for a standard residential kitchen exhaust system.

       Asked on 2017-04-12 by Vince
