MRCOOL DIY 4th GEN Ductless Mini Split Air Conditioner And Heat Pump

Introducing the latest in home comfort technology, with the 4th Generation MRCOOL DIY Ductless Heat Pump Systems. This powerful single-zone system has the capability of heating and cooling the space. It comes complete with a condenser, indoor air handler, and a 25 ft. line set pre-charged with R-410A refrigerant. The line set also has quick connectors which require no special tools, equipment, or training to install. The MRCOOL DIY system also includes many features that make it stand out among its competitors. The first of which is its ability to achieve an outstanding 22 SEER efficiency (DIY-12 unit) rating allowing it to be Energy Star certified.

This system has many operating modes to select from to suit the needs of the user, including HEAT, COOL, DRY (dehumidification), and SLEEP. It also has the Follow Me function that adjusts the temperature of the room based on the temperature being read by the hand-held remote control. The DIY features the convenience of being able to operate its modes and functions with your smartphone by using the Smart HVAC app. The MRCOOL mini split is the only system on the market to offer a limited lifetime compressor warranty.

Features:

  • Easy DIY installation
  • Gold Fin condenser: corrosion-resistant for coastal applications
  • Variable-speed DC inverter compressor technology cuts operating costs
  • R-410A environmentally friendly refrigerant
  • Standard 7-year compressor/5-year parts warranty. Register for limited lifetime compressor warranty
model description usually ships price QTY
DIY-12-HP-WM-115C25 MrCool DIY 4th Gen E Star single zone 12K BTU heat pump. Includes condenser (DIY-12-HP-C-115C25), wall mount air handler (DIY-12-HP-WMAH-115C25) and 25 ft quick-connect line set. 115V/60Hz, 22 SEER with WiFi. White. 2-3 Days $1738.00
DIY-18-HP-WM-230C25 MrCool DIY 4th Gen E Star single zone 18K BTU heat pump. Includes condenser (DIY-18-HP-C-230C25), wall mount air handler (DIY-18-HP-WMAH-230C25) and 25 ft quick-connect line set. 208-230V/60Hz, 22 SEER with WiFi. White. 2-3 Days $2156.00
DIY-24-HP-WM-230C25 MrCool DIY 4th Gen E Star single zone 24K BTU heat pump. Includes condenser (DIY-24-HP-C-230C25), wall mount air handler (DIY-24-HP-WMAH-230C25) and 25 ft quick-connect line set. 208-230V/60Hz, 20.5 SEER with WiFi. White. 2-3 Days $2502.00
DIY-36-HP-WM-230C25 MrCool DIY 4th Gen E Star single zone 36K BTU heat pump. Includes condenser (DIY-36-HP-C-230C25), wall mount air handler (DIY-36-HP-WMAH-230C25) and 25 ft quick-connect line set. 208-230V/60Hz, 18 SEER with WiFi. White. 2-3 Days $2888.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

MrCool DIY heat pump specifications



MrCool DIY heat pump system



MrCool DIY air handler



MrCool DIY heat pump condenser


Links:

Catalog Sheet (PDF file)

Installation Manual (PDF file)

Technical Manual (PDF file)

Warranty Sheet (PDF file)

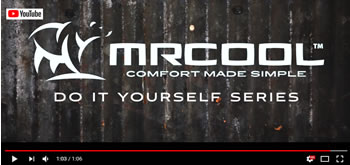

DIY Unboxing Video (click for youtube.com video):



Installation Video (click for youtube.com video):

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can the wall unit be installed on a ceiling? Perhaps I could access the full installation manual?
A:   There are units with ceiling mount units, but these cannot be mounted in that that orientation. Link to intall manual here: https://hvacquick.com/catalog_files/MrCool_DIY_4GEN_IOM.pdf

       Asked on 2023-10-16 by Martin McEnroe
