Fantech FKD Series 230V MOTOR Inline Centrifugal Fans

Fantech FKD direct drive, mixed flow centrifugal fans blend the high flow of axial fans with the higher pressure, non-overloading characteristics of backward curved impellers. An excellent choice for exhaust or supply applications where quieter performance and easy installation are important.

  • 230 VAC MOTORS
  • Mixed flow impeller
  • Can be installed in any position
  • Galvanized steel housing
  • Three-year warranty
  • Certified by AMCA Air, AMCA Sound and cULus

NOTE SOME MOTORS ARE 1 PHASE AND SOME 3 PHASE.

model description usually ships price QTY
FKD 8XL-230 Fantech FKD Inline Fans. Metal housing. 8" Round duct. 819 CFM. 230/1/60 MOTOR. 2-3 Weeks $658.20
FKD 10-230 Fantech FKD Inline Fans. Metal housing. 10" Round duct. 874 CFM. 230/1/60 MOTOR. 2-3 Weeks $695.80
FKD 10XL-230 Fantech FKD Inline Fans. Metal housing. 10" Round duct. 1265 CFM. 230/1/60 MOTOR. 2-3 Weeks $768.60
FKD 12-230 Fantech FKD Inline Fans. Metal housing. 12" Round duct. 1290 CFM. 230/1/60 MOTOR. 2-3 Weeks $799.80
FKD 12XL-230 Fantech FKD Inline Fans. Metal housing. 12" Round duct. 1946 CFM. 230/1/60 MOTOR. 2-3 Weeks $924.60
FKD 14-230 Fantech FKD Inline Fans. Metal housing. 14" Round duct. 2071 CFM. 230/1/60 MOTOR. 2-3 Weeks $997.30
FKD 14XL-230 Fantech FKD Inline Fans. Metal housing. 14" Round duct. 2739 CFM. 230/1/60 MOTOR. 2-3 Weeks $1489.40
FKD 16-230 Fantech FKD Inline Fans. Metal housing. 16" Round duct. 2915 CFM. 230/1/60 MOTOR. 2-3 Weeks $1517.40
FKD 16XL-230/460 Fantech FKD Inline Fans. Metal housing. 16" Round duct. 4204 CFM. 230-460/3 MOTOR. 2-3 Weeks $2079.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

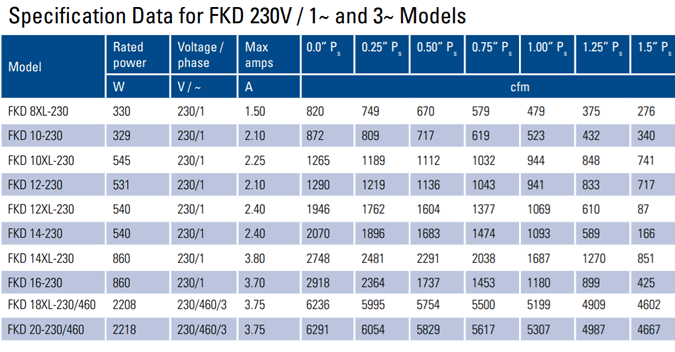

fantech fkd 230V specifications



fantech fkd dimensions

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   The FKD-14 model shows the A dimension size as 14 and the A1 dimension size as 12 but doesnt indicate which one is the inlet side or the outlet side. Which direction does the airflow go on this fan?
A:   The intake is stepped 12/14 side and the non stepped end is the discharge.

       Asked on 2022-09-14 by AA
