Wall Hoods Stainless Steel
Stainless steel wall hoods for exhaust air applications. Perfect for coastal or high moisture applications. Made in the USA from all 304-2B grade stainless steel material. Note the bug screen (if included) and backdraft damper (flapper) are also made from stainless steel.
Besides the looks, these wall hoods are designed to get air out of your building, while keeping moisture and the elements at bay.

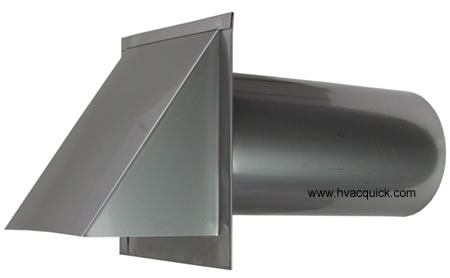

4" HOOD

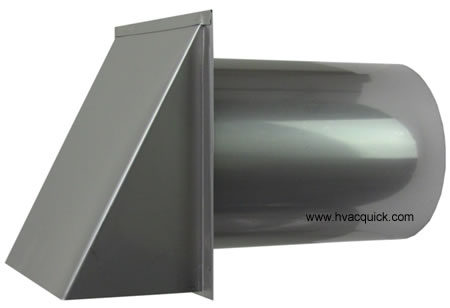

6" HOOD

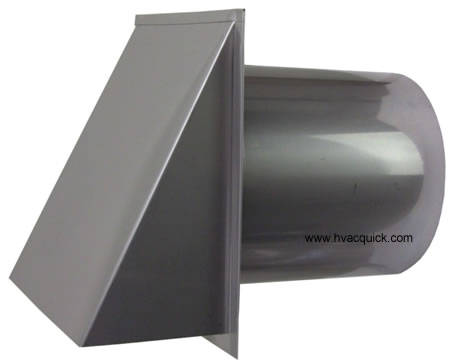

8" HOOD
 |
Do you have questions about the products on this page? Click on the ? image on the left or this link to ask us your questions! |
| #1 | Q: Is the moving damper circular or rectangular/square? A: The damper is rectangular and sits in the hood portion. Asked on 2022-10-13 by hood431 |
|---|---|
| #2 | Q: Looking to utilize for range exhaust application in salt air (at beach). How well does the stainless hold up to that environment (rust, corrosion, etc) A: Its stainless so corrosion should not be an issue. We see these used often in coastal environments. Asked on 2020-10-05 by Eugene |
| #3 | Q: Can the damper be removed for intake application such as an ERV/HRV, or otherwise purchased without a damper? A: We do not sell them without the damper but we have had customers put a screw through the hood/damper to lock the damper open or tape the damper open for intake applications. Asked on 2020-07-06 by Gene |
| #4 | Q: SDWVSS4, what is the length of the duct into the wall? A: 5 inches. Asked on 2020-02-09 by Lou |
| #5 | Q: how long is the attached duct? A: 5 Inches. Asked on 2019-03-07 by ISS |
| #6 | Q: Do these wall hoods have spring? A: No, the flapper is gravity only. Asked on 2018-08-29 by dan |
| #7 | Q: Is the damper magnetic A: No, gravity only. Asked on 2017-10-22 by JYC |
| #8 | Q: Outside dimensions of the 6 wall cap? A: The flat plate is 8x8 inches, and it protrudes just over 4 inches from the wall. Asked on 2017-07-19 by Chris |
| #9 | Q: what is the gauge of the stainless steel? A: 26 gauge stainless is used on these caps. Asked on 2017-02-15 by Todd |
| #10 | Q: Is there a damper included with the 8 stainless Steel wall hood with the bug screen. A: Yes, there is a built-in backdraft damper. Asked on 2016-05-29 by Loiuus |
| #11 | Q: What are the external dimensions of the 8 inch hood, specifically:
1) how far does it stick out ?
2) what are the dimensions of the foot print on the wall ?
Thank you. A: The footprint is 11x11 and it protrudes 5 inches. Asked on 2013-11-22 by John M |
| #12 | Q: how far does the hood stick out? A: Anywhere from 2 3/4 inches on the 4 inch unit to 8 3/4 on the 12 inch one. Asked on 2013-08-29 by ms |
| #13 | Q: what are the exterior dimensions of the 4 inch? A: The face of it is 6 inches wide, by 6.5 inches tall. Asked on 2013-08-28 by MS |
