Broan AI Series Energy Recovery Ventilators (ERV) With Side Ports

Broan AI Series Energy Recovery Ventilators (ERV) With Side Ports

The Broan AI series is the most advanced residential energy recovery (ERV) fresh air system on the market. This unit features the VIRTUO™ Air Technology which is specifically designed to provide fresh air in any season and in any installation situation. Easy installation combined with auto-balancing means fresh, filtered, comfortable air without the need for specialized measurement tools or added install time.

Features:

  • Energy recovery (ERV) with SIDE PORTS
  • By continuously monitoring changing indoor and outdoor conditions, the AI Series with VIRTUO™ Air Technology, provides fresh, filtered and healthy air throughout the home
  • MERV 8 filters are installed standard.  An optional MERV 13 filter upgrade is available
  • Powerful, reliable and quiet PMSM ECM fan motors provide up to 60% energy savings compared to other units on the market
  • Selectable airflow speed range via the optional controls
  • Unit setup, balancing and diagnostics are made easy with complete control using the integrated LCD screen providing real-time airflow measurements, automatic system balancing and simple diagnostic codes
  • Can be used to comply with California Title 24, Part 6 Fault Indicator Display Requirements when paired with any of these Broan main controls: VTTOUCHW, VAUTOW, VTSPEEDW, VTDEHUMW

Additional optional controllers are available from the Broan AI Controls product page linked below.

model description usually ships price QTY
B130E65RS Broan AI Series ERV. 5 inch SIDE PORTS. 131 CFM @ 0.2 in. WG. 67% SRE @ 32F. 1 Day. In-stock $1089.00
B150E75NS Broan AI Series ERV. 5 inch SIDE PORTS. 136 CFM @ 0.2 in. WG. 75% SRE @ 32F. 1 Day. In-stock $1279.00
B160E65RS Broan AI Series ERV. 6 inch SIDE PORTS. 150 CFM @ 0.2 in. WG. 67% SRE @ 32F. 1 Day. In-stock $1209.00
B160E75RS Broan AI Series ERV. 6 inch SIDE PORTS. 140 CFM @ 0.2 in. WG. 75% SRE @ 32F. 1 Day. In-stock $1289.00
B210E75RS Broan AI Series ERV. 6 inch SIDE PORTS. 210 CFM @ 0.2 in. WG. 81% SRE @ 32F. Backorder $1489.00
VTTOUCHW Broan AI Series touch screen wall controller. Speed, dehumidistat, scheduling and smart mode selector. 1 Day. In-stock $149.00
V24285 Broan AI Series optional MERV 13 filter. B110 to B160. 1 Day. In-stock $59.00
V24300 Broan AI Series optional MERV 13 filter. B180 to B230. 1 Day. In-stock $69.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page


Unit Sizing Guide:

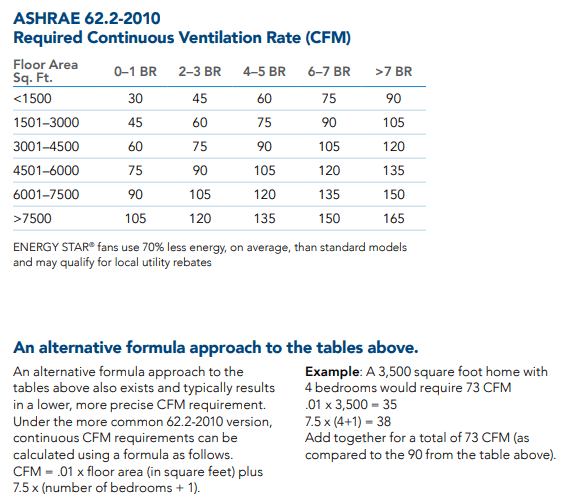

Broan AI Series Sizing

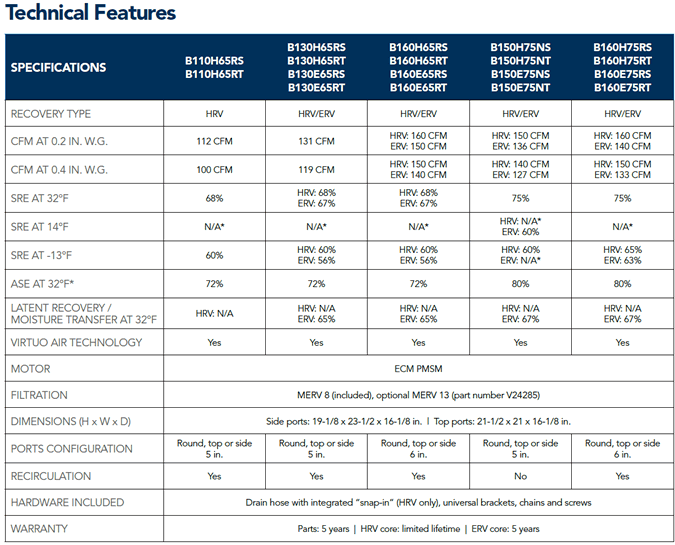

Broan AI Series Specifications

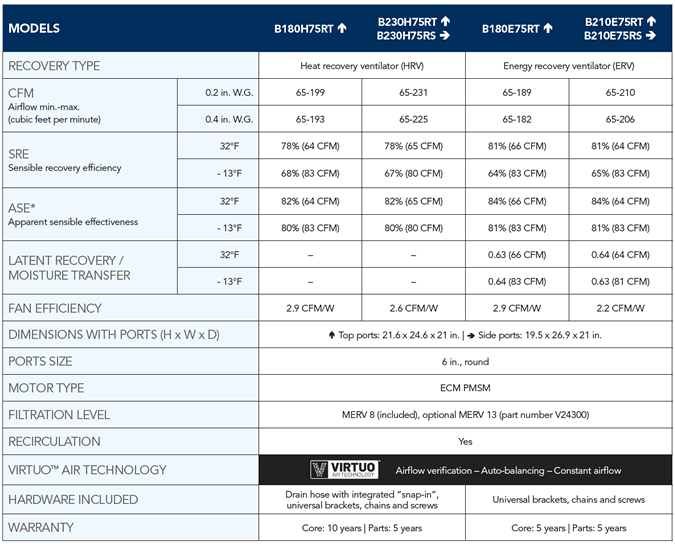

Broan AI Series Large Unit Specifications



Stocked in both Oregon and New York state. See transit maps below.

Some products might ship from multiple warehouses.

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!
