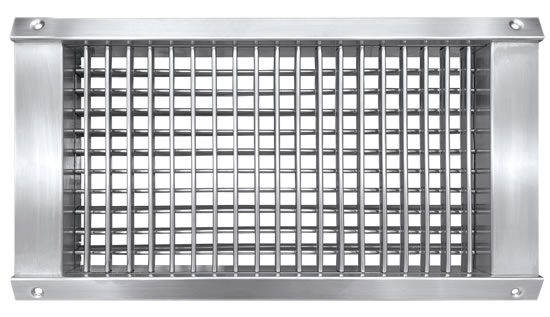

Dayus DAUSVH Double Deflection Spiral Grilles

Dayus DAUSVH Double Deflection Spiral Grilles

The DAUSVH is designed to be installed on round or spiral ducts without the use of transition ductwork. This Universal Spiral grille is ideal for exposed round and spiral duct mounting to enhance architectural appeal and maintain excellent performance.

Features:

  • Individually adjustable vertical front and horizontal rear blades with 2/3" spacing
  • Roll-formed aluminum blades with semi-airfoil design
  • Pressure-fit nylon pivot pins provide rattle-free performance
  • High-quality aluminum extruded frame
  • Sealing gasket standard for tight seal to duct
  • Rear mullion used for dimensions over 18" in length
  • No Air Scoop or Opposed Blade Damper
  • Available with durable powder coat finish.
Type/Style:
LIST* Length:
LIST* Height:

*NOTE: The LIST Length/Height is the size of the OPENING. See cut-sheet for undercut and MAX GRILLE HEIGHT info.
Finish:      Dayus Color Chart

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.
Mounting: With Screw Holes
No Screw Holes (not typically used)
Production: Standard Production (3-4 Weeks)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production



Model Number:
DAUSVH-14-6-White-STD
Total Price (each): $ 80.64
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket). 		Quantity:

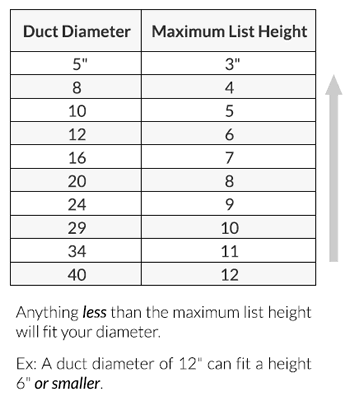

Note the MAXIMUM list height that can be used for a specific duct diameter below.

dayus dausvh spiral diffuser sizing

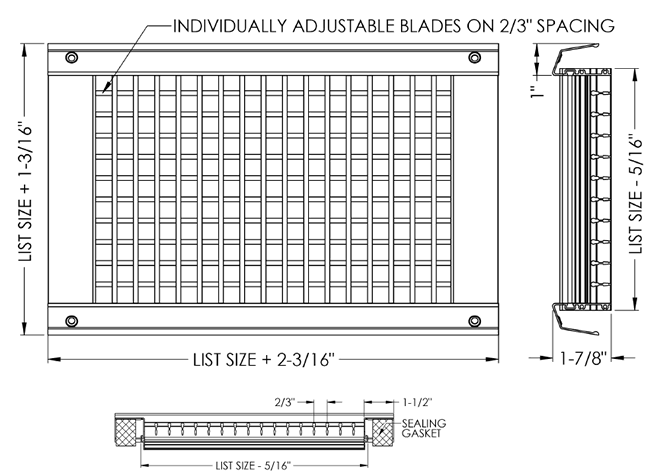

dayus dausvh spiral diffuser specifications
