AirScape Inline Metal Cased Heavy Duty Fans (up to 280cfm)

High quality metal cased inline fans suitable for continuous operation.

  • 112 to 276 cfm fan sizes
  • Centrifugal fan delivers high static pressure
  • Factory mounted POWER CORD
  • Galvanized steel housing
  • Mounting bracket included
  • 3 year warranty
  • Call our techs for application advice
model description usually ships price QTY

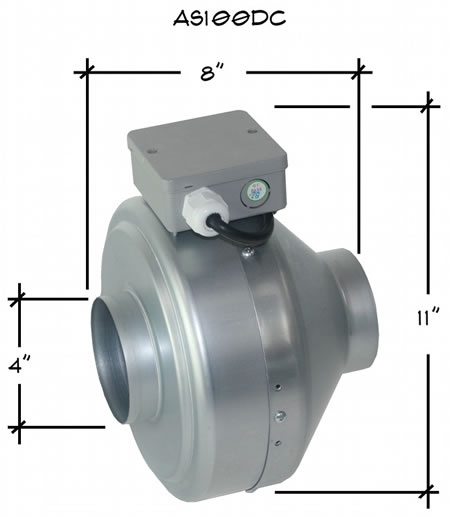

AS100DC AirScape inline centrifugal fan. 112 nominal CFM. 4 inch connections. Motorized impeller, galvanized steel casing, and 10 foot power cord. 1 Day. In-stock $69.00
AS100DC-W AirScape inline centrifugal fan. 112 nominal CFM. 4 inch connections. Motorized impeller, galvanized steel casing, and 10 foot power cord. Powdercoated white 1 Day. In-stock $79.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

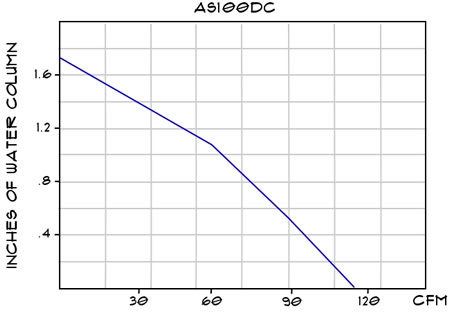

Airflow: 112 CFM (at 0" WC)
Max. Static Pressure:
1.7" WC
Casing: Galvanized Steel
Electrical: 120 VAC, 60hz, 0.5 Amps
Power: 60 Watts
Warranty: 3 Years

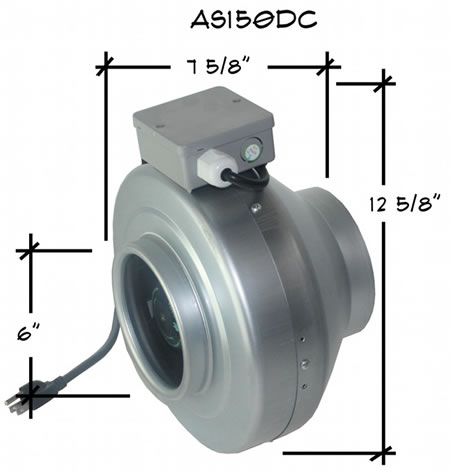

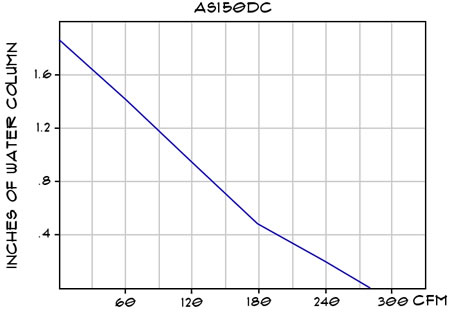

Airflow: 276 CFM (at 0" WC)
Max. Static Pressure:
1.8" WC
Casing: Galvanized Steel
Electrical: 120 VAC, 60hz, 0.61 Amps
Power: 70 Watts
Warranty: 3 Years

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   What is the maximum allowable temperature of air?
A:   As with most inline fans, the maximum exposed temperature is 140 degrees F.

       Asked on 2013-09-16 by Mohammad
#2 Q:   Is AS100DC a variable speed fan? I am looking for a variable-speed fan with up to 200 cfm. The outer diameter is 4. Please advise.
A:   This fan is variable speed and compatible with any motor rated speed control...The 100DC is only 112CFM and the casing is 11 inches around including the wiring box.

       Asked on 2013-09-16 by Mohammad
#3 Q:   What is the temperature rating on this product?
A:   These fans can handle airstreams of up to 140 degrees.

       Asked on 2013-07-02 by Brian
