Dayus DALD4-CF 4 Inch Drainable Louver with Channel Frame

Dayus DALD4-CF 4 Inch Drainable Louver with Channel Frame

The Dayus DALD4-CF is an architectural stationary louver designed with a sleek channel frame and drainable blades that effectively minimize water penetration. This louver features a robust 4-inch deep frame constructed from high-quality extruded aluminum, ensuring durability and resistance to environmental factors. With an impressive 58% free area, it ensures optimal airflow while maintaining a modern, streamlined appearance.

Features:

  • 4" drainable louver with fixed-blades
  • Heavy-duty, extruded aluminum channel frame
  • Drainable blades with vertical jamb gutter minimizes water ingress while maximizing free area
  • Concealed mullions used for sizes over 48" in length for clean, continuous appearance
  • Bird screen included standard. Insect screen can be specified as an option
  • High quality powder coat paint (AAMA 2604). Architectural grade finish available (AAMA 2605)
  • Available on 1" increments as standard. Custom sizes down to 1/16" increments
  • Multi piece construction for sizes over 72"
Type/Style:
LIST* Width:
LIST* Height: Please select WIDTH above first

*NOTE: The LIST width and height are the size of the OPENING the louver fits into.
Finish:      Dayus Color Chart

**MILL Finish is raw unfinished aluminum and will have scratches/scuffs/imperfections from the manufacturing process.
Production: Standard Production (3-4 Weeks - Least Expensive)
Friday Next Production (Not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday)
3-Day Express Production - ONLY available for Mill finish
Bug Screen: Standard Bird Screen Only
Optional Bug/Insect Screen



Model Number:
DALD4~CF
Total Price (each): $ 0.00
Note: Dayus products are made-to-order. They are NON-RETURNABLE
         and the order cannot be cancelled once in production. The minimum
         order amount is $45 (will be reflected in the basket). 		Quantity:

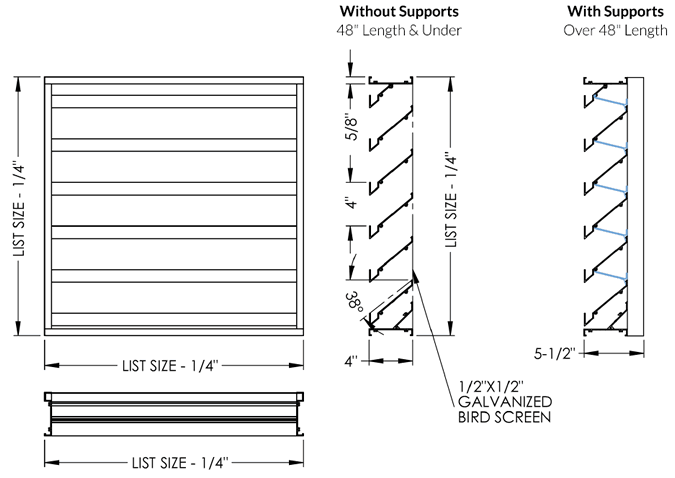

Dayus DALD4-CF louver specifications

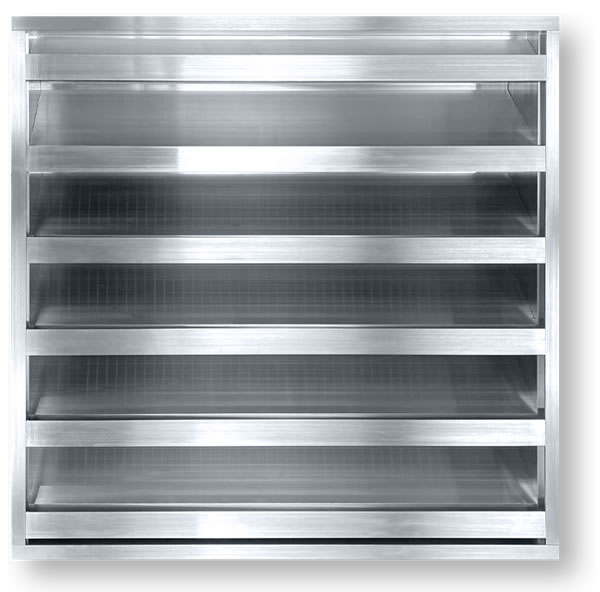

Dayus DALD4-CF louver in mill



Finish Colors:

   White    Silver    Mill    Brown Black (Flat Black)
