S&P Series GMD Heavy Duty Galvanized Steel Motorized Damper

S&P Series GMD Heavy Duty Galvanized Steel Motorized Damper

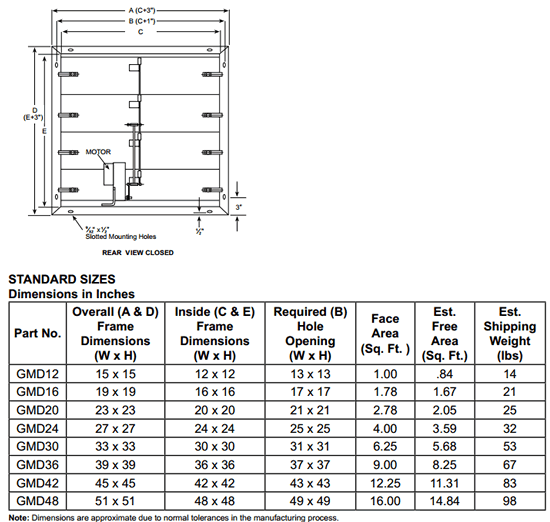

Models GMD are heavy duty motorized volume control dampers. The 1-1/2" flanged frame has welded corners for added strength. The 6" wide blades are center-pivoted for a full 90 deg rotation with parallel blade action. The dampers can be used for exhaust or supply applications and can be mounted in either a vertical or horizontal position; typically walls or curbs. Galvanized Steel (GMD) series comes standard with an internally mounted factory installed 120/240 volt power open / spring close motor with an end switch.

FEATURES:
• 2" deep x 11/2” flanged x 14 gauge Galvanized Steel frame.
• 6" wide x 16 gauge Galvanized Steel blades. Parallel Blade Action.
• 3,500 fpm Maximum Velocity.
• 4" wg Maximum Pressure.
• 122 Degree Maximum Temperature.

model description usually ships price QTY
GMD12 S&P 12" X 12" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $481.60
GMD16 S&P 16" X 16" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $488.60
GMD20 S&P 20" X 20" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $502.60
GMD24 S&P 24" X 24" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $521.30
GMD30 S&P 30" X 30" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $813.50
GMD36 S&P 36" X 36" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $931.20
GMD42 S&P 42" X 42" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $1085.50
GMD48 S&P 48" X 48" series GMD HD galvanized damper with motor. Max velocity of 3500 FPM. 5-6 Weeks $1147.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

S&P GMD Motorized Dampers

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can this be order custom size 39.5 by 97?
A:   Unfortunately no. Only the listed sizes are available.

       Asked on 2019-07-23 by A
