AirScape SFB-V Series MERV-13 V-Bank Inline Filter Boxes

The AirScape SFB-V v-bank filter boxes are a high-performance solution for any application requiring in-line filtration and a low pressure drop.  The white painted aluminm casing and door/filter area gaseketing ensure an ultra low leakage design. The access lid attaches securely with latches, and opens easily for quick filter replacements. The first set of MERV-13 filters is included with every unit.

Large orders are welcome. Please call us for more information or for resale opportunities.

Features:
- Ultra low leakage design
- Gasketed door and filter contact area
- 'V' bank design has greater filter area
- Large filter area => lower pressure drop and large dust holding capacity
- White painted aluminum casing

*** INTRODUCTORY SALE PRICING ON SFB-V-10x10 & SFB-FAN COMBOS ***

model description usually ships price QTY
SFB-V-10x10 AirScape SFB-V series v-bank inline filter box. For 8 inch ducts. Includes lid and 2 MERV-13 filters. 10x10x2 inch filters. 1 Day. In-stock $159.00
SFB-V-10x10 + AS200EH-W AirScape SFB-V inline filter box AND FAN COMBO. For 8 inch ducts. Includes SFB-V-10x10 filter box, AS200EH-W speed controllable inline fan and 2 MERV-13 filters. 10x10x2 inch filters. Approx. 450 CFM. 1 Day. In-stock $219.00
SFB-V-16x16 AirScape SFB-V series v-bank inline filter box. For 12 inch ducts. Includes lid and 2 MERV-13 filters. 16x16x2 inch filters. 1 Day. In-stock $296.00
SFB-V-16x16 + AS250EH-W AirScape SFB-V inline filter box AND FAN COMBO. Includes SFB-V-16x16 filter box, AS250EH-W speed controllable inline fan and 2 MERV-13 filters. 16x16x2 inch filters. Approx. 600 CFM. Note the AS fan has 10 inch connections and will need transitions to 12 inch box. 1 Day. In-stock $390.00
SFB-V-16x25 AirScape SFB-V series v-bank inline filter box. For 14 inch ducts. Includes lid and 2 MERV-13 filters. 16x25x2 inch filters. 1 Day. In-stock $374.00
FD10X10X2-1FILTER 10x10x2 (9.5 x 9.5 x 1.75) MERV 13 filter. Replacement filter for SFB-V-10x10. 1 filter. 1 Day. In-stock $19.80
FD16X16X2-1FILTER 16x16x2 (15.5 x 15.5 x 1.75) MERV 13 filter. Replacement filter for SFB-V-16x16. 1 filter. 1 Day. In-stock $18.60
FD16X25X2-1FILTER 16x25x2 (15.5 x 24.5 x 1.75) MERV 13 filter. Replacement filter for SFB-V-16x25. 1 filter. 1 Day. In-stock $18.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

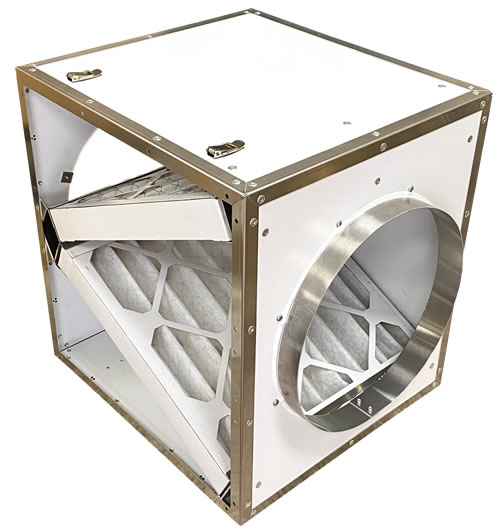

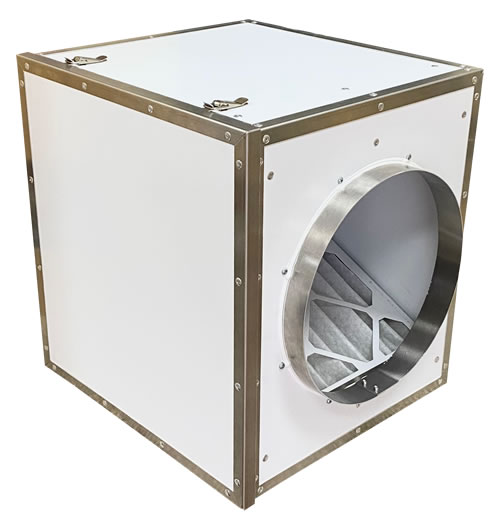

AirScape v-bank filter box closed

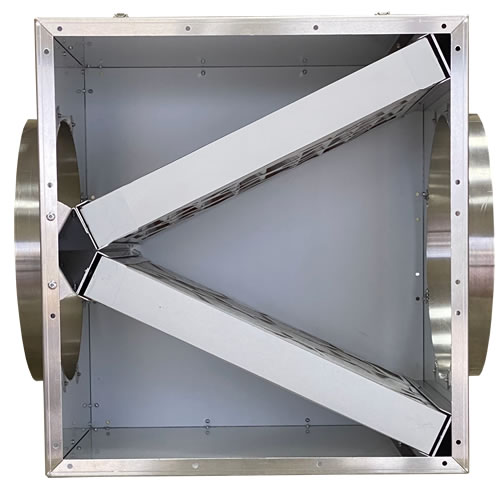

AirScape v-bank filter box open

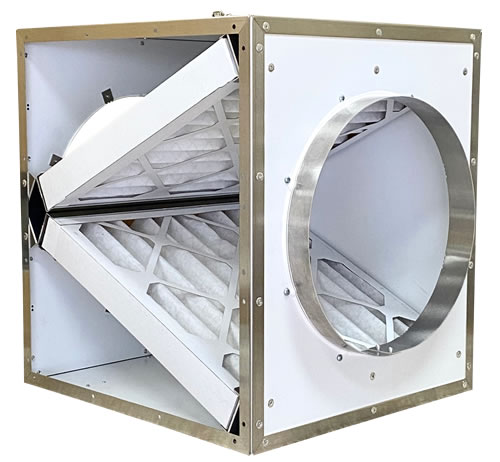

AirScape v-bank filter box

AirScape v-bank filter box


Links:

Filter Box Spec Sheet (PDF file)

Specifications:

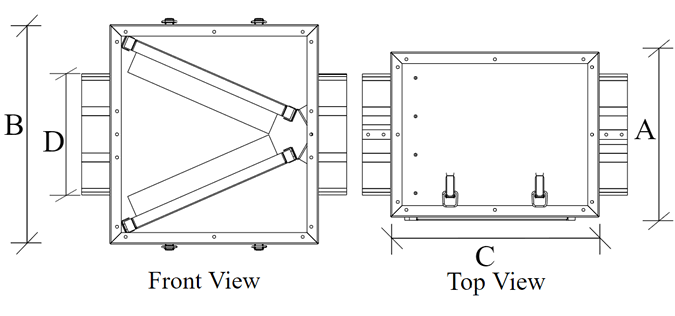

AirScape v-bank filter dimensions

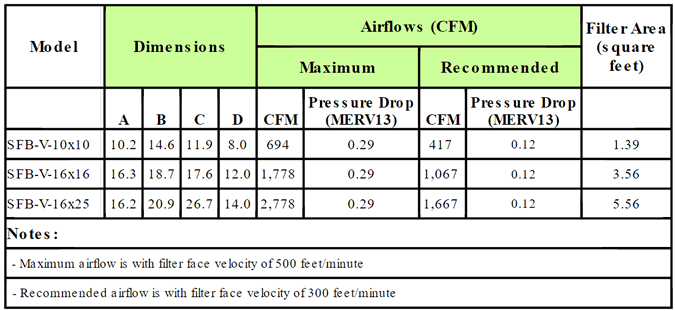

AirScape v-bank filter specifications

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   SFB-V-10x10 filter box, how much does this thing weight.
A:   The 10x10 is 8.5 lbs, the 16x16 is 15 lbs and the 16x25 is 21 lbs.

       Asked on 2022-07-11 by Alex

Related Products

HVACQuick CFB Series MERV-13 Inline Filter Boxes

Filter boxes for inline filtration. Models for 6, 8, 10 or 12 inch ducts. Aluminum construction. 4 inch MERV-13 filter included. MERV-15 (near HEPA) and carbon filters available.

HVACQuick CFB-HP Series HEPA Inline Filter Boxes

HEPA filter box for inline filtration. Aluminum construction. H13 HEPA filter and a MERV-11 pre-filter included.

HVACQuick IFB Steel Inline Filter Boxes

Filter boxes for inline filtration. Available in sizes to fit 5, 8, 10, 12 or 14-inch ducts. 22-gauge galvanized steel construction. MERV-6 polypropylene filter media.

HVACQuick IFVB Series V-Bank Insulated Inline Filter Boxes

Filter boxes for inline filtration. R5 insulated. Fits 6, 8, 10, 12, 14, 16, 18 or 20 inch ducts. Aluminum box construction. 2 inch MERV-13 filters included.

AirScape Inline Metal Cased Heavy Duty Fans (300-550 cfm)

High quality, 300 cfm to 550 cfm, inline fans suitable for continuous operation.

AirScape Inline Metal Cased Heavy Duty Fans (645-900 cfm)

High quality, 645 cfm to 900 cfm, inline fans suitable for continuous operation.
