MRCOOL Universal Series Heat Pump Systems

MRCOOL Universal Series Heat Pump Systems

The MrCool Universal Heat Pump is an easy to install air handler and slim condenser system. The quick connect fittings on the condenser and air handler allow for an easy DIY installation using MrCool's pre-charged lines.  The lines are available in lengths from 15 to 50 feet.  The system is available in 2 models:  2/3 ton and 4/5 ton capacity models.  The selection between the 2 capacities is done in the field via a dip switch setting.

Air Handler Features:

  • R410A Factory Pre-Charged
  • High Efficient Energy Saving DC Fan Motor
  • Multi-Position Installation (Upflow, Horizontal)
  • Internal Fan Blade Creates Low Noise
  • The Special Fire-Proof Electrical Box Design Offers
  • Easy to Clean Metal Filter Protects Against Fire, Corrosion, and Deterioration

Condenser Features:

  • Gold Fin Corrosion Protection
  • Variable Speed
  • Rapid Cooling and Heating
  • 100% Heating Capacity Down to -5°F (2T) 14°F (4T)
  • 100% Cooling Capacity Up to 115°F (2T) 109.4° (4T)
  • Low Ambient Cooling Down to 5°F
  • Quiet 55-58dB(a) Operation
  • Compatible With Any Third Party Air Handler and Thermostat
  • Slim Design
model description usually ships price QTY
MDU18024036 MrCool Universal Series Heat Pump Complete System. High ESP air handler (MDUI18024036E) and heat pump condenser (MDUO18024036). 2-3 Ton (24,000-36,000 BTU) capacity, dip switch selectable on site. Up to 20 SEER. 208-230V/1Ph/60Hz. 2-3 Days $3555.00
MDU18048060 MrCool Universal Series Heat Pump Complete System. High ESP air handler (MDUI18048060E) and heat pump condenser (MDUO18048060). 4-5 Ton (48,000-60,000 BTU) capacity, dip switch selectable on site. Up to 18 SEER. 208-230V/1Ph/60Hz. 2-3 Days $4531.00
NV15-3834 MrCool No-Vac Quick-Connect pre-charged lineset for the Universal Series systems. R410A. 3/8 and 3/4 inch line sizes. 15ft length. 1 Day. In-stock $289.00
NV25-3834 MrCool No-Vac Quick-Connect pre-charged lineset for the Universal Series systems. R410A. 3/8 and 3/4 inch line sizes. 25ft length. 1 Day. In-stock $359.00
NV35-3834 MrCool No-Vac Quick-Connect pre-charged lineset for the Universal Series systems. R410A. 3/8 and 3/4 inch line sizes. 35ft length. 1 Day. In-stock $449.00
NV50-3834 MrCool No-Vac Quick-Connect pre-charged lineset for the Universal Series systems. R410A. 3/8 and 3/4 inch line sizes. 50ft length. 1 Day. In-stock $599.00
NVCOUPLER3834 MrCool No-Vac Quick-Connect coupler. Connect Quick-Connect line sets together. 3/8 and 3/4 inch couplers. 1 Day. In-stock $64.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

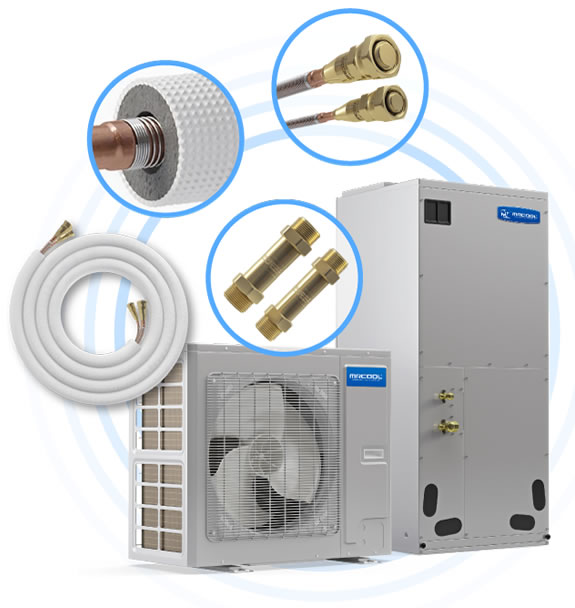

MrCool Universal System with Quick-Connects Shown:

MrCool Universal system

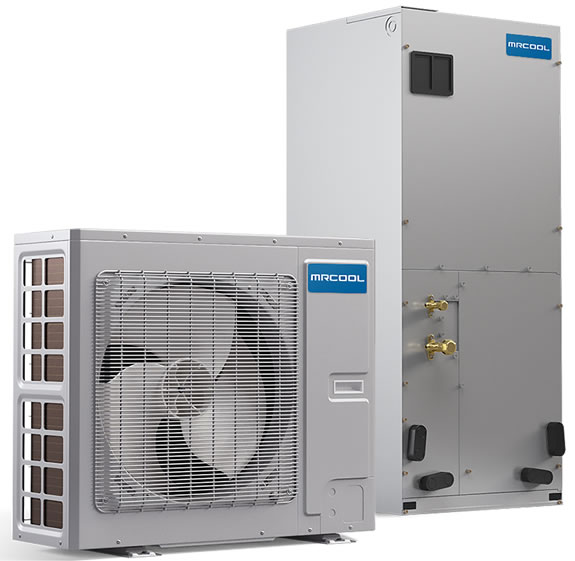

MrCool 2/3 Ton System:

MrCool Universal 2/3 ton system

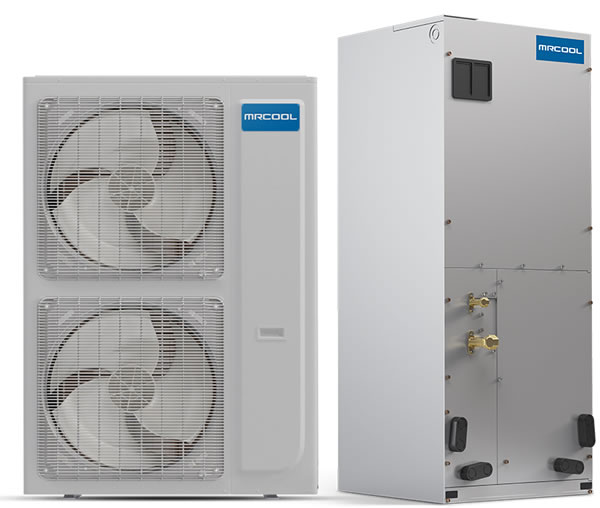

MrCool 4/5 Ton System:

MrCool Universal 4/5 ton system

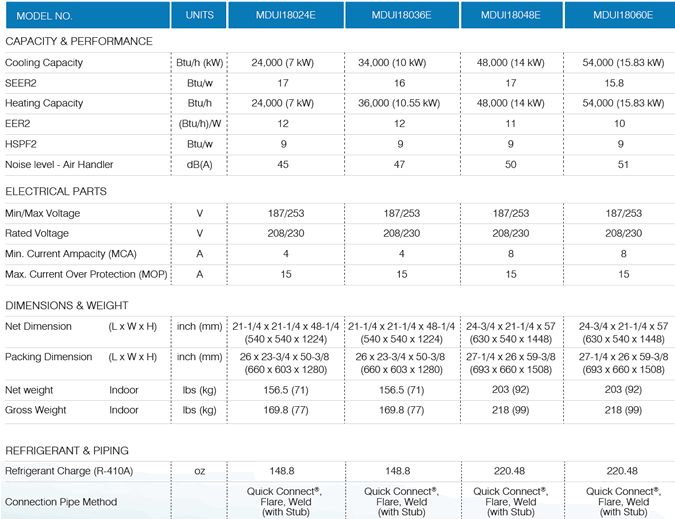

MrCool Universal Air Handler specifications

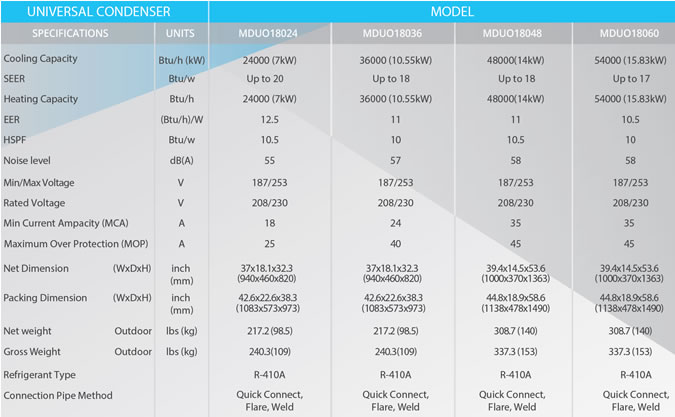

MrCool Universal Condenser specifications
