Goulds Laing Thermotech D5 Vario DC Bronze Circulation Pumps

D5 pumps can be used in a wide variety of DC applications where a highly efficient circulation pump is required. Typical applications include medical devices, electronics cooling, chillers, laser cooling, RV hot water systems, battery cooling, and fuel cells.  8-25 VDC range.

Speed control: Easily adjusts by turning a dial in the pump end. It can be adjusted to vary the hydraulic performance and/or the electrical power consumption.

Design: The single moving part in a spherical motor is a hemispherical rotor/impeller unit. The rotor/ impeller rides on an ultra-hard, wear-resistant ceramic ball. There are no conventional shaft bearings or seals, eliminating the possibility of bearing-play and a potential leak path.

model description usually ships price QTY

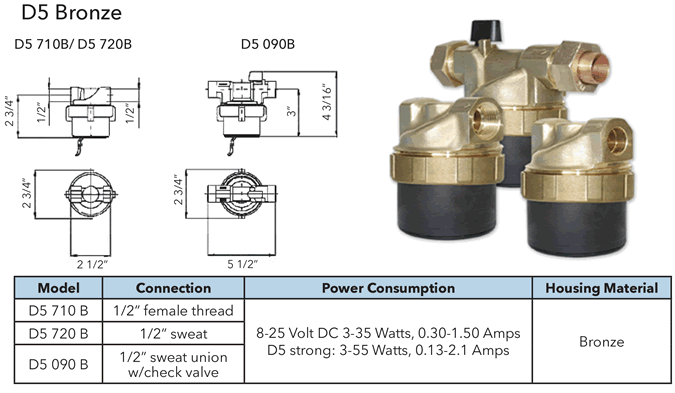

D5-38/710B Goulds Laing Thermotech Vario DC Bronze circulator pump. Part LMB15107976. 8-25 VDC. 1/2 inch FPT female pipe thread connection. 1 Day. In-stock $319.00
D5-38/720B Goulds Laing Thermotech Vario DC Bronze circulator pump. Part LMB15107975. 8-25 VDC. 1/2 inch sweat connection. 1 Day. In-stock $319.00
D5-38/090B Goulds Laing Thermotech Vario DC Bronze circulator pump. Part LMB15107977. 8-25 VDC. 1/2 inch union sweat connection. Built-in ball, union, bleeder and check valve. 1 Day. In-stock $389.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



laing D5 circulation DC pumps

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Is this pump rated for continuous duty, hot water (195f) and what pressure will it build? Thank you.
A:   Continuous duty is fine. Pressure depends on voltage and speed setting. See the D5 Vario Brass curves in the catalog: http://www.hvacquick.com/catalog_files/Laing_D5_Vario_Catalog.pdf

       Asked on 2017-01-03 by Bill
