Fantech ATMO Series Heat Recovery Fresh Air Appliance

Fantech ATMO Series Heat Recovery Fresh Air Appliance

ATMO Fresh Air Appliances continuously supplies fresh, filtered air while removing an equal amount of stale air. Controlled ventilation ensures home occupants receive the highest level of comfort. Up to 75% of the heat in the extract air is recovered by the heat exchanger and used to temper the fresh air coming from outside.

• Side port 6” duct connection
• Integrated air-balancing taps
• Multi-speed operation
• Automatic defrost
• External electrical box

ATMO 150H/200H are designed for high static pressure applications that demand high efficiency. Equipped with an automatic defrost mechanism that is activated when outdoor air temperature drops to 23F (-5C) or lower. During the defrost cycle, the supply air fan shuts down while the exhaust air fan switches into high speed to maximize the effectiveness.

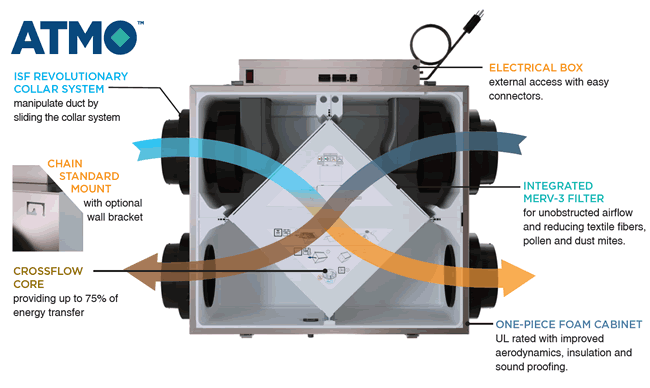

The appliances feature an efficient crossflow heat exchanger, standard MERV3 filters, a drain hose and hanging chain kit, easy connect ports, integrated air balancing taps and duct ports with plastic collar shrouds. Comes with a limited warranty (lifetime warranty on the exchanger, 7 years on motors and 5 years on parts).

model description usually ships price QTY
ATMO 150H Fantech HRV. 150 CFM @ 0.4 inches WG. Side port 6 inch duct connections. 3 speed. 1 Day. In-stock $789.00
ATMO 200H Fantech HRV. 191 CFM @ 0.4 inches WG. Side port 6 inch duct connections. 3 speed. 1 Day. In-stock $949.00
ECO-Touch IAQ Fantech Controller for HRV/ERVs with VOC sensor. Indoor humidity and temperature display. 20, 40, 60 minute override. Speed selection. Humidity control. 4 wire connection. Compatible with all Fantech Fresh Air Appliances equipped with a 5-pin connector on the control board and manufactured after January 2019 with the exception of SE704N, SH704 and VH704 models. 1 Day. In-stock $129.00
RTS-W Fantech pushbutton timer with wireless communication to ECO-Touch IAQ only. Wireless timer, 20/40/60 min w/battery. 50 ft max range. 1 Day. In-stock $39.50
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



Fantech ATMO heat recovery ventilator

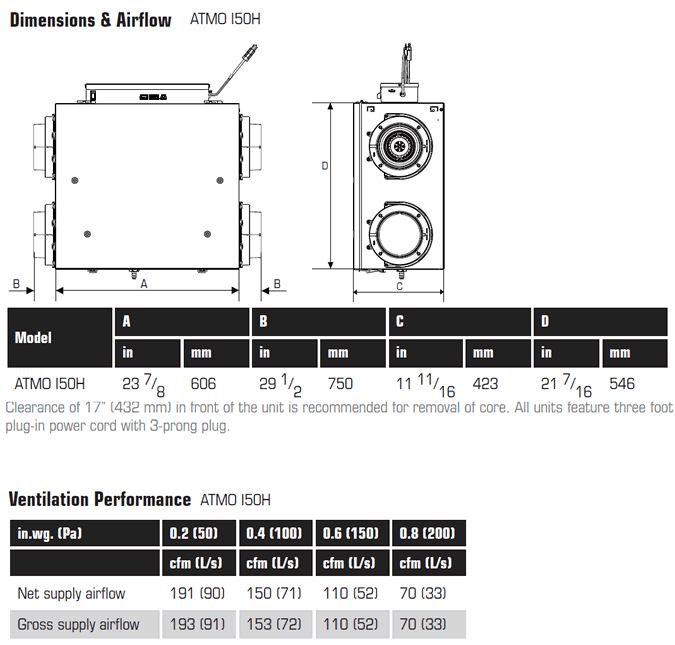

Fantech ATMO150H specifications

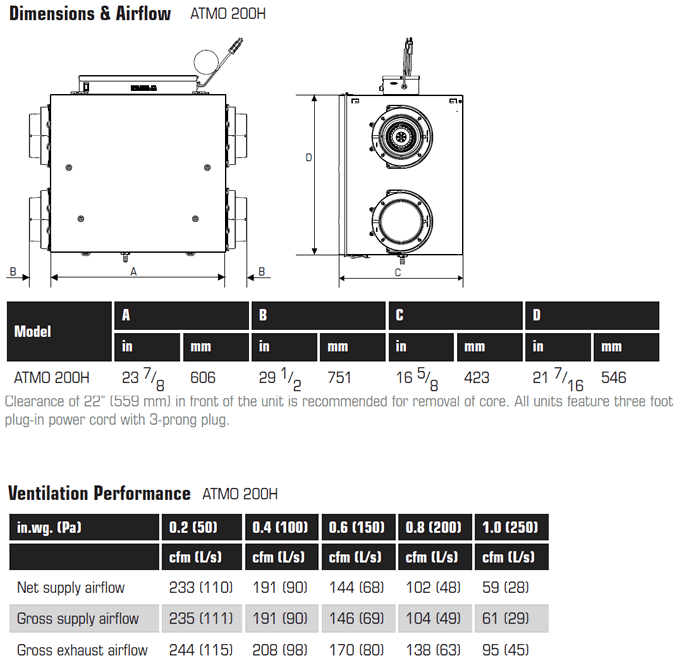

Fantech ATMO200H specifications



Stocked in both Oregon and New York state. See transit maps below.

Some products might ship from multiple warehouses.
