S&P TR Series Energy Recovery Ventilators for All Climates

S&P TR Series Energy Recovery Ventilators for All Climates

S&P’s TR series ERVs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. Unlike other ERVs on the market no mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.

  • MERV-8 filters
  • Less than 1-watt standby power consumption
  • Transformer/relay package allowing simple on/off control
  • Plastic double collars for 6" or 8" direct duct connection
  • Integral mounting flange and hanging bracket system
  • Fully insulated case
  • No condensate pan or drain required
  • HVI and cULus Listed
model description usually ships price QTY

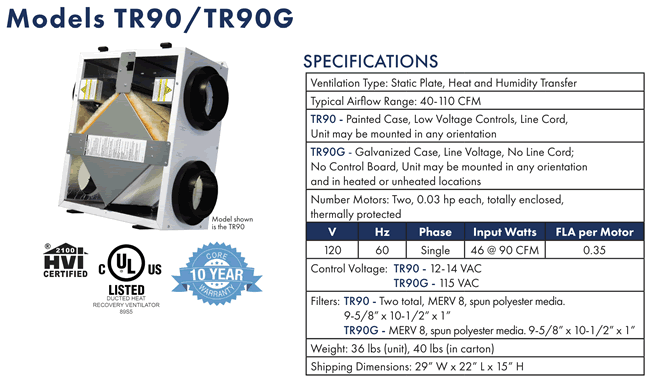

TR90 S&P Energy Recovery Ventilator - 40-110 cfm. 120 V, 60 Hz, Single Phase, 0.16 FLA. Low Voltage Controls. Line Cord. 1-2 Weeks $862.00
TR90G S&P Energy Recovery Ventilator - 40-110 cfm. 120 V, 60 Hz, Single Phase, 0.16 FLA. Line voltage. Unpainted case and no power cord. 1-2 Weeks $821.90

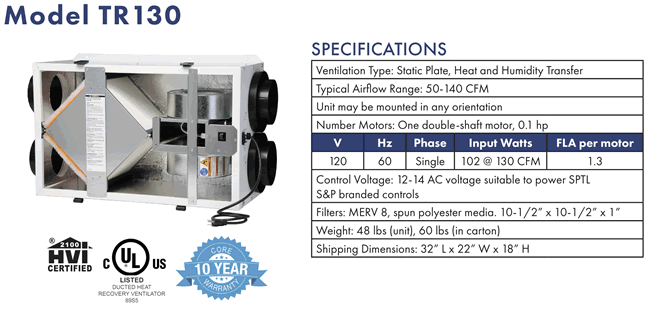

TR130 S&P Energy Recovery Ventilator - 50-140 cfm. 120 V, 60 Hz, Single Phase, 1.3 FLA. 1-2 Weeks $1008.50

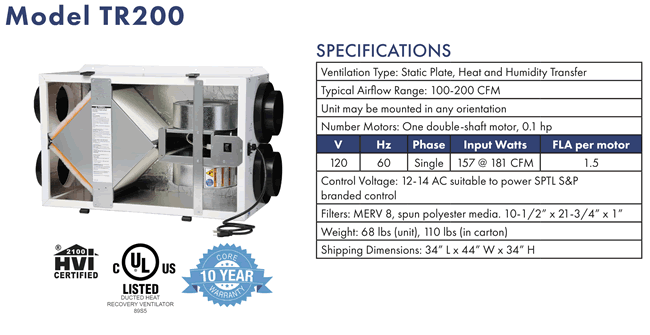

TR200 S&P Energy Recovery Ventilator - 100-200 cfm. 120 V, 60 Hz, Single Phase, 1.5 FLA. 1-2 Weeks $1303.60
SPTL S&P percentage timer controller for TR ERVs. Runs unit an adjustable amount of time each hour. Two wire, low voltage connection to TR. 1-2 Days $67.30
SPBL S&P push button point-of-use controller for TR ERVs. Push button control turns on unit from bathrooms or other intermittent exhaust locations. 20 minute run-time with each touch. Two wire, low voltage connection to SPTL. 1-2 Days $32.90
SFM S&P percentage timer control with furnace interlock. Wires to TR unit and either thermostat or furnace control to turn on furnace blower. Six wire, low voltage connection. Meets ASHRAE 62.2. 1-2 Days $85.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

soler palau TR90 erv

soler palau TR130 erv

soler palau TR200 erv

tr erv controls

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Does this come with any form of controls or just manual/timer options? I would like to keep my house slightly positive pressure compared to equal or negative pressure.
A:   Controls are optional. None included. You can balance the ERV to match your pressurization needs.

       Asked on 2022-04-11 by Thomas
#2 Q:   I have a ERV in my house and the blower motor is shot. I am thinking about replacing it with your TR130 unit. My unit is almost the same hookup as the 130 except I have a 5th duct connection that comes in on the top side on the same side as where the outside air duct is. the duct ties into the metal duct work as it returns to the unit on the bottom left side. Can I use your 130 unit and what would I do with that top extra duct?
A:   Some ERVs require a 5th duct for defrost purposes. The TR series does not. You can cap and not use the extra duct. Make sure the existing duct connections sizes match what the unit requires. Feel free to call us to discuss in more detail.

       Asked on 2021-08-27 by Larry
#3 Q:   What are the efficiencies of these units?
A:   They are listed in the Submittal Sheet for each unit. Look under the Links tab for all the submittal sheets.

       Asked on 2017-08-31 by Carl
