Setra CSS and CSC Current Switches

Setra CSS and CSC Current Switches

The CSC split core design is ideal for existing installations as it can easily be clamped onto existing power cable or wires. These units are offered with industry standard 135 Amp or 200 Ampt output and very low fixed or adjustable setpoints.

The CSS solid core current switch's convenient wide orifice allows easy pass through of the conductor, making it ideal for new installations. These units are solid state switches and have accurate very low fixed or user adjustable setpoints, and are ideal for direct drive units, small exhaust fans, and other fixed loads.

- Adjustable Switch Setpoints
- Switch LED Indication
- Relay LED Indication
- Over/Under Current Sensing
- Snap on Power Relay

model description usually ships price QTY

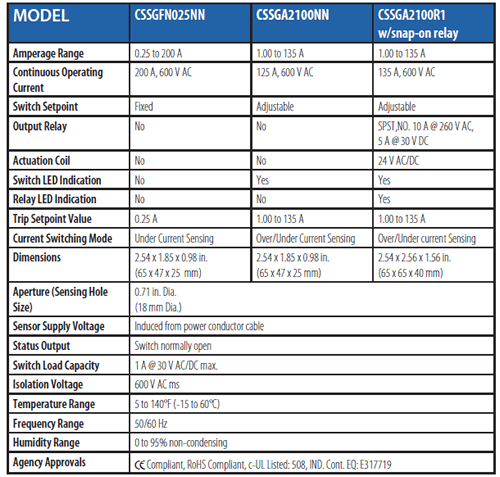

CSSGFN025NN Solid Core Current Switch - Fixed setpoint, no LED, 0.25 A setpoint. 2-3 Days $38.90
CSSGA2100NN Solid Core Current Switch - Adjustable setpoint, with LED, 1.00 A setpoint. 2-3 Days $54.30
CSSGA2100R1 Solid Core Current Switch - Adjustable setpoint, with LED, 1.00 A setpoint, with snap-on power relay. 2-3 Days $81.10

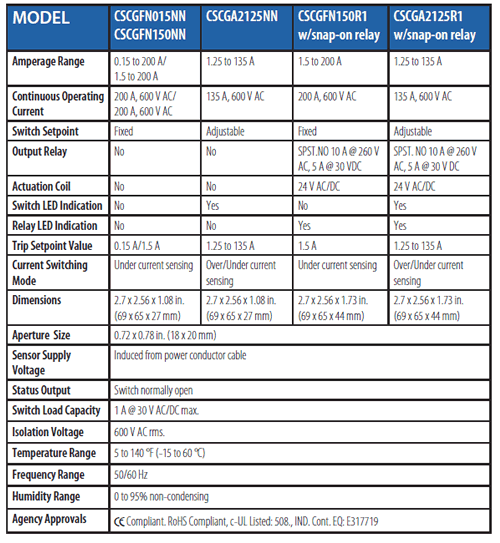

CSCGFN015NN Clamped / Split Core Current Switch- Fixed setpoint, no LED, 0.15 A setpoint. 2-3 Days $49.40
CSCGFN150NN Clamped / Split Core Current Switch - Fixed setpoint, no LED, 1.50 A setpoint. 2-3 Days $49.40
CSCGA2125NN Clamped / Split Core Current Switch- Adjustable setpoint, with LED, 1.25 A setpoint. 2-3 Days $67.30
CSCGFN150R1 Clamped / Split Core Current Switch- Fixed setpoint, no LED, 1.50 A setpoint, with snap-on power relay. 2-3 Days $85.90
CSCGA2125R1 Clamped / Split Core Current Switch - Adjustable setpoint, with LED, 1.25 A setpoint, with snap-on power relay. 2-3 Days $101.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



setra current sensors

setra current sensors and switches

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

Greystone Current Switches

AC current SWITCHES monitor line current for electrical loads such as pumps, conveyors, lighting, heaters or fans and close the output contacts when the trip point is exceeded.

Greystone Current Sensors

AC current SENSORS monitor line current for electrical loads and provide an output of 4-20 mA, 0-5 Vdc or 0-10 Vdc (model specific) to represent the load current.
