Neptronic TMA Wall Mount Controller for Make-Up Air

The TMA54-EXT1 thermostat is designed for controlling an electric heater in a make-up air unit. This unit features a fully configurable Proportional-Integral-Derivative (PID) and can connect up to 5 outputs at one time.

  • Configurable proportional-integral-derivative (PID)
  • 2 Analog cooling outputs (0-10Vdc)
  • 2 Analog heating outputs (0-10Vdc)
  • TPM output (time proportional output)
  • Selectable internal/external temperature sensor
  • Manual Night Set Back (NSB) input
  • NSB override
  • Configurable NSB cooling and heating setpoints
model description usually ships price QTY
TMA54-EXT1 Neptronic standalone wall mounted controller for controlling an electric heater in a make-up air unit. 2-3 Days $73.20
add to basket

real-time shipping quotes are available before checkout on your shopping cart page


NEP Make-up Air Controller overview

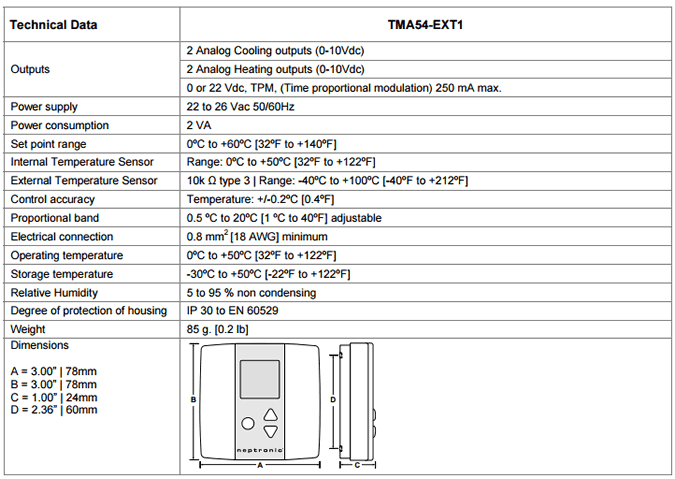

NEP Make-up Air Controller specifications
