Neptronic TRO 3X3 series 24 VAC wall thermostats and temperature controllers
NEP TR series 24 VAC wall thermostat with multiple cooling & heating ramps and with night setback. Typically used for control of electronic damper & valve actuators, duct heaters, VAVs and pulsed baseboards.

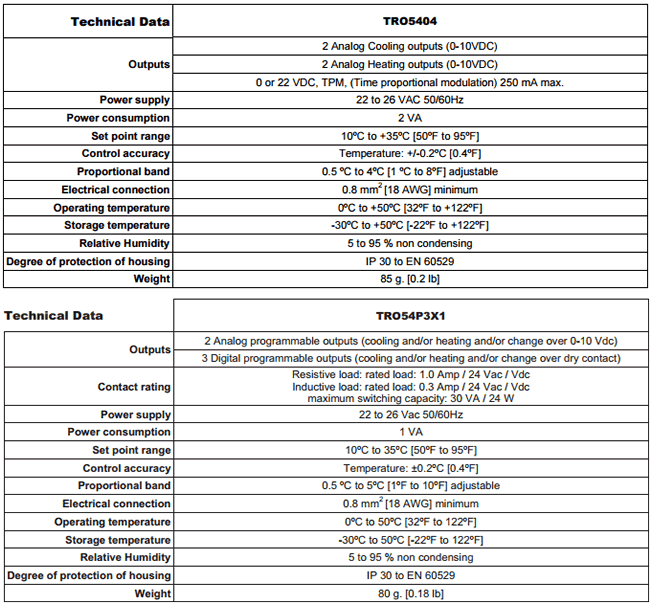

- TRO5404
- 4 analog outputs (2 heat / 2 cool)
- 1 TPM output (time proportional modulation)
- 2 sensor inputs
- Selectable internal or external temperature sensor
- Selectable proportional control band
- TRO54P3X1
- 2 analog outputs (1 heat / 1 cool)
- 3 digital outputs
- 2 sensor inputs
- Selectable internal or external temperature sensor
- Independent, configurable proportional control band and dead band per ramp
- Changeover by contact or external sensor
Related Products
Neptronic TRO 2X4 series 6 output temperature controllers
24 VAC wall thermostat / controller. This modern thermostat can connect up to 6 outputs at once. Available in stand-alone or with BACnet.
Neptronic EVC BACnet VAV Controllers
EVC BACnet/Modbus VAV controller packages. The controller mounts on the VAV box and is connected to the room thermostat (TRL series).
