Canarm Leader ALX-DD Downblast Direct Drive Spun Alum Exhausters

Canarm Leader ALX-DD Downblast Direct Drive Spun Alum Exhausters

ALX-DD and ALX-DD-EC: Ideal for exhausting air from factories, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.  FEATURING PERFECT SPEED EC MOTORS (not all models) - UP TO 82% EFFICIENCY.

• Spun aluminum housing will not rust, chip or peel
• Aluminum backward inclined wheel is non-overloading
• Available with PSC or EC Motors
• All motors are 1 Phase 120/240V operation and can be operated at 50 or 60 Hz
• All units can be wall mounted
• Quick release latches for easy motor access on ALX135 – ALX165

model description usually ships price QTY
ALX105-DD013V Canarm ALX 10.5 downblast direct drive fan. 1/8 Hp, 1 Phase, 120/240V Motor. Variable speed. 3-5 Days $438.20
ALX105-DD033EC Canarm ALX 10.5 downblast direct drive fan. 1/3 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $683.90
ALX120-DD033V Canarm ALX 12 downblast direct drive fan. 1/3 Hp, 1 Phase, 120/240V Motor. Variable speed. 3-5 Days $455.30
ALX120-DD033EC Canarm ALX 12 downblast direct drive fan. 1/3 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $696.90
ALX120-DD050EC Canarm ALX 12 downblast direct drive fan. 1/2 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $707.00
ALX135-DD050V Canarm ALX 13.5 downblast direct drive fan. 1/2 Hp, 1 Phase, 120/240V Motor. Variable speed. 3-5 Days $559.50
ALX135-DD033EC Canarm ALX 13.5 downblast direct drive fan. 1/3 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $802.90
ALX135-DD050EC Canarm ALX 13.5 downblast direct drive fan. 1/2 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $846.70
ALX135-DD075EC Canarm ALX 13.5 downblast direct drive fan. 3/4 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $868.60
ALX150-DD100S Canarm ALX 15 downblast direct drive fan. 1 Hp, 1 Phase, 120/240V Motor. Single speed. 3-5 Days $619.90
ALX150-DD033EC Canarm ALX 15 downblast direct drive fan. 1/3 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $805.90
ALX150-DD050EC Canarm ALX 15 downblast direct drive fan. 1/2 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $852.60
ALX150-DD075EC Canarm ALX 15 downblast direct drive fan. 3/4 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $860.90
ALX150-DD100EC Canarm ALX 15 downblast direct drive fan. 1 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $907.10
ALX165-DD150S Canarm ALX 16.5 downblast direct drive fan. 1-1/2 Hp, 1 Phase, 120/240V Motor. Single speed. 3-5 Days $868.60
ALX165-DD033EC Canarm ALX 16.5 downblast direct drive fan. 1/3 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $1006.60
ALX165-DD050EC Canarm ALX 16.5 downblast direct drive fan. 1/2 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $939.10
ALX165-DD075EC Canarm ALX 16.5 downblast direct drive fan. 3/4 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $1056.90
ALX165-DD100EC Canarm ALX 16.5 downblast direct drive fan. 1 Hp, 1 Phase, 120/240V EC MOTOR. 3-5 Days $982.30
RCG17.5 Canarm non-vented curb for ALX105, ALX120, SD-SDUB-10, SD-SDUB-12 fans. 18 inch high. 17.5 inch OD square. 3-5 Days $98.30
RCGI17.5 Canarm non-vented curb for ALX105, ALX120, SD-SDUB-10, SD-SDUB-12 fans. 18 inch high. 17.5 inch OD square. INSULATED. 3-5 Days $137.40
RCG19.5 Canarm non-vented curb for ALX135, ALX150, SD-SDUB-30, SD-SDUB-33, SD-SDUB-50 fans. 18 inch high. 19.5 inch OD square. 3-5 Days $100.70
RCGI19.5 Canarm non-vented curb for ALX135, ALX150, SD-SDUB-30, SD-SDUB-33, SD-SDUB-50 fans. 18 inch high. 19.5 inch OD square. INSULATED. 3-5 Days $152.80
RCG23.25 Canarm non-vented curb for ALX165, ALX180, SD-SDUB-85 fans. 18 inch high. 23.25 inch OD square. 3-5 Days $118.40
RCGI23.25 Canarm non-vented curb for ALX165, ALX180, SD-SDUB-85 fans. 18 inch high. 23.25 inch OD square. INSULATED. 3-5 Days $180.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

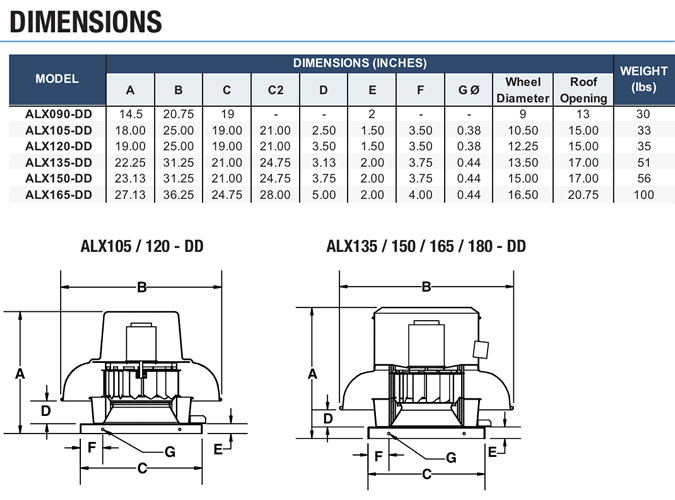

canarm leader ALX-DD series dimensions

canarm leader ALX-DD series specs
