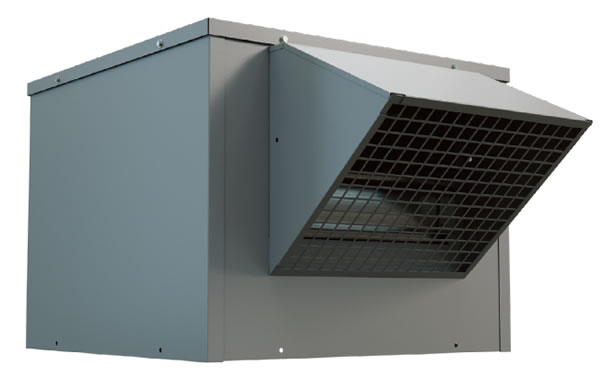

Canarm Leader 300DD Series Direct Drive FC Roof Exhauster With ECM

300 Series Forward Curved Roof Exhauster.  Direct drive with ECM motor.

FEATURES:

• High efficiency direct drive motor for energy efficient low maintenance applications
• Square base allows discharge to be oriented in any of 4 directions.
• Back draft damper and bird screen included.
• Cabinet insulated with 1/2” fiberglass insulation.
• EC Motor offers true variable speed operation and up to 70% energy savings over PSC motors.
• EC motors can be controlled using the built in potentiometer on motor or by using a 0 to 10 V controller, or by a remote potentiometer.

model description usually ships price QTY
309DD050EC Canarm/Leader 300 Series direct driver roof exhauster. 309DD, EC MOTOR 1/2HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $742.20
309DD100EC Canarm/Leader 300 Series direct driver roof exhauster. 309DD, EC MOTOR 1HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $835.80
310DD050EC Canarm/Leader 300 Series direct driver roof exhauster. 310DD, EC MOTOR 1/2HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $973.20
310DD100EC Canarm/Leader 300 Series direct driver roof exhauster. 310DD, EC MOTOR 1HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $944.40
312DD050EC Canarm/Leader 300 Series direct driver roof exhauster. 312DD, EC MOTOR 1/2HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $931.20
312DD100EC Canarm/Leader 300 Series direct driver roof exhauster. 312DD, EC MOTOR 1HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $984.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



canarm leader 300dd roof exhauster

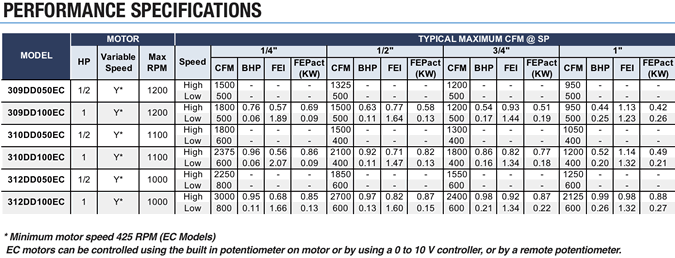

canarm leader 300dd roof exhauster specs
