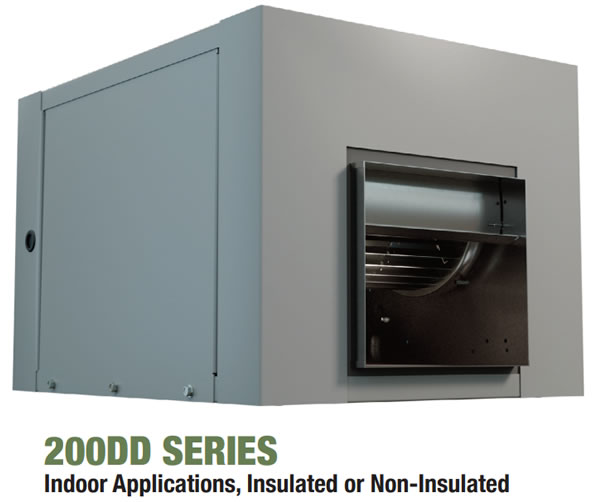

Canarm Leader 200DD Series Direct Drive FC Inline Duct Blowers with ECM

200 Series forward curved inline duct blowers.  Direct drive with ECM motor.  Indoor applications only.

Features:

• High efficiency direct drive motor for energy efficient, low maintenance applications.
• Forward curved blowers operate at low RPM for low noise levels.
• Attractive green baked on powder coat finish.
• EC Motor offers true variable speed operation and up to 70% energy savings over PSC motors.
• EC motors can be controlled using the built in potentiometer on motor or by using a 0 to 10 V controller, or by a remote potentiometer.

model description usually ships price QTY
209DD050EC Canarm/Leader 200 Series direct driver duct blower. 209DD, EC MOTOR, 1/2HP,1200RPM,1 phase, 60 Hz, 115/208-230V. 4-5 Days $706.20
209DD100EC Canarm/Leader 200 Series direct driver duct blower. 209DD, EC MOTOR, 1 HP,1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $829.20
209DD050EC-INS Canarm/Leader 200 Series direct driver duct blower. 209DD, EC MOTOR, 1/2HP,1200RPM. 1 phase, 60 Hz, 115/208-230V. INSULATED CASE. 4-5 Days $488.40
209DD100EC-INS Canarm/Leader 200 Series direct driver duct blower. 209DD, EC MOTOR, 1 HP,1200RPM. 1 phase, 60 Hz, 115/208-230V. INSULATED CASE. 4-5 Days $871.80
210DD050EC Canarm/Leader 200 Series direct driver duct blower. 210DD, EC MOTOR 1/2HP,1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $699.60
210DD100EC Canarm/Leader 200 Series direct driver duct blower. 210DD, EC MOTOR 1HP,1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $536.40
210DD050EC-INS Canarm/Leader 200 Series direct driver duct blower. 210DD, EC MOTOR 1/2HP,1200RPM. 1 phase, 60 Hz, 115/208-230V. INSULATED CASE. 4-5 Days $633.00
210DD100EC-INS Canarm/Leader 200 Series direct driver duct blower. 210DD, EC MOTOR 1HP,1200RPM. 1 phase, 60 Hz, 115/208-230V. INSULATED CASE. 4-5 Days $685.20
212DD050EC Canarm/Leader 200 Series direct driver duct blower. 212DD, EC MOTOR 1/2HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $633.00
212DD100EC Canarm/Leader 200 Series direct driver duct blower. 212DD, EC MOTOR 1HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. 4-5 Days $685.20
212DD050EC-INS Canarm/Leader 200 Series direct driver duct blower. 212DD, EC MOTOR 1/2HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V. INSULATED CASE. 4-5 Days $678.00
212DD100EC-INS Canarm/Leader 200 Series direct driver duct blower. 212DD, EC MOTOR 1HP, 1200RPM. 1 phase, 60 Hz, 115/208-230V INS. DUCT BLOWER 4-5 Days $732.00
F209A**9020002 Canarm/Leader insulated painted FILTER SECTION. For 209, 9209, 9209-VIB blowers. 1-2 Weeks $93.00
F210A**9020003 Canarm/Leader insulated painted FILTER SECTION. For 210, 9210, 9210-VIB blowers. 1-2 Weeks $93.00
F212A**9020004 Canarm/Leader insulated painted FILTER SECTION. For 212, 9212, 9212-VIB blowers. 1-2 Weeks $108.00
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



canarm leader 200dd blowers

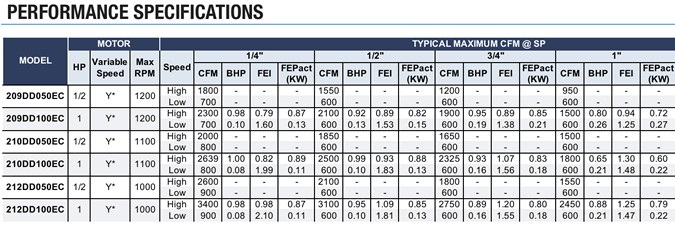

canarm leader 200dd blower specs

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!
