S&P ARS Direct Drive Rooftop Supply Fan

The ARS series offers powerful axial supply performance in a roof mount design that is compact, lightweight and easy to install. The ARS series is an excellent choice for factories, shops, restaurants, bathrooms, offices, schools and other similar applications where light to moderate static pressures are present. The low contour designs and all aluminum housing provides a modern, clean appearance in addition to excellent performance and durability. The direct drive design has no belts or fan bearings to maintain or adjust and consequently requires very little maintenance.

Pricing includes assembled fan, motor prewired, UL-705 listing label, disconnect switch (not mounted or wired). Standard motors are open drip-proof either 115/1/60 or 230/1/60.

Accessories are listed below the fans at the bottom of the page.

model description usually ships price QTY
ARS10IH1AS S&P ARS10 dome propeller supply roof fan. 1/15 Hp, 115/1/60 motor. 1550 RPM. 5-6 Weeks $814.30
ARS12MH1AS S&P ARS12 dome propeller supply roof fan. 1/4 Hp, 115/1/60 motor. 1725 RPM. 5-6 Weeks $997.40
ARS12MH1CS S&P ARS12 dome propeller supply roof fan. 1/4 Hp, 230/1/60 motor. 1725 RPM. 5-6 Weeks $997.40
ARS12MM1AS S&P ARS12 dome propeller supply roof fan. 1/4 Hp, 115/1/60 motor. 1140 RPM. 5-6 Weeks $977.90
ARS12MM1CS S&P ARS12 dome propeller supply roof fan. 1/4 Hp, 230/1/60 motor. 1140 RPM. 5-6 Weeks $977.90
ARS16MM1AS S&P ARS16 dome propeller supply roof fan. 1/4 Hp, 115/1/60 motor. 1140 RPM. 5-6 Weeks $1137.70
ARS16MM1CS S&P ARS16 dome propeller supply roof fan. 1/4 Hp, 230/1/60 motor. 1140 RPM. 5-6 Weeks $1137.70
ARS16PH1AS S&P ARS16 dome propeller supply roof fan. 1/3 Hp, 115/1/60 motor. 1725 RPM. 5-6 Weeks $1178.20
ARS16PH1CS S&P ARS16 dome propeller supply roof fan. 1/3 Hp, 230/1/60 motor. 1725 RPM. 5-6 Weeks $1178.20
ARS20MM1AS S&P ARS20 dome propeller supply roof fan. 1/4 Hp, 115/1/60 motor. 1140 RPM. 5-6 Weeks $1489.10
ARS20MM1CS S&P ARS20 dome propeller supply roof fan. 1/4 Hp, 230/1/60 motor. 1140 RPM. 5-6 Weeks $1489.10
711218 S&P 12 inch high roof mounting curb. 18-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $297.70
711222 S&P 12 inch high roof mounting curb. 22-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $315.60
92612221 S&P 12 inch high roof mounting curb. 26-1/2 inch sq. Galvanized with wood nailer. 2-3 Days $313.20
S3GA12CB S&P gravity supply air damper. Counterbalanced. 2-3 Days $120.00
S3GA16CB S&P gravity supply air damper. Counterbalanced. 2-3 Days $141.80
S3GA20CB S&P gravity supply air damper. Counterbalanced. 2-3 Days $212.70
S3GA24CB S&P gravity supply air damper. Counterbalanced. 2-3 Days $340.50
MP2781 S&P shutter damper motor. Ships loose. 2-3 Days $221.30
2727.1 S&P speed controller. 5 Amp, up to 1/3 hp, 120V. 2-3 Days $63.90
3232.1 S&P speed controller. 6 Amp, up to 1/3 HP, 230V. 2-3 Days $128.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

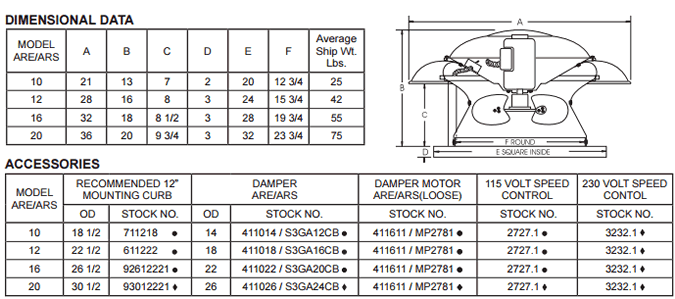

S&P ARS Dimensions

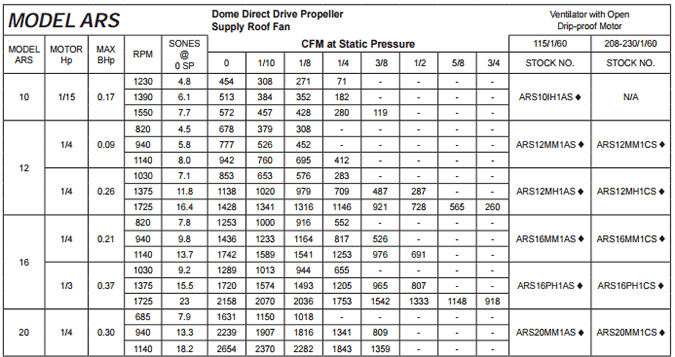

S&P ARS Specifications
