Sauermann DBM 620 Balometer Airflow Meters

Sauermann DBM 620 Balometer Airflow Meters

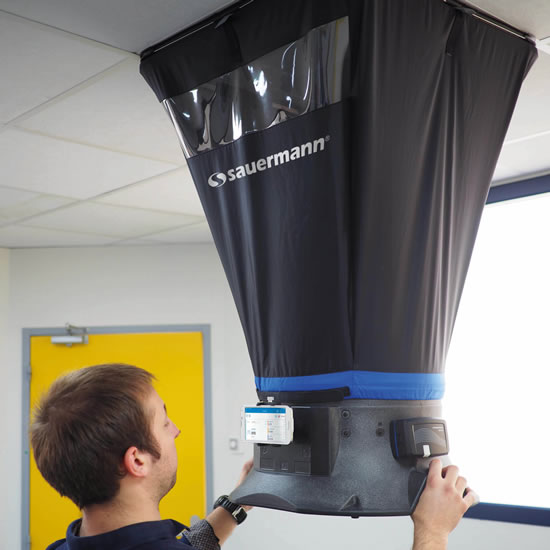

The newly redesigned Sauermann DBM 620 Air Flow Meter is a multipurpose electronic air balancing instrument primarily used for efficiently taking direct air volume readings from air vents.

Features:

  • Air Changes per Hour (ACPH) metric is the first of its kind to be included in a Balometer

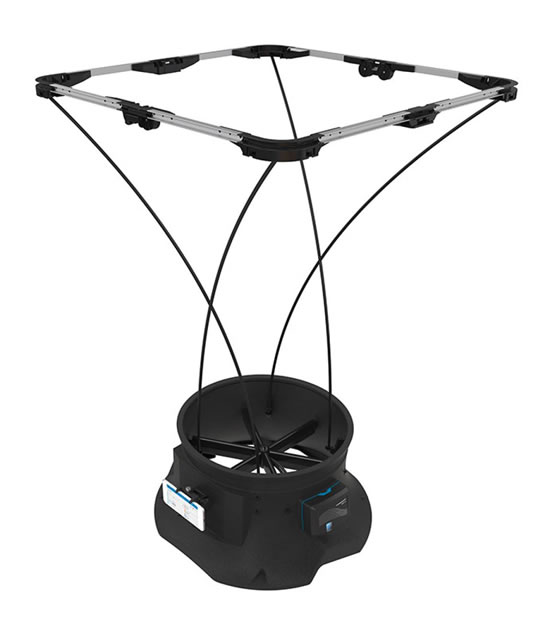

  • Easily swap between 5 different hood configurations
  • SmartKap App allows for easy reading and export of data
  • Also functions as autonomous micromanometer with Pitot tube attachment
  • Lighter and smaller than previous models
  • Extendable tripod eliminates the need for ladders in most environments
model description usually ships price QTY
DBM 620 Sauermann electronic airflow meter. 2x2 foot hood, flow straightener, frame, transport case and calibration certificate included. Part 26446. 2-3 Days $2400.90
DBM 620C Sauermann electronic airflow meter. 2x2, 2.4x2.4, 2.4x4.3, 1.4x5.0, 3.4x3.4 foot hoods, flow straightener, frame, transport case and calibration certificate included. Part 26446. 2-3 Days $4335.20
26450 Sauermann measuring hood for DBM620 type HO-621. Size 2x2 foot. Supplied with foldable frame and sheath. 2-3 Days $433.50
26451 Sauermann measuring hood for DBM620 type HO-622. Size 2.4x2.4 foot. Supplied with foldable frame and sheath. 2-3 Days $433.50
26452 Sauermann measuring hood for DBM620 type HO-623. Size 2.4x4.3 foot. Supplied with foldable frame and sheath. 2-3 Days $456.40
26453 Sauermann measuring hood for DBM620 type HO-624. Size 1.4x5.0 foot. Supplied with foldable frame and sheath. 2-3 Days $433.50
26454 Sauermann measuring hood for DBM620 type HO-625. Size 3.4x3.4 foot. Supplied with foldable frame and sheath. 2-3 Days $456.40
26455 Sauermann velocity measuring grid kit for DBM620 type DBM-VMG. 2-3 Days $490.70
26456 Sauermann telescopic tripod with casters for DBM620. Type DBM T-4. Height from 4 to 13 feet. Supplied with soft transport case. 2-3 Days $410.60
26465 Sauermann replacement transport case for DBM 620 with casters and handle type DBM Trolley. 2-3 Days $307.70
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

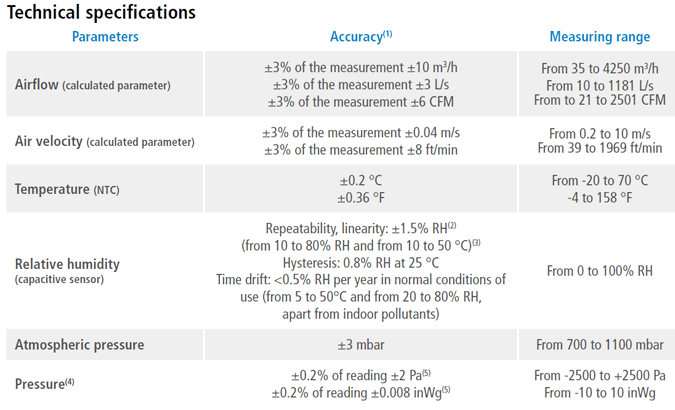

Sauermann DBM 620 specs

Sauermann DBM 620

Sauermann DBM 620
