Neptronic TRT Wall Mounted Rooftop Controller

The TRT2422 is a combination controller and thermostat with a built-in scheduler, which is designed for simple and accurate control of single or dual stage heating/cooling equipment, such as rooftop and self-contained units. Its field configurable algorithms enable versatile implementation of required control sequences.

Features:

  • Precise temperature control with programmable PI
  • Configurable scheduler (7 days, 2/4 events)
  • 24-hour backup battery for RTC
  • 2 external temperature sensor inputs
  • 1 digital input
  • 2 heat, 2 cool and 1 fan output
  • Automatic freeze protection
  • Anti-cycling protection
  • 24Vac operation
  • Multi level lockable access menu and setpoint
  • Selectable Fahrenheit or Celsius scale
model description usually ships price QTY
TRT2422 Neptronic wall mounted rooftop controller. Stages 2 heat / 2 cool. 2-3 Days $131.40
add to basket

real-time shipping quotes are available before checkout on your shopping cart page


NEP Rooftop Controller overview

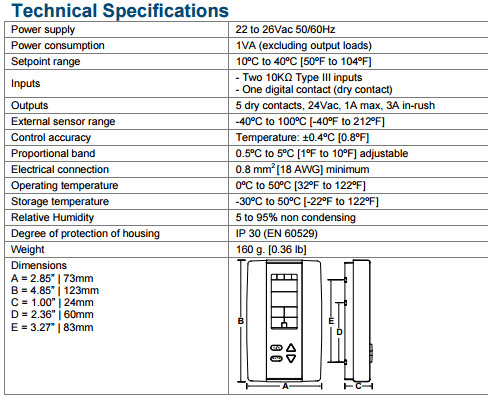

NEP Rooftop Controller specifications

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

Neptronic TRO 2X4 series 6 output temperature controllers

24 VAC wall thermostat / controller. This modern thermostat can connect up to 6 outputs at once. Available in stand-alone or with BACnet.

Neptronic TRO 3X3 series 24 VAC wall thermostats and temperature controllers

24 VAC wall thermostats with multiple cooling & heating ramps and with night setback.
