Neptronic TFC Wall Mounted Fan Coil Controllers

The TFC Series fan coil room controllers are designed for general HVAC applications, but more specifically for fan coil control. These controllers can connect to:

- One, two or three fan speeds
- Damper actuator or actuated valve (modulating or on/off and pulse)
- Electric duct heater or baseboard (modulating or on/off and pulse)

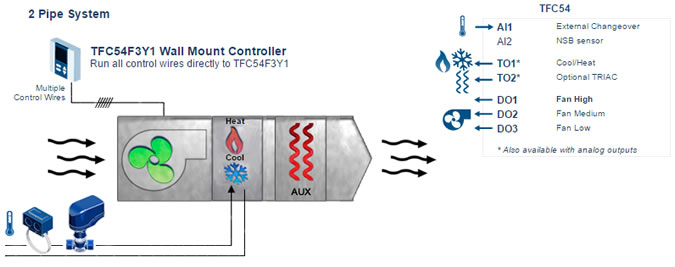

• TFC54F3X1: 2 Analog heat/cool outputs (0-10 Vdc)
• TFC54F3Y1: 2 TRIAC heat/cool outputs (On/Off, or Pulse)

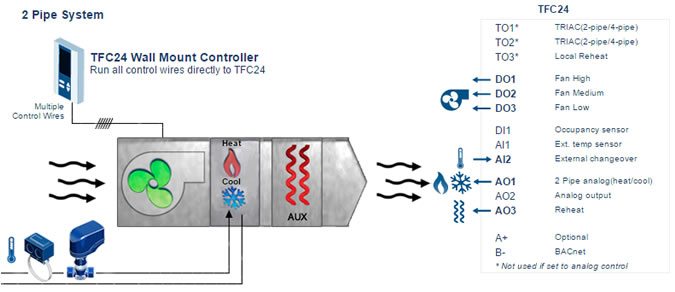

• TFC24F3XYZ1: Fan Coil Controller
• TFC24F3XYZ3: Fan Coil Controller with Scheduler
• TFCB24F3XYZ1: Fan Coil Controller with BACnet
• TFH24F3XYZ1: Fan Coil Controller with Humidity
• TFHB24F3XYZ1: Fan Coil Controller with BACnet and Humidity

model description usually ships price QTY
TFC54F3Y1 Neptronic fan coil wall mounted controller. 3 fan speed digital outputs. 2 triac outputs. 2-3 Days $89.60
TFC54F3X1 Neptronic fan coil wall mounted controller. 3 fan speed digital outputs. 2 analog outputs. 2-3 Days $89.60
TFCB24F3XYZ1 Neptronic BACnet fan coil wall mounted controller. 3 analog and digial outputs. 2-3 Days $228.90
TFHB24F3XYZ1 Neptronic BACnet fan coil wall mounted controller. 3 analog and digial outputs. With external humidity sensor. 2-3 Days $383.80
TFHB24F3XYZ2 Neptronic BACnet fan coil wall mounted controller. 3 analog and digial outputs. With internal humidity sensor. 2-3 Days $373.70
TFC24F3XYZ1 Neptronic stand-alone fan coil wall mounted controller. 3 analog and digial outputs. 2-3 Days $125.40
TFC24F3XYZ3 Neptronic stand-alone fan coil wall mounted controller. 3 analog and digial outputs. With scheduler. 2-3 Days $131.40
TFH24F3XYZ1 Neptronic stand-alone fan coil wall mounted controller. 3 analog and digial outputs. With external humidity sensor. 2-3 Days $279.30
TFH24F3XYZ2 Neptronic stand-alone fan coil wall mounted controller. 3 analog and digial outputs. With internal humidity sensor. 2-3 Days $271.40
add to basket

real-time shipping quotes are available before checkout on your shopping cart page


NEP TFC Fan Coil Controller


NEP TFC Fan Coil Controller Specifications

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!


No questions yet. Be the first and send us your question!

Related Products

Neptronic EFC Fan Coil Controllers

Fully configurable fan coil controllers with native BACnet MS/TP or Modbus. 24, 120 or 240Vac operation. Up to 10 inputs and 15 outputs.

Neptronic EVC BACnet VAV Controllers

EVC BACnet/Modbus VAV controller packages. The controller mounts on the VAV box and is connected to the room thermostat (TRL series).
