Neptronic EFC Fan Coil Controllers

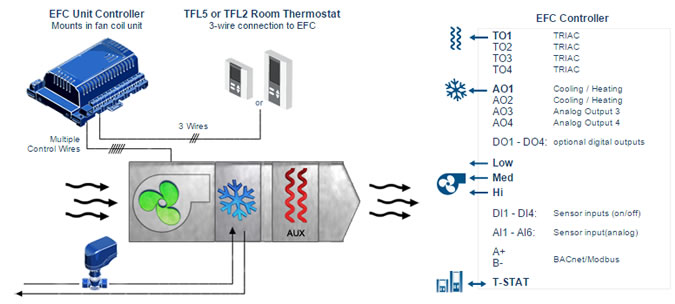

The fan coil package consists of 2 parts, the TFL thermostat and the EFC controller module. The controller incorporates a configurable fan coil algorithm, variable three speed fan control and either modulating or digital heating and cooling outputs.
• Connects to room thermostat via 3 wires
• Native BACnet MS/TP or Modbus communication (selectable)
• 24, 120 or 240Vac
• Inputs:
- 4 analog inputs (0-10Vdc or 10K Ohms)
- 3 dedicated analog sensor inputs
- 4 dedicated digital sensor inputs
• Outputs:
- 4 analog outputs (configurable)
- 4 TRIAC outputs (configurable)
- 3 fan outputs
- Up to 4 digital outputs (configurable)
• Selectable proportional control band and dead band
• 3-speed or ECM (analog) fan control
