Canarm Leader ADD Series Direct Drive Wall Exhaust Fans 3 Phase

Canarm Leader ADD Series Direct Drive Wall Exhaust Fans 3 Phase

These exhaust fans are typically used for high volume, high static pressure applications.  The series ADD is designed and constructed for efficient & economical operations and is direct drive, therefore  requiring little or no maintenance.  Heavy duty airfoil cast aluminum blades are standard to ADD series fans providing maximum performance at low sound levels. 3 PHASE MOTOR MODELS.

  • Heavy gauge steel fan panel with deep spun and flared venturi for maximum efficiency.
  • Heavy gauge welded steel motor supports.
  • Cast aluminum airfoil blades.
  • TEFC motors are standard.
  • Note: These fans can be combined with Explosion Proof Motors for use in hazardous locations.
model description usually ships price QTY
ADD12T30033BM Canarm 12" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $738.40
ADD12T30033CM Canarm 12" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $971.60
ADD12CBS30033BM Canarm 12" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $1036.80
ADD14T30033BM Canarm 14" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $752.00
ADD14T30033CM Canarm 14" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $984.70
ADD14CBS30033BM Canarm 14" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $1071.10
ADD16T30033CM Canarm 16" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $1065.20
ADD16T30050BM Canarm 16" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/2HP, 208-230/460V motor. 2-3 Weeks $853.80
ADD16CBS30050BM Canarm 16" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 1/2HP, 208-230/460V motor. 2-3 Weeks $1181.80
ADD18T30033CM Canarm 18" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $1087.10
ADD18T30075BM Canarm 18" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 3/4HP, 208-230/460V motor. 2-3 Weeks $901.20
ADD18CBS30075BM Canarm 18" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 3/4HP, 208-230/460V motor. 2-3 Weeks $1258.80
ADD20T30033CM Canarm 20" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1/3HP, 208-230/460V motor. 2-3 Weeks $1257.00
ADD20T30100BM Canarm 20" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1HP, 208-230/460V motor. 2-3 Weeks $1158.20
ADD20CBS30100BM Canarm 20" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 1HP, 208-230/460V motor. 2-3 Weeks $1543.60
ADD24T30050CM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 0.5HP, 208-230/460V motor. 2-3 Weeks $1377.20
ADD24T30100CM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1HP, 208-230/460V motor. 2-3 Weeks $1443.00
ADD24T30150BM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1.5HP, 208-230/460V motor. 2-3 Weeks $1307.40
ADD24T30150CM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1.5HP, 208-230/460V motor. 2-3 Weeks $1676.30
ADD24T30200BM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 2HP, 208-230/460V motor. 2-3 Weeks $1454.80
ADD24T30300BM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 3HP, 208-230/460V motor. 2-3 Weeks $1547.80
ADD24CBS30150BM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 1.5HP, 208-230/460V motor. 2-3 Weeks $1820.70
ADD24CBS30300BM Canarm 24" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 2HP, 208-230/460V motor. 2-3 Weeks $2036.30
ADD30T30100CM Canarm 30" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1HP, 208-230/460V motor. 2-3 Weeks $1623.00
ADD30T30150CM Canarm 30" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 1.5HP, 208-230/460V motor. 2-3 Weeks $1766.80
ADD30T30200CM Canarm 30" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 2HP, 208-230/460V motor. 2-3 Weeks $1769.20
ADD30T30300BM Canarm 30" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 3HP, 208-230/460V motor. 2-3 Weeks $1714.70
ADD30T30500BM Canarm 30" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 5HP, 208-230/460V motor. 2-3 Weeks $1852.70
ADD30CBS30300BM Canarm 30" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 3HP, 208-230/460V motor. 2-3 Weeks $2388.00
ADD30CBS30500BM Canarm 30" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 5HP, 208-230/460V motor. 2-3 Weeks $2525.90
ADD36T30200CM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 2HP, 208-230/460V motor. 2-3 Weeks $2217.40
ADD36T30300CM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 3HP, 208-230/460V motor. 2-3 Weeks $2279.00
ADD36T30500BM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 5HP, 208-230/460V motor. 2-3 Weeks $2226.30
ADD36T30500CM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 5HP, 208-230/460V motor. 2-3 Weeks $2698.80
ADD36T30750BM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 7.5HP, 208-230/460V motor. 2-3 Weeks $2504.00
ADD36T31000BM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 10HP, 208-230/460V motor. 2-3 Weeks $2570.90
ADD36CBS30500BM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 5HP, 208-230/460V motor. 2-3 Weeks $3092.60
ADD36CBS31000BM Canarm 36" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 10HP, 208-230/460V motor. 2-3 Weeks $3439.50
ADD42T30200DM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 2Hp, 208-230/460V motor. 2-3 Weeks $4310.50
ADD42T30300DM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 3Hp, 208-230/460V motor. 2-3 Weeks $4303.40
ADD42T30500CM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 5Hp, 208-230/460V motor. 2-3 Weeks $2603.50
ADD42T30500DM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 5Hp, 208-230/460V motor. 2-3 Weeks $5288.70
ADD42T30750CM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 7.5Hp, 208-230/460V motor. 2-3 Weeks $3215.70
ADD42T31000BM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 10Hp, 208-230/460V motor. 2-3 Weeks $2561.40
ADD42T31500BM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade. 3 phase, 15HP, 208-230/460V motor. 2-3 Weeks $3271.40
ADD42CBS31000BM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 10Hp, 208-230/460V motor. 2-3 Weeks $3605.30
ADD42CBS31500BM Canarm 42" ADD direct drive wall fan. HD airfoil cast aluminum blade, cabinet, backguard and shutter. 3 phase, 15HP, 208-230/460V motor. 2-3 Weeks $4308.80
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

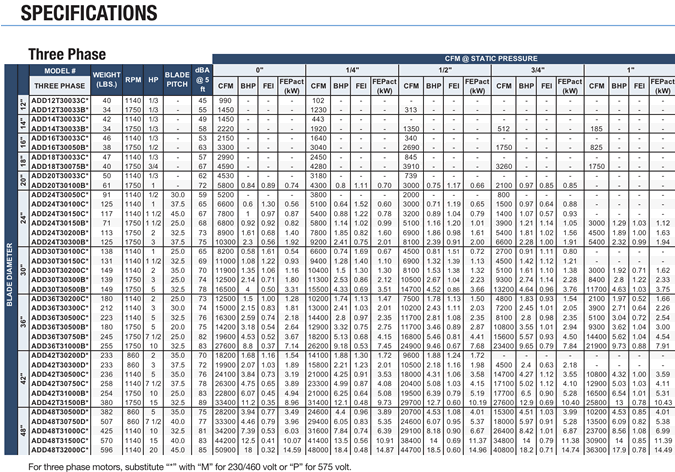

canarm leader ADD wall exhauster series performance

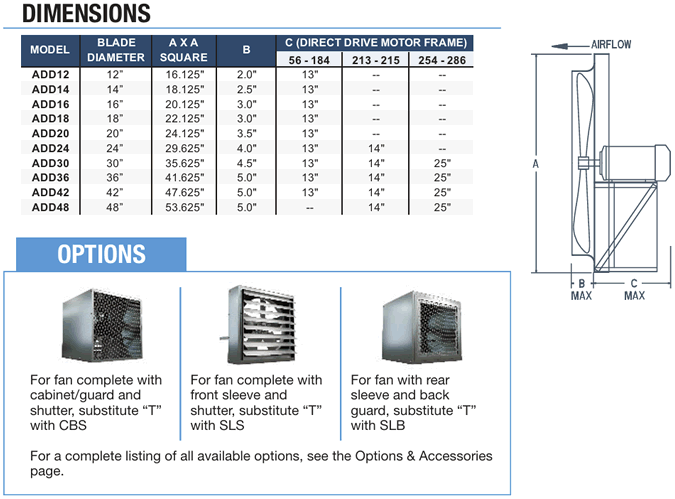

canarm leader ADD wall exhauster series
