AirScape AH-4 MERV-13 Filtration Air Scrubber

AirScape AH-4 MERV-13 Filtration Air Scrubber

The AirScape AH-4 MERV-13 is a portable air scrubber for sub-HEPA level air filtration. It's modular design allows it to be used with multiple filter and module options. The W configuration MERV-13 filters provide a large filter surface area to limit pressure losses and extend the service life of the filters.

Features:

  • Included modules: Fan module (AH4-CF) and MERV-13 filter module (AH4-IWFB)
  • 1 HP, 115/230 VAC, EC motor (factory wired for 115V, field changeable to 230V)
  • 0-10 VDC external speed controllable (controller not included)
  • 3000 CFM (nominal)
  • MERV-13 filters included
  • Aluminum double wall insulated construction
  • 10 ft. power cord

The AH-4's ECM motor provides outstanding airflow as well as efficiency. The standard configuration is 2 modules:  fan module (AH4-CF) and MERV-13 filter module (AH4-IWFB).

Special order options: galvanized steel construction, powder coating, 10 speed controller and remote controls.  Please contact us for quantity pricing and availability.

model description usually ships price QTY
AH-4 MERV13 AirScape AH-4 MERV-13 filtration unit. 115 VAC ECM motor, controllable through an external 0-10 VDC signal/controller (not included). 3000 CFM. Insulated fan module (AH4-CF) with power cord and MERV-13 filter module (AH4-IWFB). First set of filters included. Ships freight. 2-3 Weeks $1589.00
PF13-24X24X2 Premium replacement filter for IFWB units. 24x24x2 (23.5 x 23.5 x 1.75) 2-Inch MERV 13 filter. 1 filter. 1 Day. In-stock $22.20
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

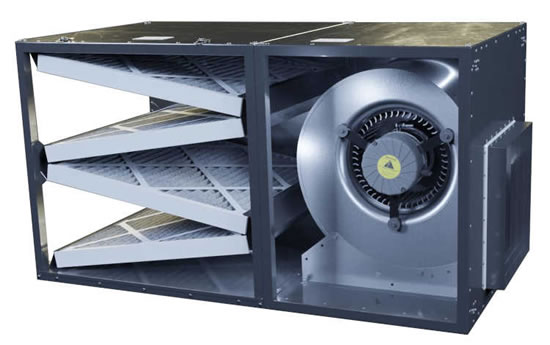

AH-4 MERV-13 Side View With Both Access Panels Removed:

airscape ah-4 side view with discharge

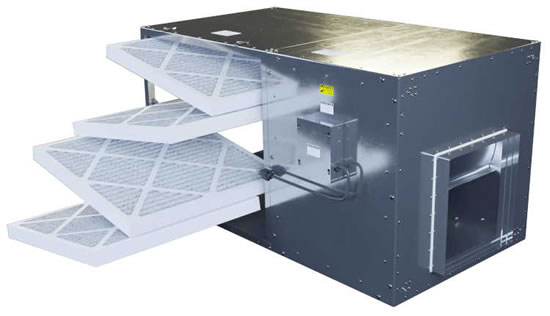

AH-4 MERV-13 Side View With Filters Partially Removed:

airscape ah-4 side view with intake

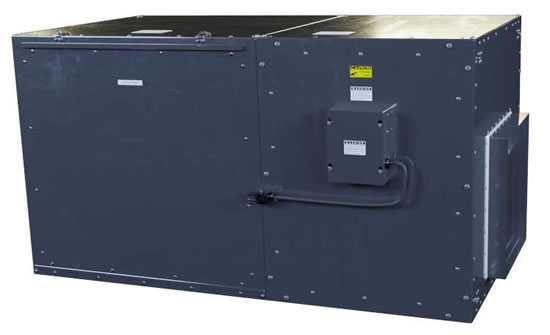

AH-4 MERV-13 Side View With Both Access Panels Installed:

airscape ah-4 side view with intake

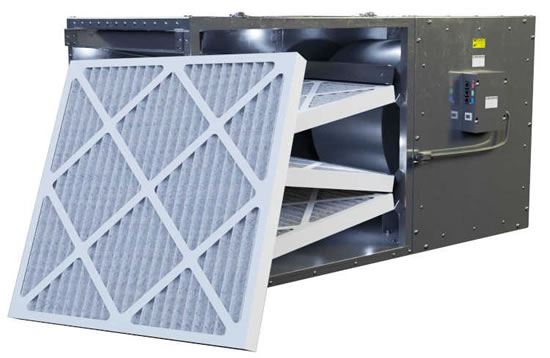

AH-4 MERV-13 Side View With Filter Removed:

airscape ah-4 side view with intake

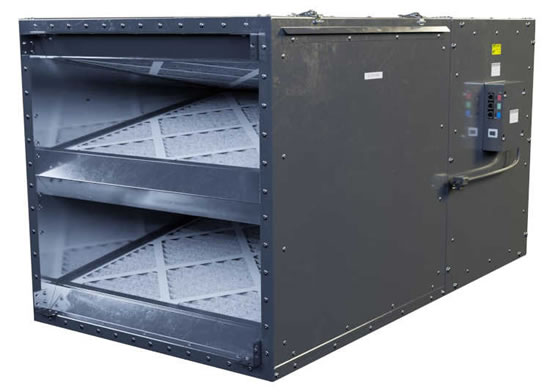

AH-4 MERV-13 Intake View With Side Access Panels Installed:

airscape ah-4 side view with intake
