Setra MRC Multi-Range Critical Differential Pressure Transmitter

Designed for Critical Environments. The Setra Model MRC is a multi-range sensor for use in lab, hospital, vivarium, pharmaceutical and other critical applications.

The First 0.75% Accuracy Multi-Range Ever - No other multi-range transducer product offers better than 1% FS accuracy which is required in most critical applications.  Setra's MRC is available down to 0.1" W.C with 0.75% accuracy.  The MRC has 5 selectable ranges and 3 selectable outputs, giving the installer the flexibility needed to make urgent adjustments on the job with the flip of a switch or jumper.

  • Field Configurable Duct Probe
  • 4 Digit LCD
  • Field Selectable Multi-Range
  • Field Selectable Multi-Output
  • Simple 5-Step Setup
  • Field Accessible Push Button Zero & Span
  • External Mounting Tabs & DINrail
  • Unregulated AC/DC Operating
Select From Available Models:

Configuration Options: Standard Base Mount Configuration [S]
Optional Universal Configuration [U]
Optional DIN Rail Configuration [D]
Optional Duct Probe Configuration [P]
Electrical Fitting Options: 1/2 inch Conduit Electrical Fitting with Calibration Certification [C]
PG9 Conduit Electrical Fitting with Calibration Certification [D]
Usually Ships: Limited quantities ship in 1-3 days. Please call us if you need a rush order.


Model Number:
MRCSC

Product Price (each): $ 337.23 Quantity:

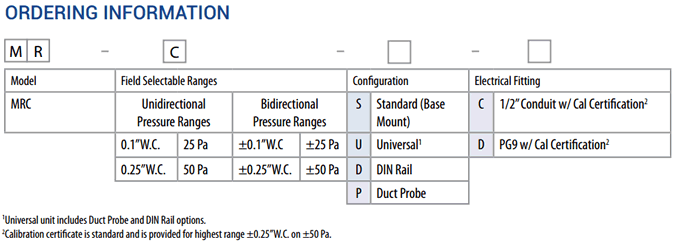

setra MRC pressure sensor ordering

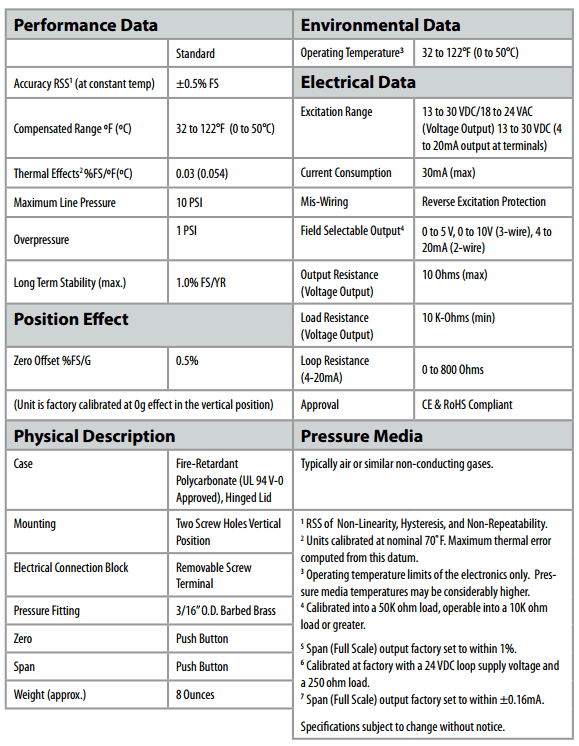

setra MRC pressure sensor specifications
