Canarm Tri-Lite HVLS High Volume and Low Speed Fans

Tri-Lite HVLS fans blanket a very large area by constantly moving air to create an expansive comfort zone. As a result, the big ceiling fan can create an evaporative cooling effect of three to four degrees Celsius throughout the facility. During the heating season, the Tri-Lite HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees Celsius from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.

• This cost-effective alternative to traditional high volume low speed fans
• Impressive efficiency is possible by this 3-bladed design that minimizes weight while providing continuous air movement throughout the area of influence.
• Nominal Power Consumption
• Inexpensive Operation
• Quiet Performance
• Minimal Maintenance

VFD required for operatioin.  Please call or email us with application questions.

model description usually ships price QTY

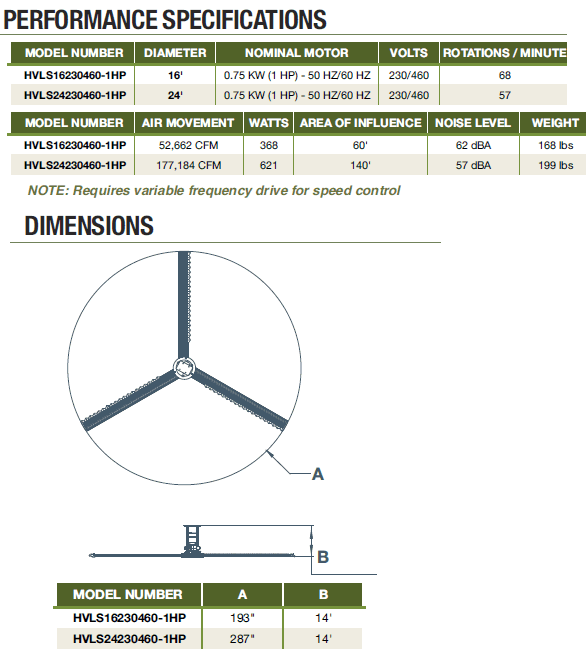

HVLS16230460-1HP Canarm Tri-Lite HVLS fan. 16 foot diameter. 0.75 KW (1 HP) - 50/60 Hz, 230/460 VAC motor. 52,662 CFM. 2-3 Weeks $5664.10
HVLS24230460-1HP Canarm Tri-Lite HVLS fan. 24 foot diameter. 0.75 KW (1 HP) - 50/60 Hz, 230/460 VAC motor. 177,184 CFM. 2-3 Weeks $6080.30
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



canarm leader hvls tri-lite series
