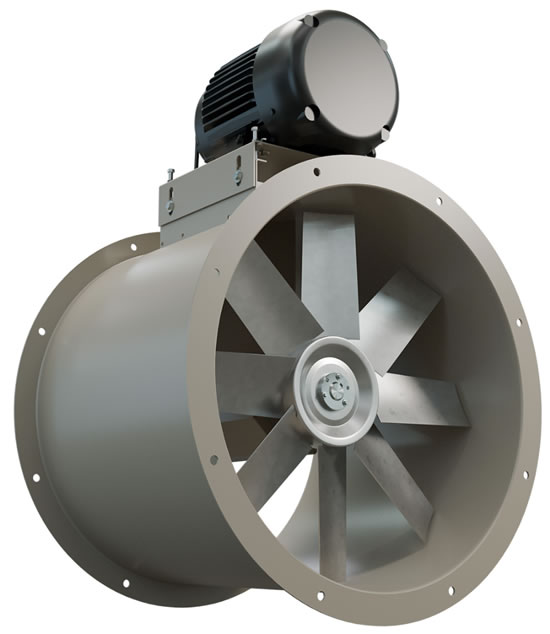

Canarm Leader HTA Belt Drive Tube Axial Duct Fans 3 Phase

Designed for duct connected applications such as paint booth exhaust, air make-up fans, general exhaust, etc.  The HTA series is used for moisture laden air with a maximum temperature of 200F (95C). 3 phase motor models.

• Adjustable motor base.
• Heavy duty pillow block bearings with moisturedisplacement collars.
• Extended lube lines with external grease fittings.
• TEFC motors are standard.
• Cast aluminum blades up to 48"; fans 54" & 60" have polypropylene reinforced fiberglass blades.
• Motor, belts, drives and bearings are isolated from air stream.

NOTE THAT VERTICAL AND HORIZONTAL SUPPORT CLIPS MUST BE REQUESTED AT THE TIME OF ORDER. THEY CANNOT BE RETROFITTED.

model description usually ships price QTY
HTA12T30033M Canarm/Leader HTA high heat belt drive tube axial duct fan. 12 inch size. 1/3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1239.30
HTA12T30050M Canarm/Leader HTA high heat belt drive tube axial duct fan. 12 inch size. 1/2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1251.70
HTA12T30075M Canarm/Leader HTA high heat belt drive tube axial duct fan. 12 inch size. 3/4 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1270.70
HTA12T30200M Canarm/Leader HTA high heat belt drive tube axial duct fan. 12 inch size. 2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1283.70
HTA15T30033M Canarm/Leader HTA high heat belt drive tube axial duct fan. 15 inch size. 1/3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1283.70
HTA15T30050M Canarm/Leader HTA high heat belt drive tube axial duct fan. 15 inch size. 1/2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1295.50
HTA15T30075M Canarm/Leader HTA high heat belt drive tube axial duct fan. 15 inch size. 3/4 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1329.30
HTA15T30100M Canarm/Leader HTA high heat belt drive tube axial duct fan. 15 inch size. 1 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1357.10
HTA15T30150M Canarm/Leader HTA high heat belt drive tube axial duct fan. 15 inch size. 1.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1514.00
HTA18T30050M Canarm/Leader HTA high heat belt drive tube axial duct fan. 18 inch size. 1/2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1381.40
HTA18T30075M Canarm/Leader HTA high heat belt drive tube axial duct fan. 18 inch size. 3/4 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1399.70
HTA18T30100M Canarm/Leader HTA high heat belt drive tube axial duct fan. 18 inch size. 1 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1429.90
HTA18T30150M Canarm/Leader HTA high heat belt drive tube axial duct fan. 18 inch size. 1.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1541.30
HTA18T30200M Canarm/Leader HTA high heat belt drive tube axial duct fan. 18 inch size. 2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1695.20
HTA24T30075M Canarm/Leader HTA high heat belt drive tube axial duct fan. 24 inch size. 3/4 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1695.20
HTA24T30100M Canarm/Leader HTA high heat belt drive tube axial duct fan. 24 inch size. 1 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1725.40
HTA24T30150M Canarm/Leader HTA high heat belt drive tube axial duct fan. 24 inch size. 1.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $1799.40
HTA24T30200M Canarm/Leader HTA high heat belt drive tube axial duct fan. 24 inch size. 2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2014.30
HTA24T30300M Canarm/Leader HTA high heat belt drive tube axial duct fan. 24 inch size. 3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2124.50
HTA30T30100M Canarm/Leader HTA high heat belt drive tube axial duct fan. 30 inch size. 1 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2114.40
HTA30T30150M Canarm/Leader HTA high heat belt drive tube axial duct fan. 30 inch size. 1.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2220.40
HTA30T30200M Canarm/Leader HTA high heat belt drive tube axial duct fan. 30 inch size. 2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2365.50
HTA30T30300M Canarm/Leader HTA high heat belt drive tube axial duct fan. 30 inch size. 3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2447.80
HTA30T30500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 30 inch size. 5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2545.50
HTA34T30150M Canarm/Leader HTA high heat belt drive tube axial duct fan. 34 inch size. 1.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2613.00
HTA34T30200M Canarm/Leader HTA high heat belt drive tube axial duct fan. 34 inch size. 2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2785.90
HTA34T30300M Canarm/Leader HTA high heat belt drive tube axial duct fan. 34 inch size. 3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2885.90
HTA34T30500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 34 inch size. 5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2983.00
HTA34T30750M Canarm/Leader HTA high heat belt drive tube axial duct fan. 34 inch size. 7.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $3162.40
HTA36T30200M Canarm/Leader HTA high heat belt drive tube axial duct fan. 36 inch size. 2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2785.90
HTA36T30300M Canarm/Leader HTA high heat belt drive tube axial duct fan. 36 inch size. 3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2885.90
HTA36T30500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 36 inch size. 5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2983.00
HTA36T30750M Canarm/Leader HTA high heat belt drive tube axial duct fan. 36 inch size. 7.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $3162.40
HTA42T30200M Canarm/Leader HTA high heat belt drive tube axial duct fan. 42 inch size. 2 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2852.80
HTA42T30300M Canarm/Leader HTA high heat belt drive tube axial duct fan. 42 inch size. 3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $2951.60
HTA42T30500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 42 inch size. 5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $3048.20
HTA42T30750M Canarm/Leader HTA high heat belt drive tube axial duct fan. 42 inch size. 7.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $3220.50
HTA42T31000M Canarm/Leader HTA high heat belt drive tube axial duct fan. 42 inch size. 10 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $3442.50
HTA48T30300M Canarm/Leader HTA high heat belt drive tube axial duct fan. 48 inch size. 3 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $4286.30
HTA48T30500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 48 inch size. 5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $4386.90
HTA48T30750M Canarm/Leader HTA high heat belt drive tube axial duct fan. 48 inch size. 7.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $4563.90
HTA48T31000M Canarm/Leader HTA high heat belt drive tube axial duct fan. 48 inch size. 10 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $4756.40
HTA48T31500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 48 inch size. 15 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $5624.40
HTA54T30500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 54 inch size. 5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $6678.90
HTA54T30750M Canarm/Leader HTA high heat belt drive tube axial duct fan. 54 inch size. 7.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $6853.00
HTA54T31000M Canarm/Leader HTA high heat belt drive tube axial duct fan. 54 inch size. 10 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $7043.70
HTA54T31500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 54 inch size. 15 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $7928.90
HTA60T30750M Canarm/Leader HTA high heat belt drive tube axial duct fan. 60 inch size. 7.5 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $7476.50
HTA60T31000M Canarm/Leader HTA high heat belt drive tube axial duct fan. 60 inch size. 10 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $7628.70
HTA60T31500M Canarm/Leader HTA high heat belt drive tube axial duct fan. 60 inch size. 15 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $8503.80
HTA60T32000M Canarm/Leader HTA high heat belt drive tube axial duct fan. 60 inch size. 20 Hp, 3 Phase, 208-230/460V motor. 4 Weeks $8882.20
SPL12 Canarm/Leader accessory. Support Legs for 12 inch fans. Must be ordered with fan. 2-3 weeks $139.10
SPL15 Canarm/Leader accessory. Support Legs for 15 inch fans. Must be ordered with fan. 2-3 weeks $157.50
SPL18 Canarm/Leader accessory. Support Legs for 18 inch fans. Must be ordered with fan. 2-3 weeks $171.10
SPL24 Canarm/Leader accessory. Support Legs for 24 inch fans. Must be ordered with fan. 2-3 weeks $189.50
SPL30 Canarm/Leader accessory. Support Legs for 30 inch fans. Must be ordered with fan. 2-3 weeks $239.20
SPL34 Canarm/Leader accessory. Support Legs for 34 inch fans. Must be ordered with fan. 2-3 weeks $248.10
SPL36 Canarm/Leader accessory. Support Legs for 36 inch fans. Must be ordered with fan. 2-3 weeks $261.70
SPL42 Canarm/Leader accessory. Support Legs for 42 inch fans. Must be ordered with fan. 2-3 weeks $283.00
SPL48 Canarm/Leader accessory. Support Legs for 48 inch fans. Must be ordered with fan. 2-3 weeks $355.90
SPL54 Canarm/Leader accessory. Support Legs for 54 inch fans. Must be ordered with fan. 2-3 weeks $386.10
SPL60 Canarm/Leader accessory. Support Legs for 60 inch fans. Must be ordered with fan. 2-3 weeks $419.20
ID12 Canarm/Leader accessory. Inspection doors for 12 inch fans. Must be ordered with fan. 2-3 weeks $130.30
ID15 Canarm/Leader accessory. Inspection doors for 15 inch fans. Must be ordered with fan. 2-3 weeks $132.60
ID18 Canarm/Leader accessory. Inspection doors for 18 inch fans. Must be ordered with fan. 2-3 weeks $132.60
ID24 Canarm/Leader accessory. Inspection doors for 24 inch fans. Must be ordered with fan. 2-3 weeks $132.60
ID30 Canarm/Leader accessory. Inspection doors for 30 inch fans. Must be ordered with fan. 2-3 weeks $156.90
ID34 Canarm/Leader accessory. Inspection doors for 34 inch fans. Must be ordered with fan. 2-3 weeks $156.90
ID36 Canarm/Leader accessory. Inspection doors for 36 inch fans. Must be ordered with fan. 2-3 weeks $156.90
ID42 Canarm/Leader accessory. Inspection doors for 42 inch fans. Must be ordered with fan. 2-3 weeks $183.60
ID48 Canarm/Leader accessory. Inspection doors for 48 inch fans. Must be ordered with fan. 2-3 weeks $191.80
ID54 Canarm/Leader accessory. Inspection doors for 54 inch fans. Must be ordered with fan. 2-3 weeks $200.70
ID60 Canarm/Leader accessory. Inspection doors for 60 inch fans. Must be ordered with fan. 2-3 weeks $200.70
CR12P Canarm/Leader accessory. Companion rings for 12 inch fans. 2-3 weeks $29.00
CR15P Canarm/Leader accessory. Companion rings for 15 inch fans. 2-3 weeks $41.40
CR18P Canarm/Leader accessory. Companion rings for 18 inch fans. 2-3 weeks $47.40
CR24P Canarm/Leader accessory. Companion rings for 24 inch fans. 2-3 weeks $58.00
CR30P Canarm/Leader accessory. Companion rings for 30 inch fans. 2-3 weeks $86.40
CR34P Canarm/Leader accessory. Companion rings for 34 inch fans. 2-3 weeks $110.10
CR36P Canarm/Leader accessory. Companion rings for 36 inch fans. 2-3 weeks $110.10
CR42P Canarm/Leader accessory. Companion rings for 42 inch fans. 2-3 weeks $120.20
CR48P Canarm/Leader accessory. Companion rings for 48 inch fans. 2-3 weeks $162.20
CR54P Canarm/Leader accessory. Companion rings for 54 inch fans. 2-3 weeks $172.90
CR60P Canarm/Leader accessory. Companion rings for 60 inch fans. 2-3 weeks $183.60
add to basket
