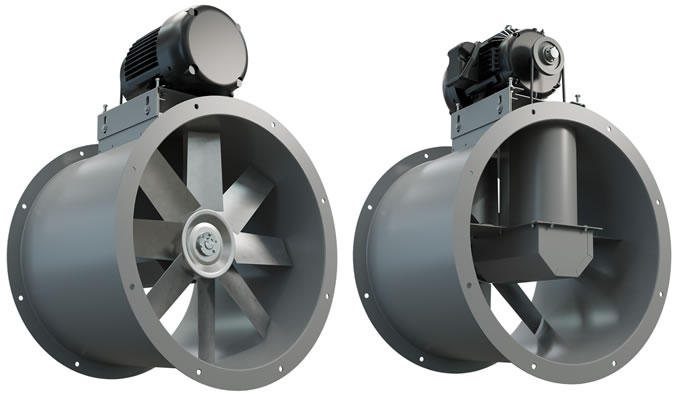

Canarm Leader BTA Belt Drive Tube Axial Duct Fans 1 Phase

Designed for duct connected applications such as paint booth exhaust, air make-up fans, general exhaust, etc.  The BTA series is used for clean, dry air with a maximum temperature of 200F (95C). 1 phase motor models.

• Adjustable motor base.
• Heavy duty pillow block ball bearings with high temperature grease.
• Extended lube lines with external grease fittings.
• TEFC motors are standard.
• Cast aluminum blades up to 48"; fans 54" & 60" have polypropylene reinforced fiberglass blades.
• Motor, belts, drives and bearings are isolated from air stream.

NOTE THAT VERTICAL AND HORIZONTAL SUPPORT CLIPS MUST BE REQUESTED AT THE TIME OF ORDER. THEY CANNOT BE RETROFITTED.

model description usually ships price QTY
BTA12LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 12 inch size. Less motor and less drives. 2-3 Weeks $881.60
BTA12T10033 Canarm/Leader BTA belt drive tube axial duct fan. 12 inch size. 1/3 Hp, 1 Phase, 115V motor. 2-3 Weeks $980.50
BTA12T10050 Canarm/Leader BTA belt drive tube axial duct fan. 12 inch size. 1/2 Hp, 1 Phase, 115V motor. 2-3 Weeks $1006.00
BTA12T10075 Canarm/Leader BTA belt drive tube axial duct fan. 12 inch size. 3/4 Hp, 1 Phase, 115V motor. 2-3 Weeks $1020.80
BTA12T10200 Canarm/Leader BTA belt drive tube axial duct fan. 12 inch size. 2 Hp, 1 Phase, 115V motor. 2-3 Weeks $1052.80
BTA15LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 15 inch size. Less motor and less drives. 2-3 Weeks $940.90
BTA15T10033 Canarm/Leader BTA belt drive tube axial duct fan. 15 inch size. 1/3 Hp, 1 Phase, 115V motor. 2-3 Weeks $1013.10
BTA15T10050 Canarm/Leader BTA belt drive tube axial duct fan. 15 inch size. 1/2 Hp, 1 Phase, 115V motor. 2-3 Weeks $1040.90
BTA15T10075 Canarm/Leader BTA belt drive tube axial duct fan. 15 inch size. 3/4 Hp, 1 Phase, 115V motor. 2-3 Weeks $1103.70
BTA15T10100 Canarm/Leader BTA belt drive tube axial duct fan. 15 inch size. 1 Hp, 1 Phase, 115V motor. 2-3 Weeks $1134.50
BTA15T10150 Canarm/Leader BTA belt drive tube axial duct fan. 15 inch size. 1.5 Hp, 1 Phase, 115V motor. 2-3 Weeks $1228.60
BTA18LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 18 inch size. Less motor and less drives. 2-3 Weeks $997.70
BTA18T10050 Canarm/Leader BTA belt drive tube axial duct fan. 18 inch size. 1/2 Hp, 1 Phase, 115V motor. 2-3 Weeks $1106.10
BTA18T10075 Canarm/Leader BTA belt drive tube axial duct fan. 18 inch size. 3/4 Hp, 1 Phase, 115V motor. 2-3 Weeks $1158.80
BTA18T10100 Canarm/Leader BTA belt drive tube axial duct fan. 18 inch size. 1 Hp, 1 Phase, 115V motor. 2-3 Weeks $1188.90
BTA18T10150 Canarm/Leader BTA belt drive tube axial duct fan. 18 inch size. 1.5 Hp, 1 Phase, 115V motor. 2-3 Weeks $1291.40
BTA18T10200 Canarm/Leader BTA belt drive tube axial duct fan. 18 inch size. 2 Hp, 1 Phase, 115V motor. 2-3 Weeks $1421.60
BTA24LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 24 inch size. Less motor and less drives. 2-3 Weeks $1278.40
BTA24T10075 Canarm/Leader BTA belt drive tube axial duct fan. 24 inch size. 3/4 Hp, 1 Phase, 115V motor. 2-3 Weeks $1384.90
BTA24T10100 Canarm/Leader BTA belt drive tube axial duct fan. 24 inch size. 1 Hp, 1 Phase, 115V motor. 2-3 Weeks $1416.90
BTA24T10150 Canarm/Leader BTA belt drive tube axial duct fan. 24 inch size. 1.5 Hp, 1 Phase, 115V motor. 2-3 Weeks $1492.70
BTA24T10200 Canarm/Leader BTA belt drive tube axial duct fan. 24 inch size. 2 Hp, 1 Phase, 115V motor. 2-3 Weeks $1666.20
BTA24T10300 Canarm/Leader BTA belt drive tube axial duct fan. 24 inch size. 3 Hp, 1 Phase, 115V motor. 2-3 Weeks $1875.80
BTA30LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 30 inch size. Less motor and less drives. 4 Weeks $1555.50
BTA30T10100 Canarm/Leader BTA belt drive tube axial duct fan. 30 inch size. 1 Hp, 1 Phase, 115V motor. 4 Weeks $1716.50
BTA30T10150 Canarm/Leader BTA belt drive tube axial duct fan. 30 inch size. 1.5 Hp, 1 Phase, 115V motor. 4 Weeks $1816.60
BTA30T10200 Canarm/Leader BTA belt drive tube axial duct fan. 30 inch size. 2 Hp, 1 Phase, 115V motor. 4 Weeks $1936.80
BTA30T10300 Canarm/Leader BTA belt drive tube axial duct fan. 30 inch size. 3 Hp, 1 Phase, 115V motor. 4 Weeks $2126.30
BTA30T10500 Canarm/Leader BTA belt drive tube axial duct fan. 30 inch size. 5 Hp, 1 Phase, 115V motor. 4 Weeks $2305.10
BTA34LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 34 inch size. Less motor and less drives. 4 Weeks $2002.50
BTA34T10150 Canarm/Leader BTA belt drive tube axial duct fan. 34 inch size. 1.5 Hp, 1 Phase, 115V motor 4 Weeks $2117.40
BTA34T10200 Canarm/Leader BTA belt drive tube axial duct fan. 34 inch size. 2 Hp, 1 Phase, 115V motor. 4 Weeks $2260.10
BTA34T10300 Canarm/Leader BTA belt drive tube axial duct fan. 34 inch size. 3 Hp, 1 Phase, 115V motor. 4 Weeks $2463.20
BTA34T10500 Canarm/Leader BTA belt drive tube axial duct fan. 34 inch size. 5 Hp, 1 Phase, 115V motor. 4 Weeks $2642.60
BTA34T10750 Canarm/Leader BTA belt drive tube axial duct fan. 34 inch size. 7.5 Hp, 1 Phase, 115V motor. 4 Weeks $3023.30
BTA36LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 36 inch size. Less motor and less drives. 4 Weeks $2002.50
BTA36T10200 Canarm/Leader BTA belt drive tube axial duct fan. 36 inch size. 2 Hp, 1 Phase, 115V motor. 4 Weeks $2260.10
BTA36T10300 Canarm/Leader BTA belt drive tube axial duct fan. 36 inch size. 3 Hp, 1 Phase, 115V motor. 4 Weeks $2463.20
BTA36T10500 Canarm/Leader BTA belt drive tube axial duct fan. 36 inch size. 5 Hp, 1 Phase, 115V motor. 4 Weeks $2642.60
BTA36T10750 Canarm/Leader BTA belt drive tube axial duct fan. 36 inch size. 7.5 Hp, 1 Phase, 115V motor. 4 Weeks $3023.30
BTA42LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 42 inch size. Less motor and less drives. 4 Weeks $2057.60
BTA42T10200 Canarm/Leader BTA belt drive tube axial duct fan. 42 inch size. 2 Hp, 1 Phase, 115V motor. 4 Weeks $2310.40
BTA42T10300 Canarm/Leader BTA belt drive tube axial duct fan. 42 inch size. 3 Hp, 1 Phase, 115V motor. 4 Weeks $2513.50
BTA42T10500 Canarm/Leader BTA belt drive tube axial duct fan. 42 inch size. 5 Hp, 1 Phase, 115V motor. 4 Weeks $2692.30
BTA42T10750 Canarm/Leader BTA belt drive tube axial duct fan. 42 inch size. 7.5 Hp, 1 Phase, 115V motor. 4 Weeks $3068.90
BTA42T11000 Canarm/Leader BTA belt drive tube axial duct fan. 42 inch size. 10 Hp, 1 Phase, 115V motor. 4 Weeks $4037.00
BTA48LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 48 inch size. Less motor and less drives. 4 Weeks $3594.10
BTA48T10300 Canarm/Leader BTA belt drive tube axial duct fan. 48 inch size. 3 Hp, 1 Phase, 115V motor. 4 Weeks $3539.60
BTA48T10500 Canarm/Leader BTA belt drive tube axial duct fan. 48 inch size. 5 Hp, 1 Phase, 115V motor. 4 Weeks $3720.20
BTA48T10750 Canarm/Leader BTA belt drive tube axial duct fan. 48 inch size. 7.5 Hp, 1 Phase, 115V motor. 4 Weeks $4103.30
BTA48T11000 Canarm/Leader BTA belt drive tube axial duct fan. 48 inch size. 10 Hp, 1 Phase, 115V motor. 4 Weeks $5047.10
BTA54LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 54 inch size. Less motor and less drives. 4 Weeks $5417.80
BTA54T10500 Canarm/Leader BTA belt drive tube axial duct fan. 54 inch size. 5 Hp, 1 Phase, 115V motor. 4 Weeks $5484.70
BTA54T10750 Canarm/Leader BTA belt drive tube axial duct fan. 54 inch size. 7.5 Hp, 1 Phase, 115V motor. 4 Weeks $5862.40
BTA54T11000 Canarm/Leader BTA belt drive tube axial duct fan. 54 inch size. 10 Hp, 1 Phase, 115V motor. 4 Weeks $6805.70
BTA60LMLD+ Canarm/Leader BTA belt drive tube axial duct fan. 60 inch size. Less motor and less drives. 4 Weeks $5953.00
BTA60T10750 Canarm/Leader BTA belt drive tube axial duct fan. 60 inch size. 7.5 Hp, 1 Phase, 115V motor. 4 Weeks $6339.70
BTA60T11000 Canarm/Leader BTA belt drive tube axial duct fan. 60 inch size. 10 Hp, 1 Phase, 115V motor. 4 Weeks $7256.80
SPL12 Canarm/Leader accessory. Support Legs for 12 inch fans. Must be ordered with fan. 2-3 weeks $139.10
SPL15 Canarm/Leader accessory. Support Legs for 15 inch fans. Must be ordered with fan. 2-3 weeks $157.50
SPL18 Canarm/Leader accessory. Support Legs for 18 inch fans. Must be ordered with fan. 2-3 weeks $171.10
SPL24 Canarm/Leader accessory. Support Legs for 24 inch fans. Must be ordered with fan. 2-3 weeks $189.50
SPL30 Canarm/Leader accessory. Support Legs for 30 inch fans. Must be ordered with fan. 2-3 weeks $239.20
SPL34 Canarm/Leader accessory. Support Legs for 34 inch fans. Must be ordered with fan. 2-3 weeks $248.10
SPL36 Canarm/Leader accessory. Support Legs for 36 inch fans. Must be ordered with fan. 2-3 weeks $261.70
SPL42 Canarm/Leader accessory. Support Legs for 42 inch fans. Must be ordered with fan. 2-3 weeks $283.00
SPL48 Canarm/Leader accessory. Support Legs for 48 inch fans. Must be ordered with fan. 2-3 weeks $355.90
SPL54 Canarm/Leader accessory. Support Legs for 54 inch fans. Must be ordered with fan. 2-3 weeks $386.10
SPL60 Canarm/Leader accessory. Support Legs for 60 inch fans. Must be ordered with fan. 2-3 weeks $419.20
ID12 Canarm/Leader accessory. Inspection doors for 12 inch fans. Must be ordered with fan. 2-3 weeks $130.30
ID15 Canarm/Leader accessory. Inspection doors for 15 inch fans. Must be ordered with fan. 2-3 weeks $132.60
ID18 Canarm/Leader accessory. Inspection doors for 18 inch fans. Must be ordered with fan. 2-3 weeks $132.60
ID24 Canarm/Leader accessory. Inspection doors for 24 inch fans. Must be ordered with fan. 2-3 weeks $132.60
ID30 Canarm/Leader accessory. Inspection doors for 30 inch fans. Must be ordered with fan. 2-3 weeks $156.90
ID34 Canarm/Leader accessory. Inspection doors for 34 inch fans. Must be ordered with fan. 2-3 weeks $156.90
ID36 Canarm/Leader accessory. Inspection doors for 36 inch fans. Must be ordered with fan. 2-3 weeks $156.90
ID42 Canarm/Leader accessory. Inspection doors for 42 inch fans. Must be ordered with fan. 2-3 weeks $183.60
ID48 Canarm/Leader accessory. Inspection doors for 48 inch fans. Must be ordered with fan. 2-3 weeks $191.80
ID54 Canarm/Leader accessory. Inspection doors for 54 inch fans. Must be ordered with fan. 2-3 weeks $200.70
ID60 Canarm/Leader accessory. Inspection doors for 60 inch fans. Must be ordered with fan. 2-3 weeks $200.70
CR12P Canarm/Leader accessory. Companion rings for 12 inch fans. 2-3 weeks $29.00
CR15P Canarm/Leader accessory. Companion rings for 15 inch fans. 2-3 weeks $41.40
CR18P Canarm/Leader accessory. Companion rings for 18 inch fans. 2-3 weeks $47.40
CR24P Canarm/Leader accessory. Companion rings for 24 inch fans. 2-3 weeks $58.00
CR30P Canarm/Leader accessory. Companion rings for 30 inch fans. 2-3 weeks $86.40
CR34P Canarm/Leader accessory. Companion rings for 34 inch fans. 2-3 weeks $110.10
CR36P Canarm/Leader accessory. Companion rings for 36 inch fans. 2-3 weeks $110.10
CR42P Canarm/Leader accessory. Companion rings for 42 inch fans. 2-3 weeks $120.20
CR48P Canarm/Leader accessory. Companion rings for 48 inch fans. 2-3 weeks $162.20
CR54P Canarm/Leader accessory. Companion rings for 54 inch fans. 2-3 weeks $172.90
CR60P Canarm/Leader accessory. Companion rings for 60 inch fans. 2-3 weeks $183.60
add to basket

real-time shipping quotes are available before checkout on your shopping cart page



canarm leader bta series

Do you have questions about the products on this page?

Click on the ? image on the left or this link to ask us your questions!
#1 Q:   Can you direct me to the cfm ratings for axial duct fans please.
A:   The catalog under the Links Tab has the full CFM ratings. https://www.hvacquick.com/catalog_files/Leader_BTA_WTA_HTA_Catalog.pdf

       Asked on 2018-08-18 by Shane
#2 Q:   BTA30T10500, Is this an explosion proof motor?
A:   No, TEFC standard motors on this series.

       Asked on 2017-12-29 by joshua
