S&P LCE Sidewall Propeller Exhaust Fans - 1 PHASE

S&P LCE Sidewall Propeller Exhaust Fans - 1 PHASE

Series LCE Sidewall belt-drive propeller exhaust fan is a high capacity belt driven propeller fan. Its primary application is the exhaust of large volumes of air at relatively low static pressures from commercial, light industrial and agricultural buildings such as manufacturing and assembly plants, warehouses, parking garages, gymnasiums, equipment rooms, distribution centers, poultry and greenhouses. 1 PHASE MOTOR MODELS.

List price includes assembled fan, motor & drives mounted, UL-705 listing label. Standard single phase motors 1/2 HP & smaller are 115V ONLY, 3/4 HP & larger are 115/208-230V Tri Voltage. Wall housing packs are sold separate and must be purchased with the fan (add wall housing price to price of the bare fan).

Accessories are listed below the fans at the bottom of the page.

model description usually ships price QTY
LCE20MH1S S&P LCE20 sidewall BD propeller exhaust fan. 1/4 Hp, 115/1/60 motor. 955 RPM. Call/Email for leadtime $754.70
LCE20PH1S S&P LCE20 sidewall BD propeller exhaust fan. 1/3 Hp, 115/1/60 motor. 1050 RPM. Call/Email for leadtime $772.10
LCE20QH1S S&P LCE20 sidewall BD propeller exhaust fan. 1/2 Hp, 115/1/60 motor. 1180 RPM. Call/Email for leadtime $887.40
LCE20RH1S S&P LCE20 sidewall BD propeller exhaust fan. 3/4 Hp, 115/208-230V/1/60 motor. 1350 RPM. Call/Email for leadtime $931.60
LCE24MH1S S&P LCE24 sidewall BD propeller exhaust fan. 1/4 Hp, 115/1/60 motor. 600 RPM. Call/Email for leadtime $836.10
LCE24PH1S S&P LCE24 sidewall BD propeller exhaust fan. 1/3 Hp, 115/1/60 motor. 660 RPM. Call/Email for leadtime $856.60
LCE24QH1S S&P LCE24 sidewall BD propeller exhaust fan. 1/2 Hp, 115/1/60 motor. 760 RPM. Call/Email for leadtime $965.50
LCE24RH1S S&P LCE24 sidewall BD propeller exhaust fan. 3/4 Hp, 115/208-230V/1/60 motor. 875 RPM. Call/Email for leadtime $1001.10
LCE24SH1S S&P LCE24 sidewall BD propeller exhaust fan. 1 Hp, 115/208-230V/1/60 motor. 950 RPM. Call/Email for leadtime $1163.70
LCE24TH1S S&P LCE24 sidewall BD propeller exhaust fan. 1.5 Hp, 115/208-230V/1/60 motor. 1100 RPM. Call/Email for leadtime $1281.30
LCE30MH1S S&P LCE30 sidewall BD propeller exhaust fan. 1/4 Hp, 115/1/60 motor. 450 RPM. Call/Email for leadtime $921.30
LCE30PH1S S&P LCE30 sidewall BD propeller exhaust fan. 1/3 Hp, 115/1/60 motor. 495 RPM. Call/Email for leadtime $938.70
LCE30QH1S S&P LCE30 sidewall BD propeller exhaust fan. 1/2 Hp, 115/1/60 motor. 565 RPM. Call/Email for leadtime $1030.30
LCE30RH1S S&P LCE30 sidewall BD propeller exhaust fan. 3/4 Hp, 115/208-230V/1/60 motor. 650 RPM. Call/Email for leadtime $1069.70
LCE30SH1S S&P LCE30 sidewall BD propeller exhaust fan. 1 Hp, 115/208-230V/1/60 motor. 715 RPM. Call/Email for leadtime $1231.60
LCE30TH1S S&P LCE30 sidewall BD propeller exhaust fan. 1.5 Hp, 115/208-230V/1/60 motor. 815 RPM. Call/Email for leadtime $1338.20
LCE36PH1S S&P LCE36 sidewall BD propeller exhaust fan. 1/3 Hp, 115/1/60 motor. 390 RPM. Call/Email for leadtime $945.00
LCE36QH1S S&P LCE36 sidewall BD propeller exhaust fan. 1/2 Hp, 115/1/60 motor. 440 RPM. Call/Email for leadtime $1043.70
LCE36RH1S S&P LCE36 sidewall BD propeller exhaust fan. 3/4 Hp, 115/208-230V/1/60 motor. 505 RPM. Call/Email for leadtime $1091.10
LCE36SH1S S&P LCE36 sidewall BD propeller exhaust fan. 1 Hp, 115/208-230V/1/60 motor. 555 RPM. Call/Email for leadtime $1235.50
LCE36TH1S S&P LCE36 sidewall BD propeller exhaust fan. 1.5 Hp, 115/208-230V/1/60 motor. 635 RPM. Call/Email for leadtime $1350.80
LCE36VH1S S&P LCE36 sidewall BD propeller exhaust fan. 2 Hp, 115/208-230V/1/60 motor. 695 RPM. Call/Email for leadtime $1481.80
LCE42PH1S S&P LCE42 sidewall BD propeller exhaust fan. 1/3 Hp, 115/1/60 motor. 305 RPM. Call/Email for leadtime $1151.10
LCE42QH1S S&P LCE42 sidewall BD propeller exhaust fan. 1/2 Hp, 115/1/60 motor. 345 RPM. Call/Email for leadtime $1246.60
LCE42RH1S S&P LCE42 sidewall BD propeller exhaust fan. 3/4 Hp, 115/208-230V/1/60 motor. 395 RPM. Call/Email for leadtime $1260.80
LCE42SH1S S&P LCE42 sidewall BD propeller exhaust fan. 1 Hp, 115/208-230V/1/60 motor. 435 RPM. Call/Email for leadtime $1402.10
LCE42TH1S S&P LCE42 sidewall BD propeller exhaust fan. 1.5 Hp, 115/208-230V/1/60 motor. 500 RPM. Call/Email for leadtime $1518.20
LCE42VH1S S&P LCE42 sidewall BD propeller exhaust fan. 2 Hp, 115/208-230V/1/60 motor. 550 RPM. Call/Email for leadtime $1644.50
LCE48QH1S S&P LCE48 sidewall BD propeller exhaust fan. 1/2 Hp, 115/1/60 motor. 290 RPM. Call/Email for leadtime $1328.70
LCE48RH1S S&P LCE48 sidewall BD propeller exhaust fan. 3/4 Hp, 115/208-230V/1/60 motor. 330 RPM. Call/Email for leadtime $1355.50
LCE48SH1S S&P LCE48 sidewall BD propeller exhaust fan. 1 Hp, 115/208-230V/1/60 motor. 365 RPM. Call/Email for leadtime $1481.80
LCE48TH1S S&P LCE48 sidewall BD propeller exhaust fan. 1.5 Hp, 115/208-230V/1/60 motor. 415 RPM. Call/Email for leadtime $1590.80
LCE48VH1S S&P LCE48 sidewall BD propeller exhaust fan. 2 Hp, 115/208-230V/1/60 motor. 455 RPM. Call/Email for leadtime $1732.90
LCE54RH1S S&P LCE54 sidewall BD propeller exhaust fan. 3/4 Hp, 115/208-230V/1/60 motor. 270 RPM. Call/Email for leadtime $1833.20
LCE54SH1S S&P LCE54 sidewall BD propeller exhaust fan. 1 Hp, 115/208-230V/1/60 motor. 295 RPM. Call/Email for leadtime $1991.80
LCE54TH1S S&P LCE54 sidewall BD propeller exhaust fan. 1.5 Hp, 115/208-230V/1/60 motor. 340 RPM. Call/Email for leadtime $2083.40
LCE54VH1S S&P LCE54 sidewall BD propeller exhaust fan. 2 Hp, 115/208-230V/1/60 motor. 370 RPM. Call/Email for leadtime $2227.10
LCE60SH1S S&P LCE60 sidewall BD propeller exhaust fan. 1 Hp, 115/208-230V/1/60 motor. 265 RPM. Call/Email for leadtime $2003.70
LCE60TH1S S&P LCE60 sidewall BD propeller exhaust fan. 1.5 Hp, 115/208-230V/1/60 motor. 300 RPM. Call/Email for leadtime $2109.50
LCE60VH1S S&P LCE60 sidewall BD propeller exhaust fan. 2 Hp, 115/208-230V/1/60 motor. 335 RPM. Call/Email for leadtime $2256.30
WHPLCE20 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 20 size. 5-6 Weeks $477.60
WHPLCE24 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 24 size. 5-6 Weeks $585.80
WHPLCE30 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 30 size. 5-6 Weeks $630.00
WHPLCE36 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 36 size. 5-6 Weeks $847.10
WHPLCE42 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 42 size. 5-6 Weeks $1041.30
WHPLCE48 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 48 size. 5-6 Weeks $1082.40
WHPLCE54 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 54 size. 5-6 Weeks $1637.40
WHPLCE60 S&P wall housing pack (assembled). Includes wall sleeve, gravity damper, and guard. 60 size. 5-6 Weeks $1785.80
WHPLCE20M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 20 size. 5-6 Weeks $819.50
WHPLCE24M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 24 size. 5-6 Weeks $923.70
WHPLCE30M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 30 size. 5-6 Weeks $970.30
WHPLCE36M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 36 size. 5-6 Weeks $1295.50
WHPLCE42M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 42 size. 5-6 Weeks $1490.50
WHPLCE48M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 48 size. 5-6 Weeks $1526.80
WHPLCE54M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 54 size. 5-6 Weeks $2085.00
WHPLCE60M S&P wall housing pack (assembled). Includes wall sleeve, MOTORIZED damper, and guard. 60 size. 5-6 Weeks $2234.20
EAS20 S&P alum wall mounted gravity damper. 20X20 inch size. 5-6 Weeks $151.60
EAS26 S&P alum wall mounted gravity damper. 26X26 inch size. 5-6 Weeks $169.70
EAS32 S&P alum wall mounted gravity damper. 32X32 inch size. 5-6 Weeks $205.30
EAS38 S&P alum wall mounted gravity damper. 38X38 inch size. 5-6 Weeks $279.50
EAS44 S&P alum wall mounted gravity damper. 44X44 inch size. 5-6 Weeks $386.80
EAS50 S&P alum wall mounted gravity damper. 50X50 inch size. 5-6 Weeks $444.50
EAS1232MTR S&P damper motor option for 1 panel shutters. 115/230 VAC 60 Hz power open, spring return motor. Ships loose. 5-6 Weeks $224.20
EAS3850MTR S&P damper motor option. 115/230 VAC 60 Hz power open, spring return motor. For 42x42 and 48x48 shutters. Ships loose. 5-6 Weeks $295.30
MA220 S&P damper motor. Ships loose. 2-3 Days $293.70
5520.8.20KDS S&P rainhood for exhaust fans. 20 inch. KD. 2-3 Days $232.10
5520.8.24KDS S&P rainhood for exhaust fans. 24 inch. KD. 2-3 Days $262.90
5520.8.30KDS S&P rainhood for exhaust fans. 30 inch. KD. 2-3 Days $300.00
5520.8.36KDS S&P rainhood for exhaust fans. 36 inch. KD. 2-3 Days $311.10
5520.8.42KDS S&P rainhood for exhaust fans. 42 inch. KD. 2-3 Days $381.30
5520.8.48KDS S&P rainhood for exhaust fans. 48 inch. KD. 2-3 Days $528.20
5520.8.54KDS S&P rainhood for exhaust fans. 54 inch. KD. 2 Weeks $828.90
5520.8.60KDS S&P rainhood for exhaust fans. 60 inch. KD. 2 Weeks $1103.70
5521.5.20RHS S&P rainhood birdscreen for exhaust fans. 20 inch. 2-3 Days $110.50
5521.5.24RHS S&P rainhood birdscreen for exhaust fans. 24 inch. 2-3 Days $112.10
5521.5.30RHS S&P rainhood birdscreen for exhaust fans. 30 inch. 2-3 Days $113.70
5521.5.36RHS S&P rainhood birdscreen for exhaust fans. 36 inch. 2-3 Days $115.30
5521.5.42RHS S&P rainhood birdscreen for exhaust fans. 42 inch. 2-3 Days $142.10
5521.5.48RHS S&P rainhood birdscreen for exhaust fans. 48 inch. 2-3 Days $146.10
5521.5.54RHS S&P rainhood birdscreen for exhaust fans. 54 inch. 2 Weeks $354.50
5521.5.60RHS S&P rainhood birdscreen for exhaust fans. 60 inch. 2 Weeks $356.10
2502.10 S&P electrical disconnect switch. 115-208-230, 1ph. 2 Hp max. Open NEMA 1. 2-3 Days $64.70
90012002R1 S&P electrical disconnect switch. 115-208-230, 1ph. 2 Hp max. Raintight NEMA 3. 2-3 Days $134.20
add to basket

real-time shipping quotes are available before checkout on your shopping cart page

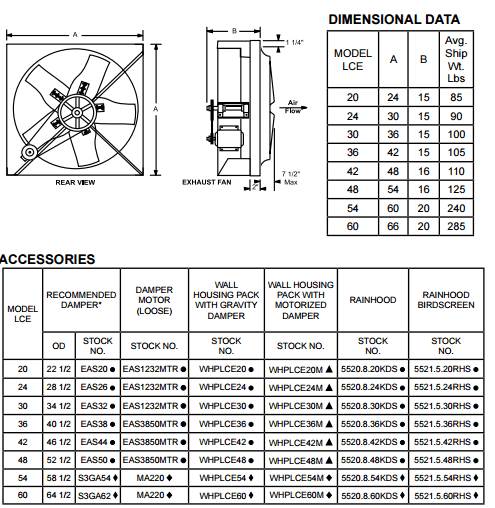

S&P LCE Dimensions

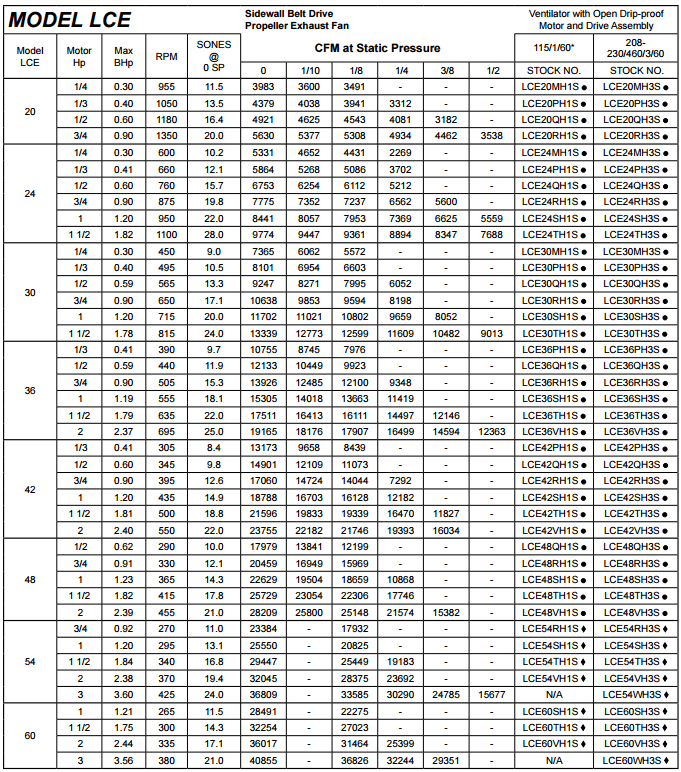

S&P LCE Specifications
